Spare parts > STIGA > Lawn Tractor > TORNADO PRO 9121 XWSY TORNADO PRO 9121 XWSY (2020) > Steering
Back to

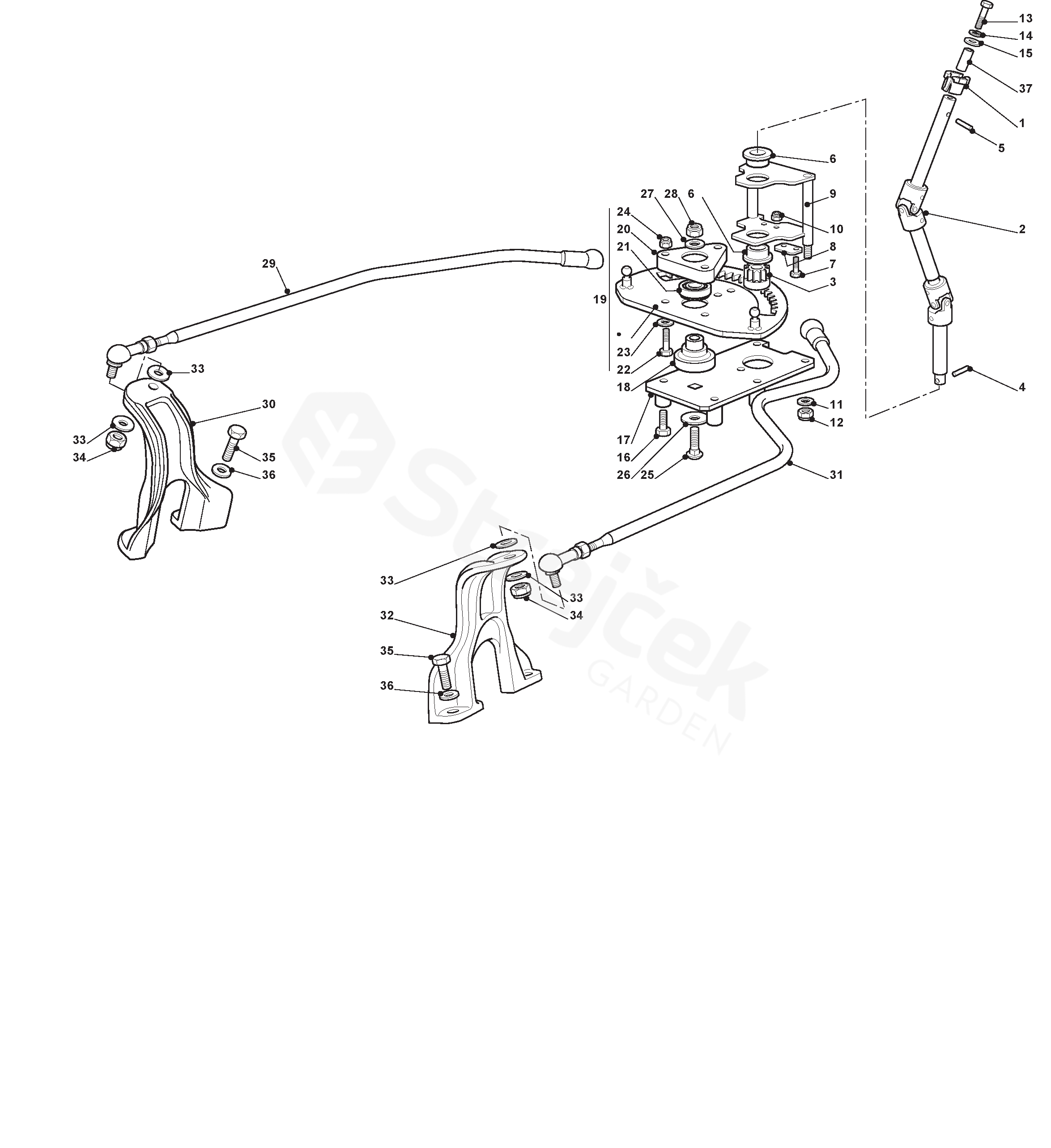

Steering
TORNADO PRO 9121 XWSY TORNADO PRO 9121 XWSY (2020)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TORNADO PRO 9121 XWSY (2020)
1 Bushing 325038004/0
2 Steering Column 382543053/0
3 Pinion 125570006/1
4 Dowel pin 112622650/0
5 Pin 112620250/0
6 Brass 125034004/0
7 Screw 112788910/0
8 Plate 325487000/0
9 Support 382785209/0
10 Nut 112154330/0
11 Washer 112521360/0
12 Nut 112156602/0
13 Screw 112691100/0
14 Grower 112583500/0
15 Washer 112523060/0
16 Screw 112735108/1
17 Support 382785207/0
18 Support 125040641/0
19 Steering Sector 382735523/0
20 Clamp 325774453/0
21 Bearing 119216047/0
24 Nut 112155000/0
25 Screw 112819600/0
26 Washer 112521395/0
27 Washer 112521370/0
28 Nut 112156603/0
29 Steering Rod 382000622/0
30 Steering Wheel Bracket 325774491/1
31 Steering Rod 382000624/0
32 Steering Wheel Bracket 325774493/0
33 Washer 112522050/0
34 Nut 112155700/0
35 Screw 112760585/0
37 Spacer 125160063/0
