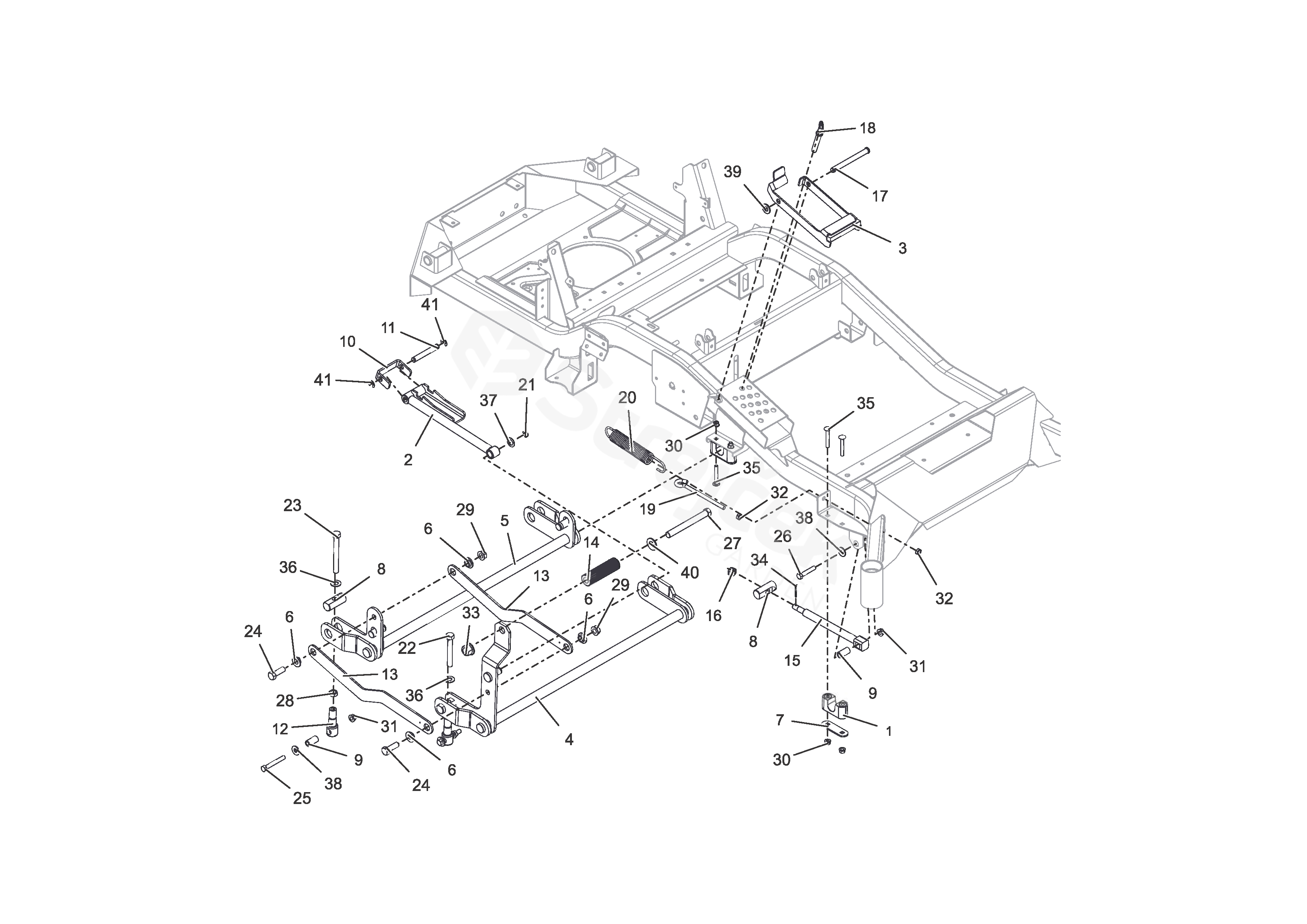

Spare parts - Partlist - ZT 7132 T ZT 7132 T (2019) - Deck Lift RH

Everything for your machines

ZT 7132 T ZT 7132 T (2019)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For ZT 7132 T (2019)

1	Bushing	118830920/0
2	Arm	118830892/0
3	Lever	118830852/0
4	Front Axle	118830848/0
5	Rear axle	118830849/0
6	Bushing	118830828/0
7	Plate, Grey	118830224/0
8	Pin	118830886/0
9	Spacer	118830833/0
10	Bracket	118830857/0
11	Rod	118830858/0
12	Lever	118830860/0
13	Lever	118830862/0
14	Rod	118830876/0
15	Lever	118830877/0
16	Spare Part at the moment NOT MANAGED NUT, -SL .50-13_Ariens: 06505000	-
17	Spare Part at the moment NOT MANAGED PIN, SLIC .500X4.97X4.55 ZC_Ariens: 06800201	-
18	Spare Part at the moment NOT MANAGED PIN, .500X2.200 USABLE LG BALL_Ariens: 06800136	-
19	Spare Part at the moment NOT MANAGED BOLT, .38-16X5.25-.62 DIA EYE_Ariens: 07001814	-
20	Spring, Tension .162X1.250X8.250	118830805/0
21	Spare Part at the moment NOT MANAGED RG-RTNG-EXT .625X.050_Ariens: 05709200	-
22	Spare Part at the moment NOT MANAGED BOLT, HEX 0.15-13X3.5F GR5 ZCC_Ariens: 05901735	-
23	Spare Part at the moment NOT MANAGED BOLT, HEX 0.15-13X4.5F GR8 ZCC_Ariens: 05901736	-
24	Spare Part at the moment NOT MANAGED BOLT, HEX 0.15-13X1.5F GR5 ZC120_Ariens: 05901631	-
25	Spare Part at the moment NOT MANAGED BOLT, HEX 0.375-16X2.75 GR8 ZCC_Ariens: 05901813	-
26	Spare Part at the moment NOT MANAGED BOLT, HEX 0.375-16X2 GR5 ZC120_Ariens: 05801718	-
27	Spare Part at the moment NOT MANAGED BOLT, HEX 0.625-11X5.5 GR5 ZC120_Ariens: 05901730	-
28	Spare Part at the moment NOT MANAGED NUT, JAM .50-13 GR5 ZC120_Ariens: 06500911	-
29	Spare Part at the moment NOT MANAGED NUT, FLG-TOP LK .500-13 GF ZCC_Ariens: 06500907	-
30	Spare Part at the moment NOT MANAGED NUT, FLG-CTR LK .312-18 GR5 ZCC_Ariens: 06500840	-
31	Spare Part at the moment NOT MANAGED NUT, FLG-TOP LK .375-16 GRF ZC120_Ariens: 06500822	-
32	Spare Part at the moment NOT MANAGED NUT, HEX .50-13 GR5 ZC120_Ariens: 06500910	-
33	Spare Part at the moment NOT MANAGED NUT, FLG-TOP LK .625-11 FBP_Ariens: 06500835	-
34	Spare Part at the moment NOT MANAGED PIN, CTR .12X1.25 EXTPRSQCT ZC120_Ariens: 06700212	-
35	Spare Part at the moment NOT MANAGED BOLT, RHSSN .313-18X2.25 G5 ZCC_Ariens: 06200311	-
36	Spare Part at the moment NOT MANAGED WASHER, FL-STL 0.526X1.055X0.074 HRD_Ariens: 06401116	-
37	Spare Part at the moment NOT MANAGED WASHER, FL-STL 0.63X1.005X0.062 ZCC_Ariens: 06401117	-
38	Spare Part at the moment NOT MANAGED WASHER, FL-STL 0.438X1X0.083 ZC120_Ariens: 06401008	-
39	Spare Part at the moment NOT MANAGED WASHER, FL-STL 0.531X1.062X0.095 ZC120_Ariens: 06401015	-
40	Spare Part at the moment NOT MANAGED WASHER, FL-STL 0.656X1.312X0.095 RIE5230_Ariens: 06401039	-
41	Spare Part at the moment NOT MANAGED RING, RETAINING-E .500X.042_Ariens: 05710200	-
