STIGA
>
Front Mower Collecting
>
MPV 320 W MPV 320 W (2017)
>

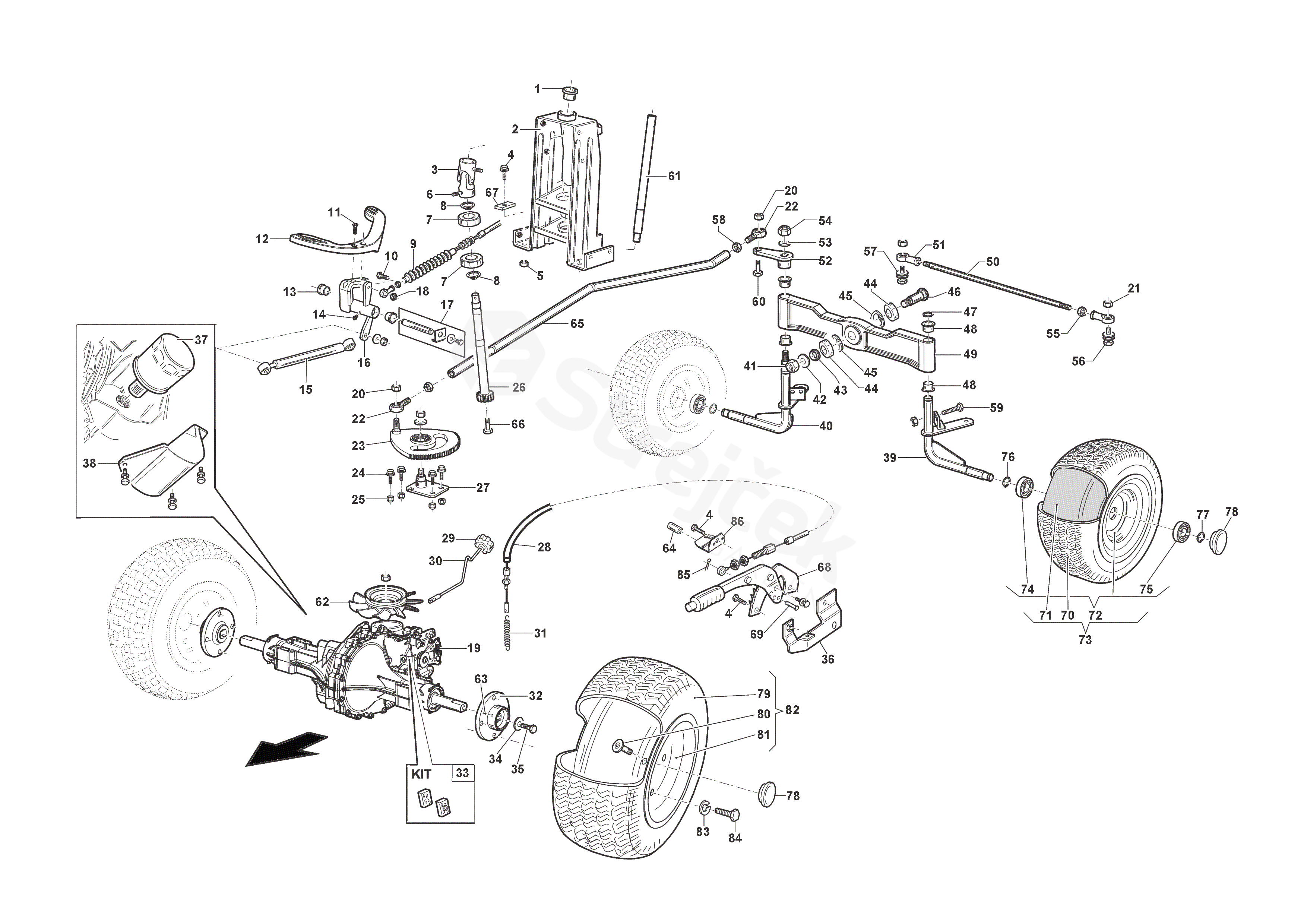

Hydrostatic Unit - Front Axle
Back to
MPV 320 W
MPV 320 W (2017)
Hydrostatic Unit - Front Axle
MPV 320 W
MPV 320 W (2017)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MPV 320 W (2017)
1
Bushing
118830532/0
2
Steering Column Support
118830519/0
3
Joint
118830376/0
4
Screw
9959-0820-16
5
Nut
112293200/0
6
Elastic Pin
118830697/0
7
Bearing
119216040/0
8
Seeger
112609260/0
9
Cable Drive Eng.
118830510/0
10
Screw
112791500/0
11
Screw
9924-0830-16
12
Drive Pedal
118830534/0
13
Bushing
118830523/0
14
Grease Dispenser
112379511/0
15
Absorber
118830388/0
16
Support
118830498/0
17
Pin
118830535/0
18
Nut
112154510/0
19
Transmission Unit (HydroGear G700)
118830414/0
20
Nut
112156603/0
21
Nut
112156602/0
22
Joint
118830380/0
23
Ring Gear
118830461/0
24
Screw
112793102/0
25
Nut
112155000/0
26
Shaft
118830431/0
27
Support
118830462/0
28
Cable, Thread Parking Brake
118830487/0
29
Knob
118830350/0
30
Arm
118830443/0
31
Spring
118830488/0
32
Wheel Hub
118830415/0
33
Lining
118830537/0
34
Washer
118830709/0
35
Screw
120001042/0
36
Support
118830540/0
37
Oil Filter
118830389/0
38
Housing
118830539/0
39
Support
118830459/0
40
Support
118830458/0
41
Nut
112154520/0
42
Washer
112521390/0
43
Spacer
118830426/0
44
Ball Bearing
118830370/0
45
Seeger Ring
112611000/0
46
Pin
118830425/0
47
Seeger
112609260/0
48
Bushing
118830365/0
49
Wheel Axle
118830410/0
50
Tie Rod
118830438/0
51
Joint
118830381/0
52
Arm
118830457/0
53
Washer
112521370/0
54
Nut
112156603/0
55
Nut
112156602/0
56
Screw
112794400/0
57
Washer
112521360/0
58
Nut
112171502/0
59
Screw
112793500/0
60
Screw
9997-1240-16
61
Steering Column
137520065/0
62
Fan Kit
118830538/0
63
Grub Screw
112716100/0
64
Pin
118830524/0
65
Steering Rod
118830430/0
66
Screw
112691200/0
67
Plate
118830401/0
68
Arm
118830724/0
69
Pin
118830725/0
70
Tyre
118830354/0
71
Inner Tube
118830352/0
72
Rimm
118830689/0
73
Rear Wheel Assy
118830688/0
74
Bearing
119216040/0
75
Ball Bearing
118830373/0
76
Seeger
112609260/0
77
Seeger Ring
112609100/0
78
Plug
118830363/0
79
Tyre
118830355/0
80
Valve
118830353/0
81
Rimm
118830692/0
82
Front Wheel
118830683/0
83
Washer
118830707/0
84
Screw
118830702/0
85
Cotter Pin
124487997/0
86
Support
118830726/0
