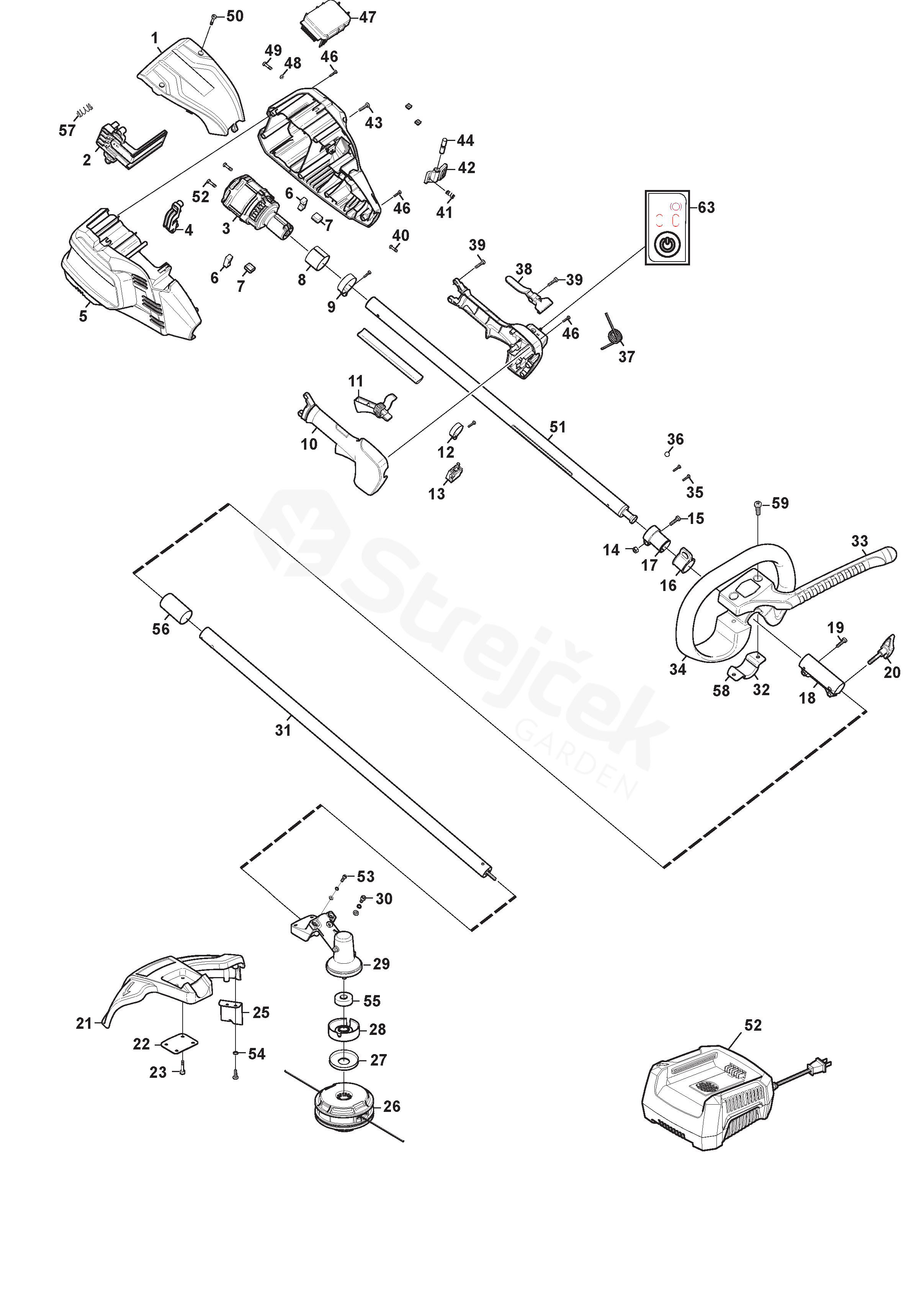

SBC 80 AE SBC 80 AE (2017) [272400088/S16]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SBC 80 AE (2017) [272400088/S16]

1	Housing cover	118810328/0
2	Inserting seat	118810293/0
3	Engine	118810391/0
4	Clamp	118810329/0
5	Shell Assembly	118810346/0
6	Rubber Washer	118804125/0
7	Rubber Washer	118804124/0
8	Rubber blanket	118810337/0
9	Hoop	118810313/0
10	Handle Components	118810349/0
11	Switch The Trigger	118810379/0
12	Embrace hoop	118804121/0
13	Switch	118810396/0
14	Nut	112154330/0
15	Outfit, Screws	6981101
16	Support	118804129/0
17	Support	118804130/0
18	Tube Clamp	118810309/0
19	Screw	2122260
20	Knob	118810374/0
21	Stone Guard	118810367/0
22	Protection	118810314/0
23	Screw	118810322/0
25	Line Cutter Blade	118810318/0
26	Hedges Nylon Head	118810304/0
27	Bowl	118810312/0
28	Blade fix seat	118810327/0
29	Gear Case	118810345/0
30	Screw	2122260
31	Lower Tube Assy	118810348/0
32	Clamp	118803270/0
33	Front Handle Barrier	118804128/0
34	Front Handle	118803418/1
35	Screw	112727810/0
36	PCB button	118810387/0
37	The Self-Locking Spring Two	118810325/0
38	The Self-Locking	118810377/0
39	Screw	2132530
40	Screw	112727790/0
41	Spring	118810281/0
42	Battery Button	118810380/0
43	Screw	112728525/0
44	Pin	118810305/0
46	Outfit, Screws	6981116
47	PCB components	118810394/0
48	Grower	112581200/0
49	Screw	112726389/0
50	Screw	112727790/0
51	Upper Tube Assy	118804118/0
52	Screw	112726389/0
53	Screw	6981117
54	Grower	112581500/0
55	Axle sleeve	118810326/0
56	Sleeve	118810292/0
57	Spring	118810351/0
58	Washer	118803326/0
59	Outfit, Screws	6981102
