Spare parts
Everything for your machines
Spare parts
>
STIGA
>
Trimmer/Brushcutter
>
SMT 24 AE SMT 24 AE (2018) [277340321/S17]
>
Pole Hedge Trimmer
Back to
SMT 24 AE
SMT 24 AE (2018) [277340321/S17]
Pole Hedge Trimmer
SMT 24 AE
SMT 24 AE (2018) [277340321/S17]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For

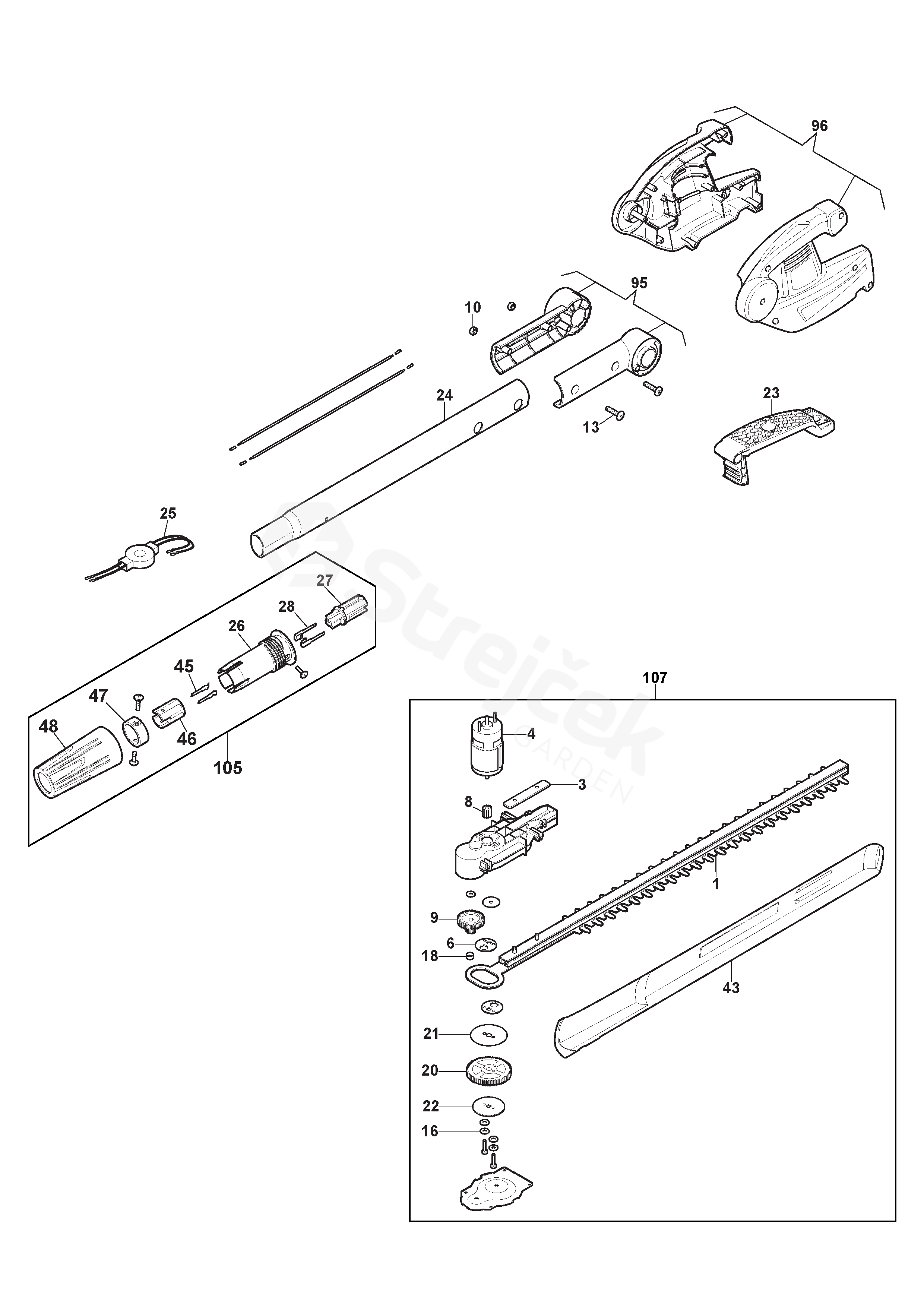

SMT 24 AE (2018) [277340321/S17]
1
Blade Assy
118810529/0
3
Clamp
118803281/0
4
Electric Motor
118810564/0
6
Eccentric
118810533/0
8
Pinion
118810503/0
9
Gear
118810531/0
10
Nut
112154510/0
13
Screw
112728721/0
16
Spacer
118810532/0
18
Bushing
118803257/0
20
Gear
118810501/0
21
Plate
118803278/0
22
Gasket
118810535/0
23
Rotation Lever, Grey
118810554/0
24
Tube
118803395/0
25
Inductance
118810523/0
26
Clamp
118810557/0
27
Connector
118803309/0
28
Terminal
118803262/1
43
Blade Guard
118804597/0
45
Connector
118803268/0
46
Connector
118803313/0
47
Position Circle
118804150/0
48
Ring Nut
118810560/0
95
Turn Component Assy, Yellow
118810656/0
96
Housing Assy, Yellow
118810658/0
105
Handle Joint Kit
118805009/0
107
Motor and Blade Assy
118805151/0
