STIGA
>
Trimmer/Brushcutter
>
SGT 48 AE SGT 48 AE (2019) [271300108/ST1]
>
Battery Brushcutter
Back to
SGT 48 AE
SGT 48 AE (2019) [271300108/ST1]
Battery Brushcutter
SGT 48 AE
SGT 48 AE (2019) [271300108/ST1]

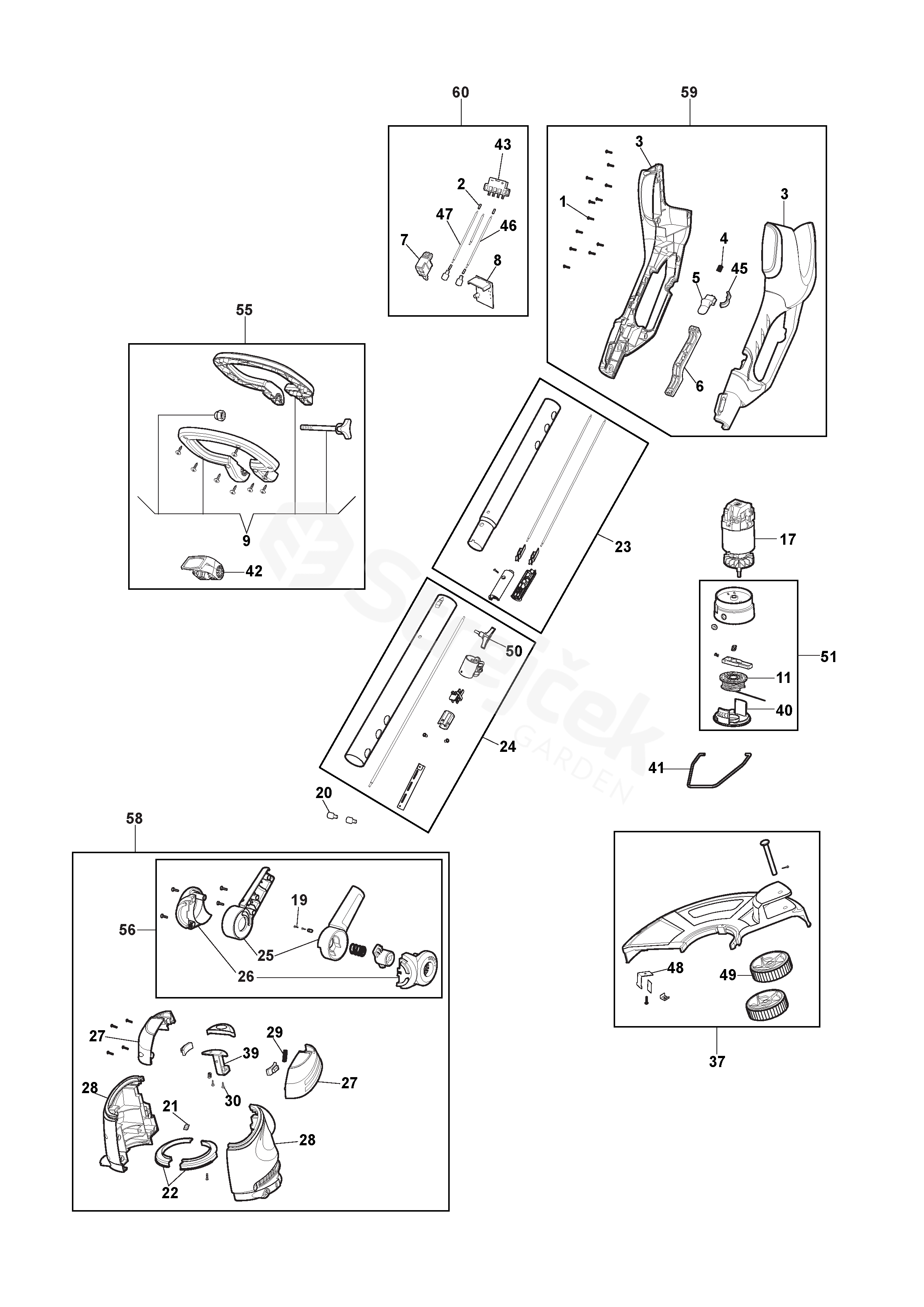

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
SGT 48 AE (2019) [271300108/ST1]
1
Screw
112735645/0
2
Heat shrinkable tube
118804114/0
3
Handle Assy, Grey
118804654/0
4
Spring
118803228/0
5
Button, Yellow
118803443/0
6
Switch, Yellow
118803462/0
7
Switch
118803342/0
8
PCB
118803336/1
9
Front Handle Assy, Yellow Knob
118810451/0
11
Spool with Line
1911-9223-01
17
Engine
118803467/0
19
Screw
112727810/0
20
Terminal
118803230/0
21
Nut
122131758/0
22
Ring
118803372/0
23
Upper shaft Assy
118804199/0
24
Lower shaft Assy, Yellow Knob
118804200/0
25
Housing, Grey
118804657/0
26
Cover, Grey
118804658/0
27
Cover
118803374/0
28
Housing, Grey
118804656/0
29
Spring
118803288/0
30
Screw
112735641/0
37
Guard Assy, Grey Wheels
118804202/0
39
Button Lever
118804660/0
40
Spool Cover
118803323/0
41
Guide
118803397/0
42
Clamp
118803429/0
43
Insert block
118803304/0
45
Retaining Plate, Grey
118804655/0
46
White Wire
118804193/0
47
Black Wire
118804194/0
48
Line Cutter Blade
118804196/0
49
Wheel
118804198/0
50
Knob, Yellow
118803425/0
51
Line Cutter Head Assy
118804661/0
55
Handle Assy
118810686/0
56
Rotation Joint Kit
118810751/1
58
Trimmer Head Housing Kit
118810848/0
59
Handle Parts Kit
118810853/0
60
PCB and Electronics Assy
118810854/0
