Spare parts
Everything for your machines
Spare parts
>
STIGA
>
Trimmer/Brushcutter
>
ST1200 ST1200 (2002)
>
Battery Trimmer
Back to
ST1200
ST1200 (2002)
Battery Trimmer
ST1200
ST1200 (2002)

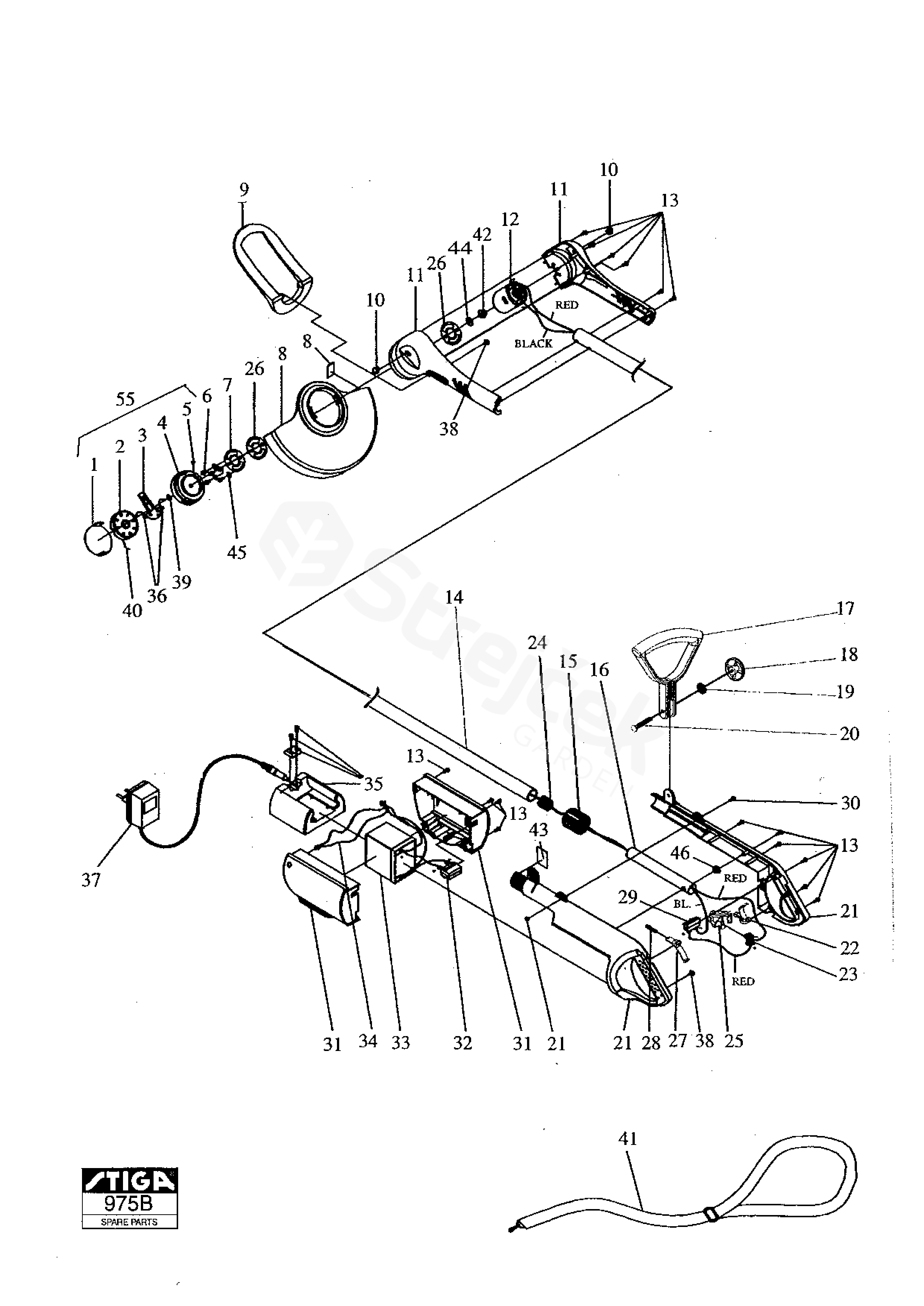

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
ST1200 (2002)
1
Spool Cover
1117-2153-01
2
Spool w.line
1911-9018-01
3
Feeding Driver
1117-2160-01
4
Spool Base
1117-2172-01
5
Line Grommet
1117-2210-01
6
Screw
1117-2178-01
7
Motor Mounting Plate
1117-2157-01
8
String Protector W.Knife
1117-2155-01
9
Edge Cutting Retainer
1117-2158-01
10
Retainer Stop
1117-2161-01
11
Motor Housing Set (R+L)
1117-2201-01
12
Motor
1117-2164-01
13
Screw
1117-2181-01
14
Steel Tube
1117-2189-01
15
Tube Sleeve
1117-2211-01
16
Flexible Steel Tube
1117-2188-01
17
Handle
1117-2185-01
18
Knob
1117-2191-01
19
Washer
1117-2183-01
20
Screw
1117-2179-01
21
Holder Body Set (R+L)
1117-2202-01
22
Releasing Button
1117-2156-01
23
Switch
1117-2166-01
24
Motor Cord Set
1117-2168-01
25
Trigger
1117-2194-01
26
Motor Insulation Fin
1117-2171-01
27
Security
1117-2159-01
28
Security Spring
1117-2187-01
29
Plug Set
1117-2170-01
30
Screw
1117-2195-01
31
Battery Housing (R+L)
1117-2200-01
32
Receptacle Set
1117-2165-01
33
Battery
12 Volt - 7 Ah
1117-2162-01
34
Battery Cord Set
1117-2169-01
35
Charging Stand Assy
1117-2173-01
36
Metal Spring
1117-2184-01
37
Charger
9400-0279-01
38
Screw
1117-2212-01
39
Nut
1117-2176-01
40
Cutting Line (15M-1.6Mm)
15 m
1911-9006-08
41
Strap
1117-2213-01
42
Nut
1117-2196-01
43
Pad
1117-2197-01
44
Fin
1117-2198-01
45
Washer
1117-2199-01
46
Nut
1117-2203-01
55
Cutterhead Assy, St1200
Inkl. pos 1-5, 39-40
1911-9019-01
99
Battery
Inkl. pos 31 - 34
1911-9026-01
