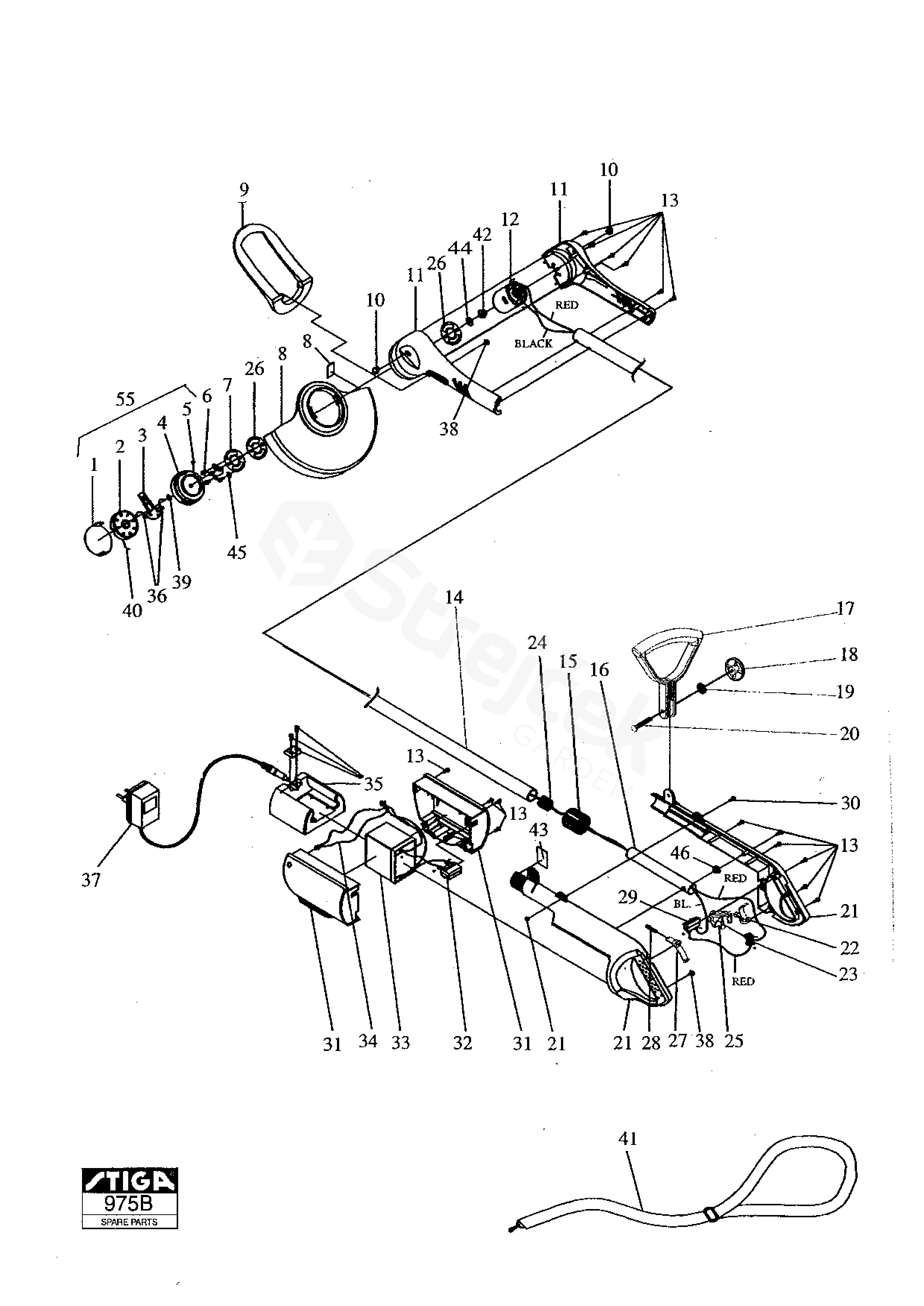

ST1200 ST1200 (2004)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For ST1200 (2004)

1	Spool Cover	1117-2153-01
2	Spool W.Line (St1200, 2002-)	1911-9024-01
3	Feeding Driver	1117-2160-01
4	Spool Base	1117-2172-01
5	Grommet	1117-2177-01
6	Screw	1117-2178-01
7	Motor Mounting Plate	1117-2157-01
8	String Protector W.Knife	1117-2155-01
9	Edge Cutting Retainer	1117-2158-01
10	Retainer Stop	1117-2161-01
11	Motor Housing Set (R+L)	1117-2201-01
12	Motor	1117-2164-01
13	Screw	1117-2181-01
14	Steel Tube	1117-2189-01
15	Sleeve	1117-2186-01
16	Flexible Steel Tube	1117-2188-01
17	Handle	1117-2185-01
18	Knob	1117-2191-01
19	Washer	1117-2183-01
20	Screw	1117-2179-01
21	Holder Body Set (R+L)	1117-2202-01
22	Releasing Button	1117-2156-01
23	Switch	1117-2166-01
24	Motor Cord Set	1117-2168-01
25	Trigger	1117-2194-01
26	Motor Insulation Fin	1117-2171-01
27	Security	1117-2159-01
28	Security Spring	1117-2187-01
29	Plug Set	1117-2170-01
30	Screw	1117-2195-01
31	Battery Housing (R+L)	1117-2200-01
32	Receptacle Set	1117-2165-01
33	Battery 12 Volt - 7 Ah	1117-2162-01
34	Battery Cord Set	1117-2169-01
35	Charging Stand Assy	1117-2173-01
36	Metal Spring	1117-2184-01
37	Charger	9400-0279-01
38	Screw	1117-2175-01
39	Nut	1117-2176-01
40	Cutting Line (200M-1.6Mm) 0,45 kg (200 m)	1911-9006-04
41	Strap	1117-2213-01
42	Nut	1117-2196-01
43	Pad	1117-2197-01
44	Fin	1117-2198-01
45	Washer	1117-2199-01
46	Nut	1117-2203-01
55	Cutterhead Assy, St1200 Inkl. pos 1-5, 39-40	1911-9019-01
99	Battery Inkl. pos 31 - 34	1911-9026-01
