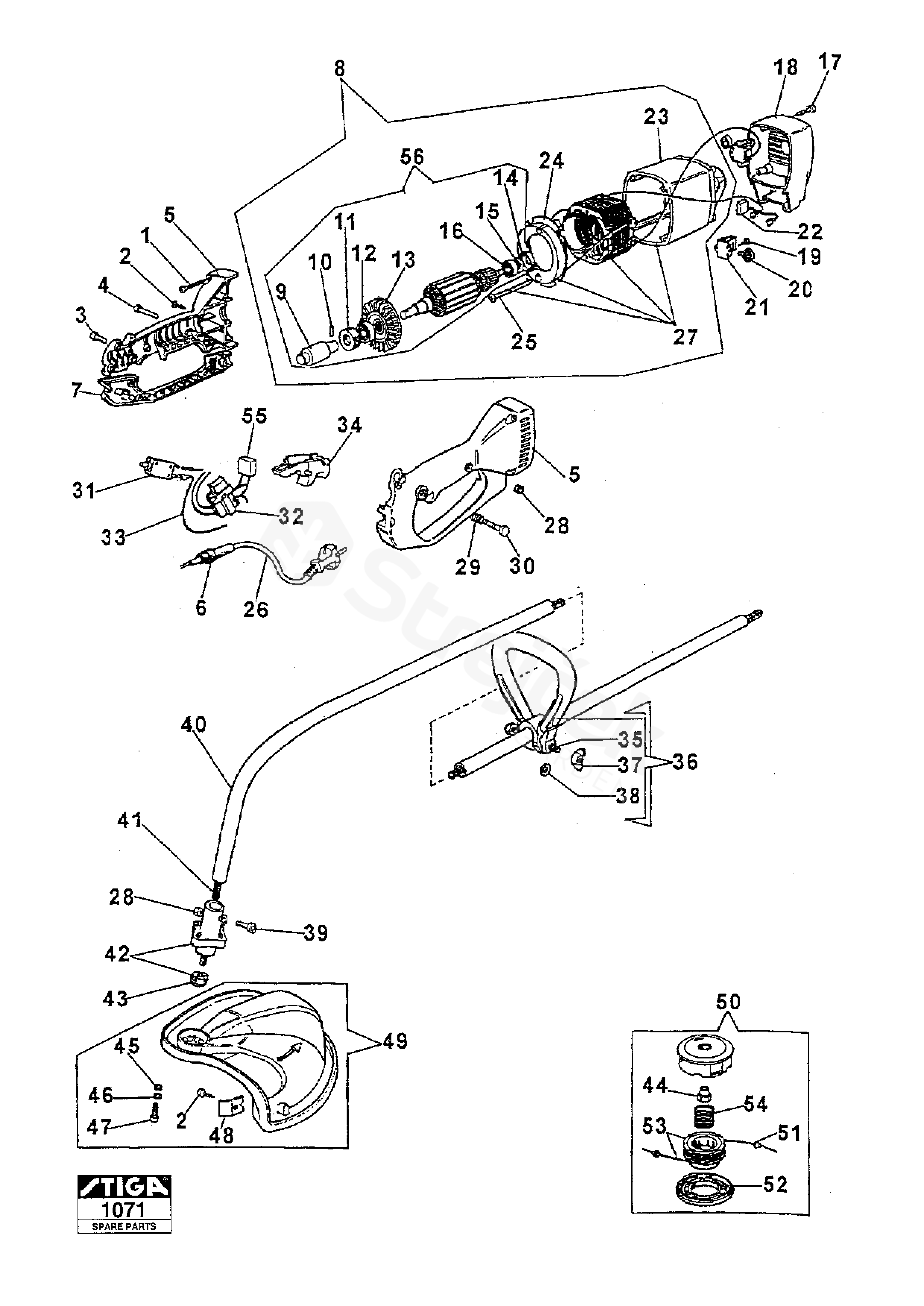

ST1000 ST1000 (2000)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For ST1000 (2000)

1	Screw	1911-1441-01
2	Screw	1911-1440-01
3	Screw	1911-1439-01
4	Screw	1911-1445-01
5	Handle	1911-1447-01
6	Grommet	1911-1416-01
7	Cover	1911-1446-01
8	Motor Assy Inkl. pos 27, 56	1911-1456-01
9	Coupling	1911-1471-01
10	Pin	1911-1428-01
11	Ring	1911-1425-01
12	Ball Bearing	1911-1430-01
13	Fan	1911-1418-01
14	Ring	1911-1424-01
15	Ring	1911-1417-01
16	Ball Bearing	1911-1429-01
17	Screw	1911-1442-01
18	Cover	1911-1470-01
19	Screw	1911-1444-01
20	Spring	1911-1420-01
21	Brush Holder	1911-1421-01
22	Brushes	1911-1419-01
23	Housing	1911-1423-01
24	Cover	1911-1422-01
25	Screw	1911-1443-01
26	Connection cable	1911-1458-01
27	Armature W.Housing Assy Inkl. pos 23 - 25	1911-1468-01
28	Nut	1911-1435-01
29	Spring	1911-1463-01
30	Catch Button	1911-1455-01
31	Overload Guard	1911-1426-01
32	Switch	1911-1427-01
33	Wire	1911-1466-01
34	Lever	1911-1453-01
35	Screw	1911-1434-01
36	Front Handle Assy Inkl. pos 35, 37 - 38	1911-1448-01
37	Nut	1911-1437-01
38	Washer	1911-1438-01
39	Screw	1911-1432-01
40	Drive Shaft Housing	1911-1465-01
41	Flex Shaft	1911-1461-01
42	Bearing Box Assy Inkl. pos 43	1911-1459-01
43	Flange	1911-1460-01
44	Insert	1911-1450-01
45	Washer	1911-1436-01
46	Washer	1911-1433-01
47	Screw	1911-1431-01
48	Blade	1911-1449-01
49	Guard assy Inkl. pos 2, 45 - 48	1911-1462-01
50	Cutterhead Assy Inkl. pos 44, 51 - 54	1911-1467-01
51	Eyelet	1911-1454-01
52	Cover	1911-1451-01
53	Spool and line	1911-1464-01
54	Spring	1911-1452-01
55	Condensor	1911-1457-01
56	Rotor Assy Inkl. pos 9 - 16	1911-1469-01
