Spare parts > STIGA > Trimmer/Brushcutter > ST1100 ST1100 (2010) [19-1100-14] > Electric grass trimmer
Back to

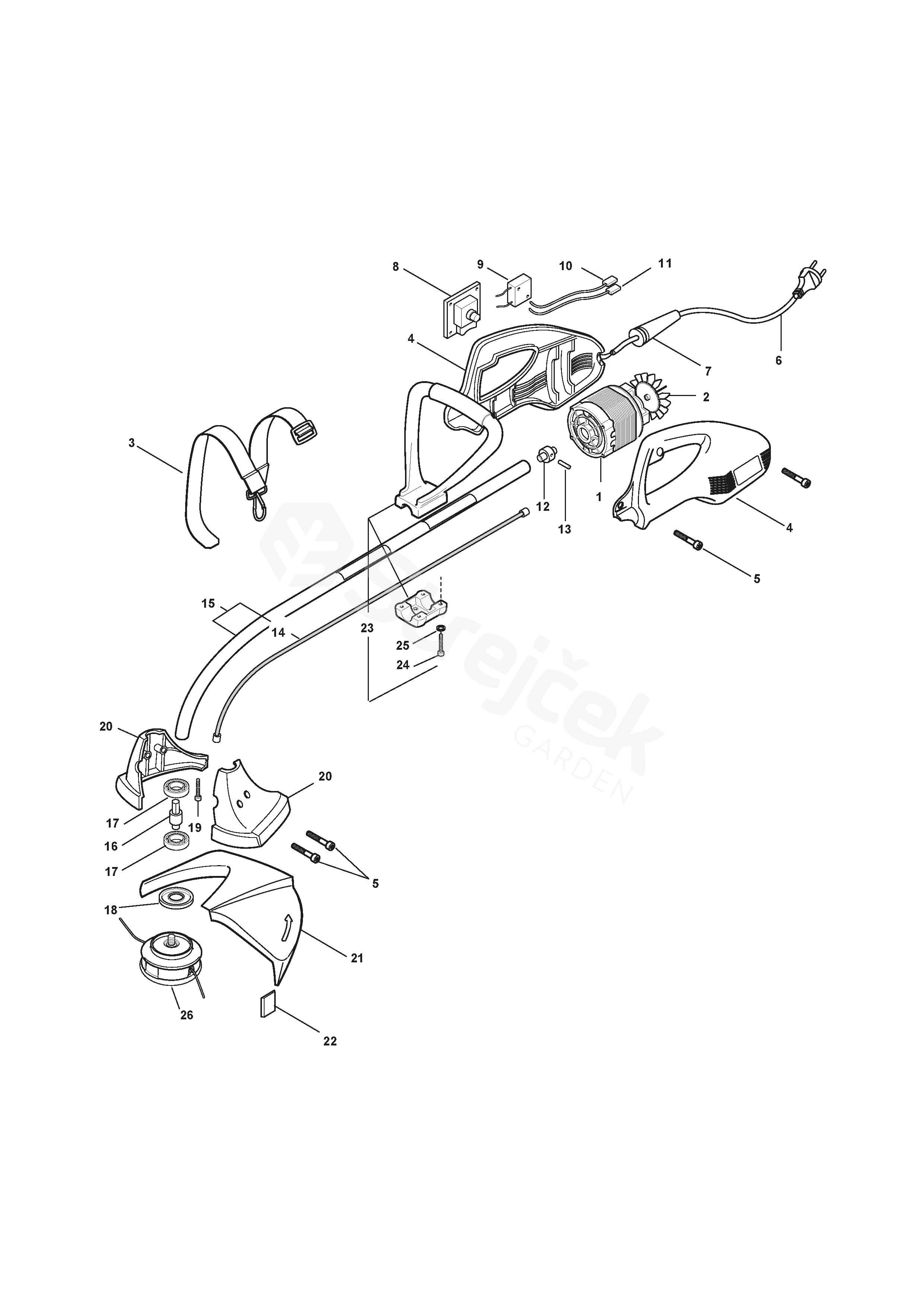

Electric grass trimmer
ST1100 ST1100 (2010) [19-1100-14]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST1100 (2010) [19-1100-14]
1 Engine assy 8253840
2 Fan 4564000
3 Brace 4253420
4 Semi-Handgrips Yellow 8563210
5 Screw 2123210
7 Cord Protector 3744767
8 Switch 3211200
9 Capacitor 3211210
10 Long Engine Switch Cable, Male
F 		3211300
11 Short Engine Switch Cable, Male
F 		3211310
12 Flexible Transm. Shaff Joint 3750200
13 Elastic Plug 3314170
14 Flexible shaft 1L4253830/1
15 Transmission Tube Ass.Y 3L4252180/1
16 Head Shaft 3643020
17 Ball Bearing 3112280
18 Upper Ring Nut 3614630
19 Screw 2123100
20 Head Half-Casing Set 8563240
21 Safety cover Ass.Y 3L4563231/1
22 Line Cutter Blade 3614640
23 Front Handgrip Assy 8250360
24 Screw 2123110
25 Flat washer 2312090
26 2 Hedges Nylon Head 323155002/1
