Spare parts > STIGA > Trimmer/Brushcutter > ST475 ST475 (2000) > El. Trimmer
Back to
El. Trimmer
ST475 ST475 (2000)

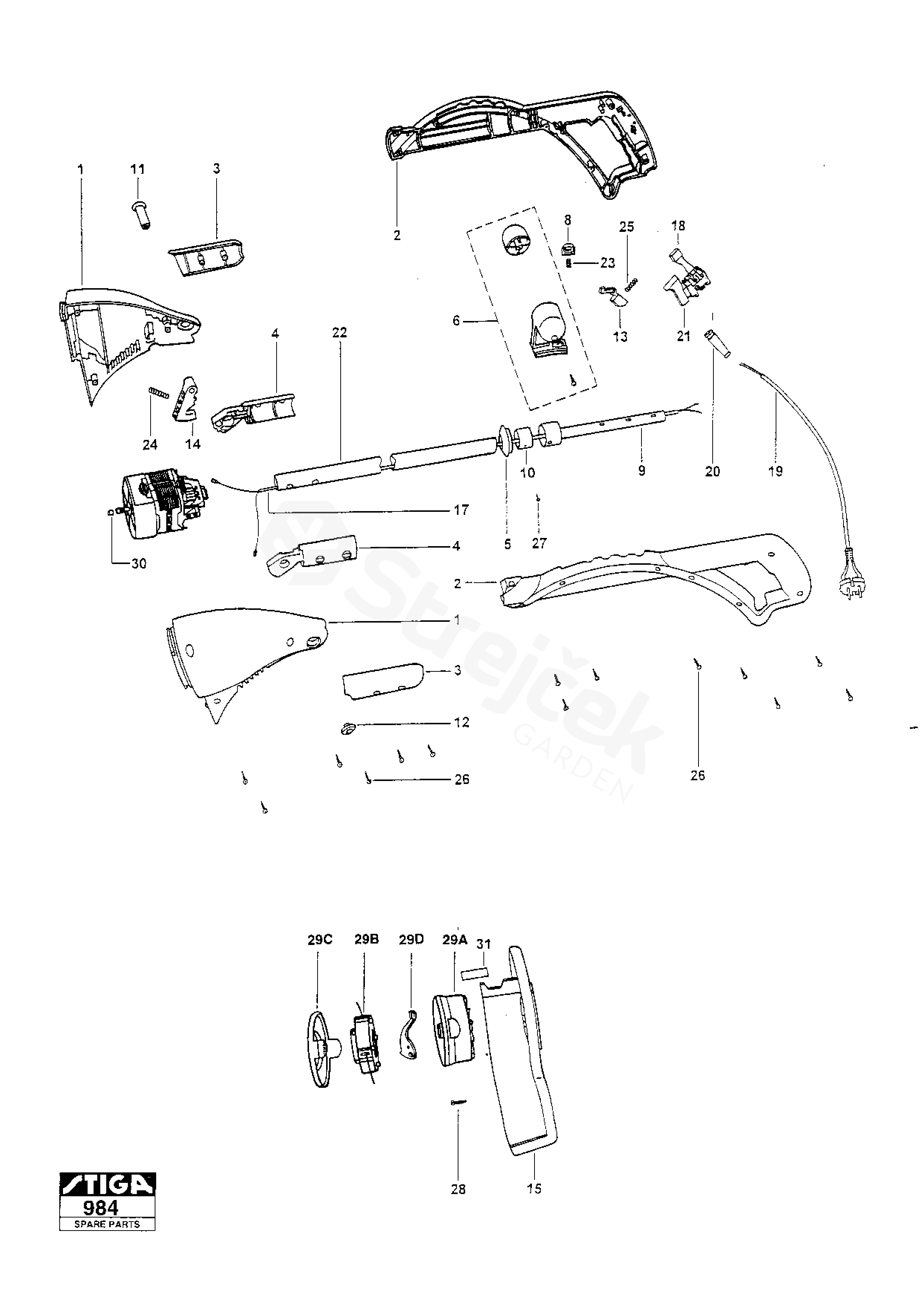

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST475 (2000)
1 Motor housing 1911-1032-01
2 Handle 1911-1031-01
3 Link Cover 1911-1028-01
4 Pivoting Piece 1911-1040-01
5 Sealing Cap 1911-1030-01
6 Support Handle 1911-1027-01
8 Button 1911-1036-01
9 Rod 1911-1041-01
10 Spacer Ring 1911-1029-01
11 Pivot Bolt 1911-1038-01
12 Cap 1911-1039-01
13 Release Button 1911-1042-01
14 Pivot Arm 1911-1043-01
15 Guard 1911-1026-01
17 Cable 1911-1059-01
18 Condensor 1911-1061-01
19 Connection cable 1911-1068-01
20 Grommet 1911-1066-01
21 Switch 1911-1060-01
22 Tube 1911-1049-01
23 Spring 1911-1056-01
24 Spring 1911-1057-01
25 Spring 1911-1058-01
26 Screw 1911-1105-01
27 Screw 1911-1050-01
28 Screw 1911-0820-01
30 Ring 1911-1064-01
31 Blade 1911-1055-01
29A Spool Holder 1911-1044-01
29B Spool W.Line, St475 1911-9021-01
29C Cover 1911-1045-01
29D Lever 1911-1046-01
