Spare parts > STIGA > Trimmer/Brushcutter > SB 25J SB 25J (2008) > Brush Cutter
Back to
Brush Cutter
SB 25J SB 25J (2008)

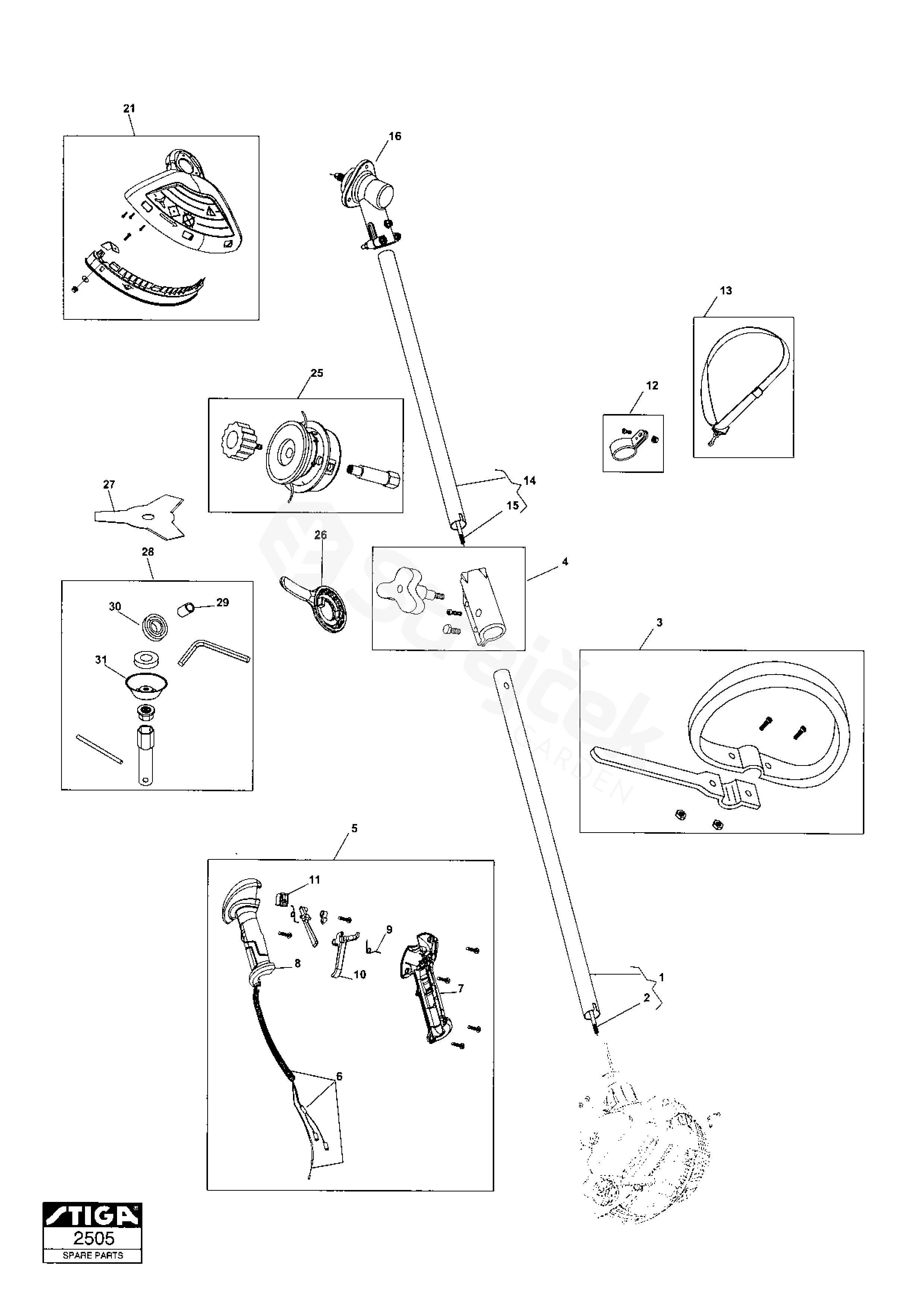

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SB 25J (2008)
1 Transmission Pipe Assy
Inkl. pos 2 		383869060/0
2 Transmission Shaft Assy 123020018/0
3 Front Handle 383300018/0
4 Joint Chair Assy 383260001/0
5 Handle Assy
Inkl. pos 6-11 		383300017/0
6 Cables Ass.Y + Sheath 183065012/0
7 Right Handgrip 123700054/0
8 Left Handgrip 123700055/0
9 Spring 123430578/0
10 Throttle Lever 123315076/0
11 Switch 6980206
12 Harness Support 383780001/0
13 Harness 123046004/0
14 Transmission Pipe Assy
Inkl. pos 15 		383869062/0
15 Transmission Shaft Assy 123020020/0
16 Gear case assy 383820505/0
21 Safety cover Ass.Y 383465005/0
25 Cutting Line Assy 383820504/0
26 Nylon Head Key 123070009/0
27 3 Teeth Disc
3T 		123155005/0
28 Parts Bag
Inkl. pos 29-31 		383303512/0
29 Collar 6980307
30 Upper Ring Nut 6980308
31 Stabilizer 6980312
