Spare parts > STIGA > Trimmer/Brushcutter > SB 30 SB 30 (2003) [19-6112-11] > Handle-transmission
Back to

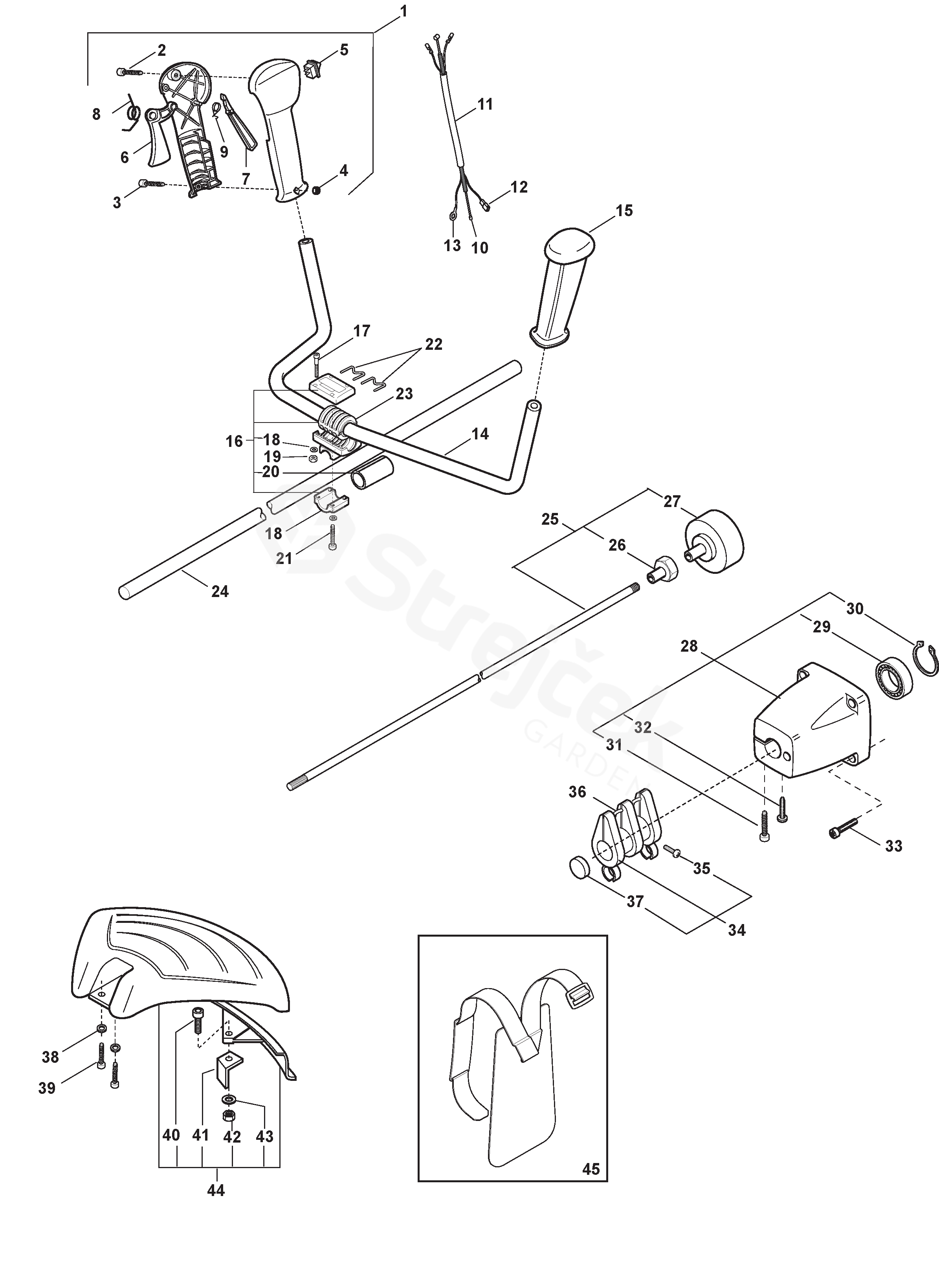

Handle-transmission
SB 30 SB 30 (2003) [19-6112-11]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SB 30 (2003) [19-6112-11]
1 Handle Assy 8563830
2 Screw 2123030
3 Screw 2135050
4 Nut 112154330/0
5 Stop Switch 3210970
6 Trigger 3743431
7 Safety Lever 3743441
8 Spring 1L3654270/1
9 Spring 1L3654280/1
10 Throttle Cable 4252720
11 Wire Sheath 3786240
12 Coil-Switch Cable 3211650
13 Earth Cable 3211660
14 Handle Assy 3L4252710/1
15 Knob 3744860
16 Handgrip Support Ass.Y 8250397
17 Screw 2135120
18 Flat washer 2312090
19 Nut 112154330/0
20 Reduction 3721410
21 Screw 2123110
22 Handle Lock Duplex 3657470
23 Anti Vibration Grommet 3744162
24 Transmission Pipe Assy 8251211
25 Transmission Shaft Assy 4251410
26 Bearing Hub 3642221
27 Clutch Drum Assy 4121881
28 Support Transmission Assy 8561600
29 Ball Bearing 3112170
30 Seeger Ring 3353080
31 Screw 2123140
32 Screw 2123150
33 Screw 2135160
34 Harness Support 8562512
35 Screw 2123140
36 Pin 3642530
37 Reduction 3721410
38 Washer 2312150
39 Screw 2135060
40 Screw 2135030
41 Line Cutter Blade 3615000
42 Nut 2432040
43 Washer 2312150
44 Safety Cover Assy 8563570
45 Harness 4253460
