Spare parts > STIGA > Trimmer/Brushcutter > SB 34 SB 34 (2010) > Handle-transmission
Back to

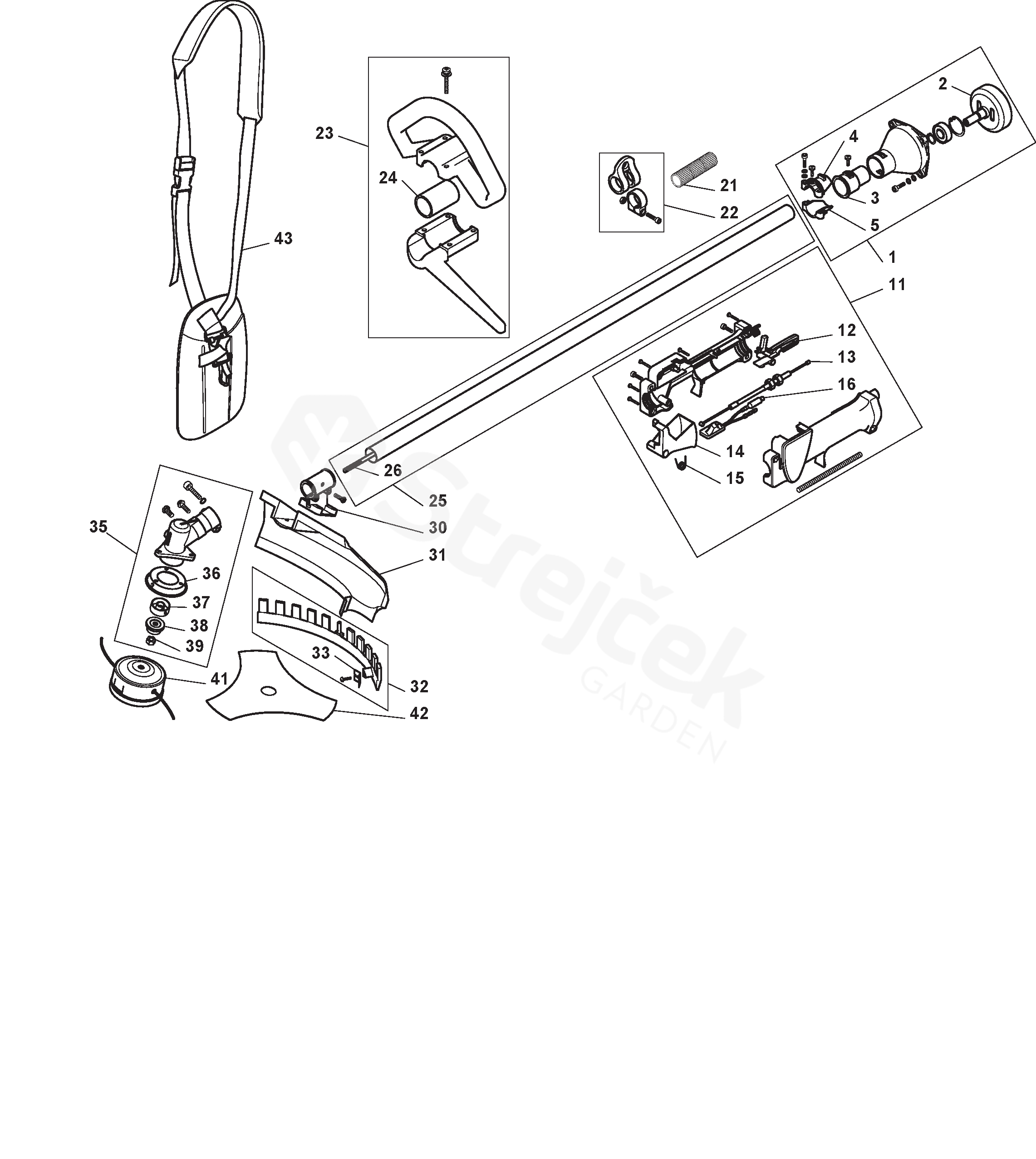

Handle-transmission
SB 34 SB 34 (2010)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SB 34 (2010)
1 Support Transmission Assy 183785004/0
2 Clutch Drum Assy 123050012/0
3 Grommet 123275036/0
4 Support 123720005/0
5 Support 123720004/0
11 Handle Assy 183300027/0
12 Safety Lever 123315104/0
13 Throttle Cable 123066026/0
14 Throttle Lever 123315105/0
15 Spring 123430612/0
16 Switch 183303002/0
21 Spacer 123170004/0
22 Harness Support 183780002/0
23 Front Handle 183300025/0
24 Grommet 123655005/0
25 Assy Transm. Tube+Flex 183869073/0
26 Trasmission Shaft 123020038/0
30 Support 123784012/0
31 Safety Cover 123465007/0
32 Guard 183600055/0
33 Line Cutter Blade 123311013/0
35 Gear case assy 183820507/0
36 Guard 123670002/0
37 Upper Ring Nut 123250002/0
38 Lower Ring Nut 123250003/0
39 Nut 123120015/0
41 2 Hedges Nylon Head 123155009/0
42 3 Teeth Disc 123155010/0
43 Harness 123046005/0
