Spare parts > STIGA > Trimmer/Brushcutter > SB 35D SB 35D (2008) > Brush Cutter Gear Case
Back to

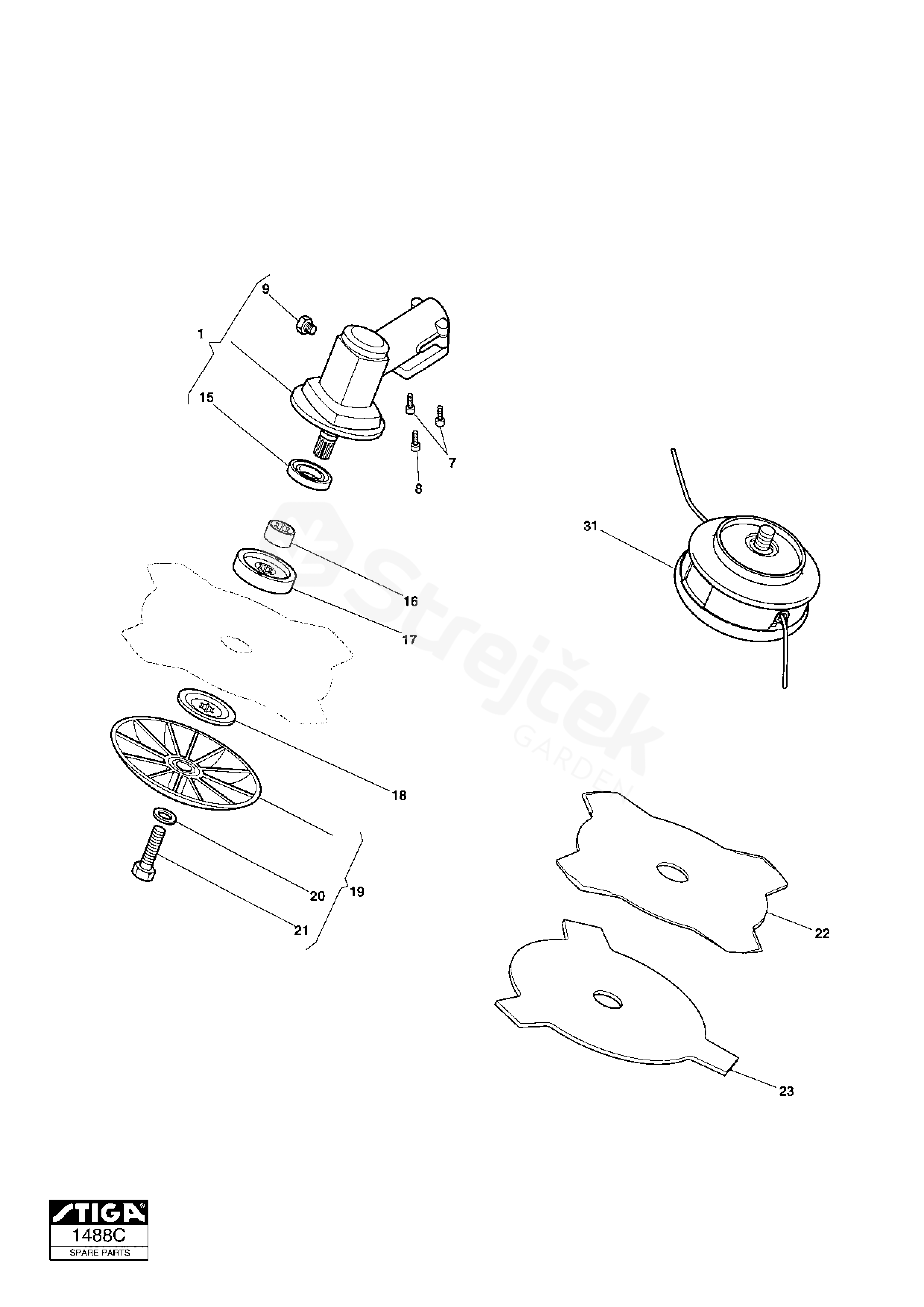

Brush Cutter Gear Case
SB 35D SB 35D (2008)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SB 35D (2008)
1 Gear Case Assy Ø26
Inkl. pos 9, 15 		3L4252780/1
7 Screw 2135050
8 Screw 2653090
9 Screw 2653460
15 Oil seal 3121170
16 Use 3641700/1 1L3641700/1
17 Upper Ring Nut 3641640
18 Lower Ring Nut 3612640
19 Stabilizer
Inkl. pos 20 - 21 		4560610
20 Washer 2321230
21 Screw 2653170
22 4 Teeth Disck
4T - Ø 255 mm 		4611880
23 3 Teeth Disc
3T - Ø 255 mm 		6031172
31 2 Hedges Nylon Head
M8x1,25 SX male 		4353240/1
99 Cutting Line (15M-2.4Mm)
15 m 		1911-9008-08
