Spare parts
>
STIGA
>
Trimmer/Brushcutter
>
SB 435 SB 435 (2004) [19-4401-11]
>
Handle-transmission
Back to
SB 435
SB 435 (2004) [19-4401-11]

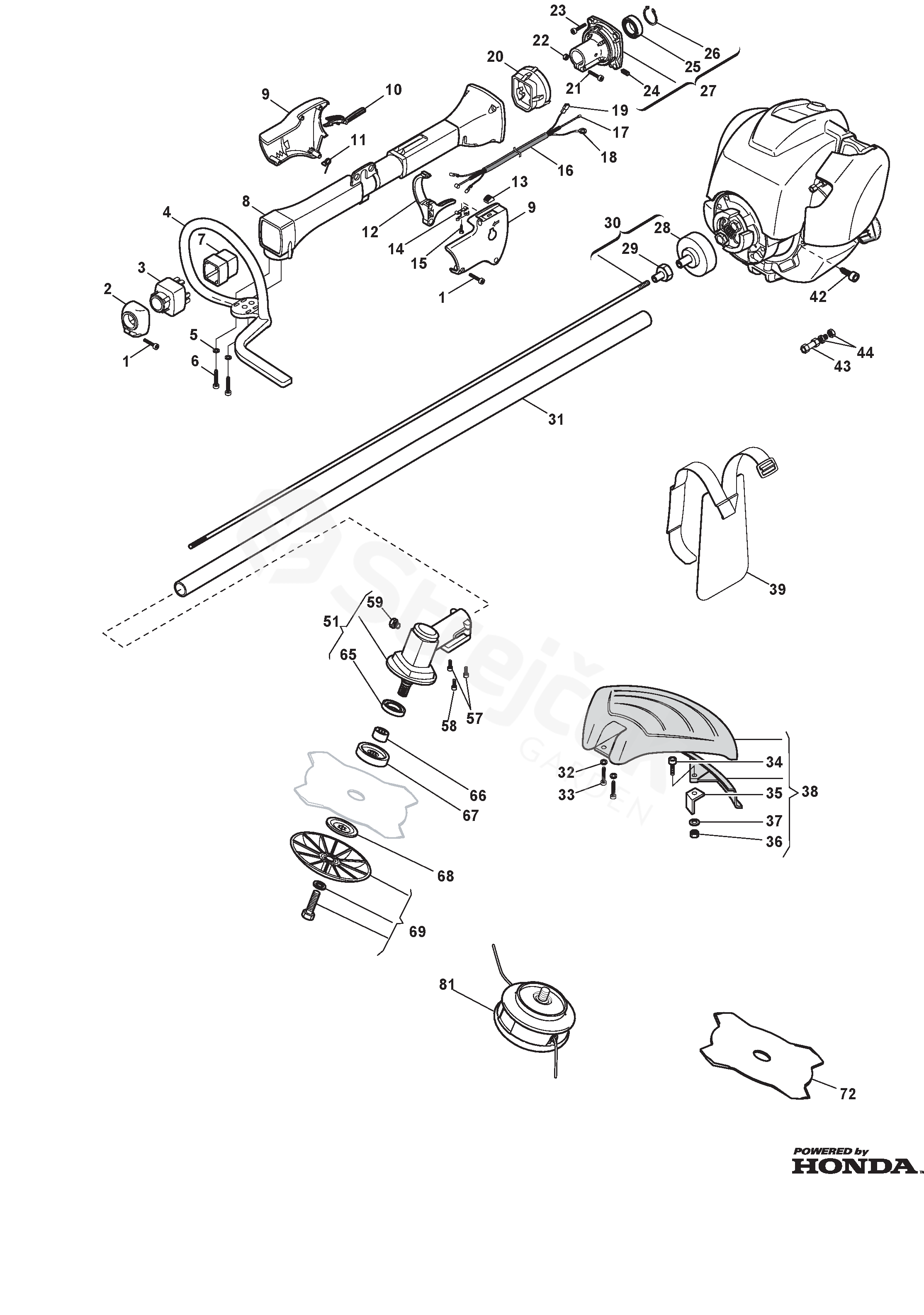

Handle-transmission
SB 435
SB 435 (2004) [19-4401-11]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
SB 435 (2004) [19-4401-11]
1
Screw
2123030
2
Front Housing Support
3750330
3
Front Shock Absorber
3744290
4
Front Handle
4563560
5
Washer
2312150
6
Screw
2123140
7
Spacer
3750340
8
Transmission Housing
4563531
9
Hand Grip Housing Couple
8563540
10
Safety Lever
3743630
11
Spring
3654490
12
Throttle Lever
3743620
13
Knob
3749270
14
Stop Plate
3612710
15
Screw
2123070
16
Wire Sheath
3L3786200/1
17
Wire
123066005/0
18
Coil-Switch Cable (Red)
123065009/0
19
Earth Cable
123065008/0
20
Rear Shock Absorber
3744300
21
Screw
2135150
22
Nut
2432030
23
Screw
2135160
24
Screw
2126050
25
Ball Bearing
3112170
26
Seeger Ring
3353080
27
Transmission Hub Ass.Y Ø26
3L8520990/3
28
Clutch Drum Assy
3L4121861/1
29
Bearing Hub
3642191
30
Transmission Shaft Assy
4251400
31
Trasmission Pipe Assy (Ø26)
4251204
32
Washer
2312150
33
Screw
2135060
34
Screw
2135030
35
Line Cutter Blade
3615000
36
Nut
2432040
37
Washer
2312150
38
Safety cover Ass.Y
3L8563570/1
39
Harness
4253460
42
Screw
2135020
43
Throttle Cable Adjuster
1L3630600/1
44
Nut
2412090
51
Gear Case Assy Ø26
3L4252780/1
57
Screw
2135050
58
Screw
2653090
59
Screw
2653460
65
Oil seal
3121170
66
Use 3641700/1
1L3641700/1
67
Upper Ring Nut
3641640
68
Lower Ring Nut
3612640
69
Stabilizer
4560610
72
4 Teeth Disck
4611880
81
2 Hedges Nylon Head
4353240/1
