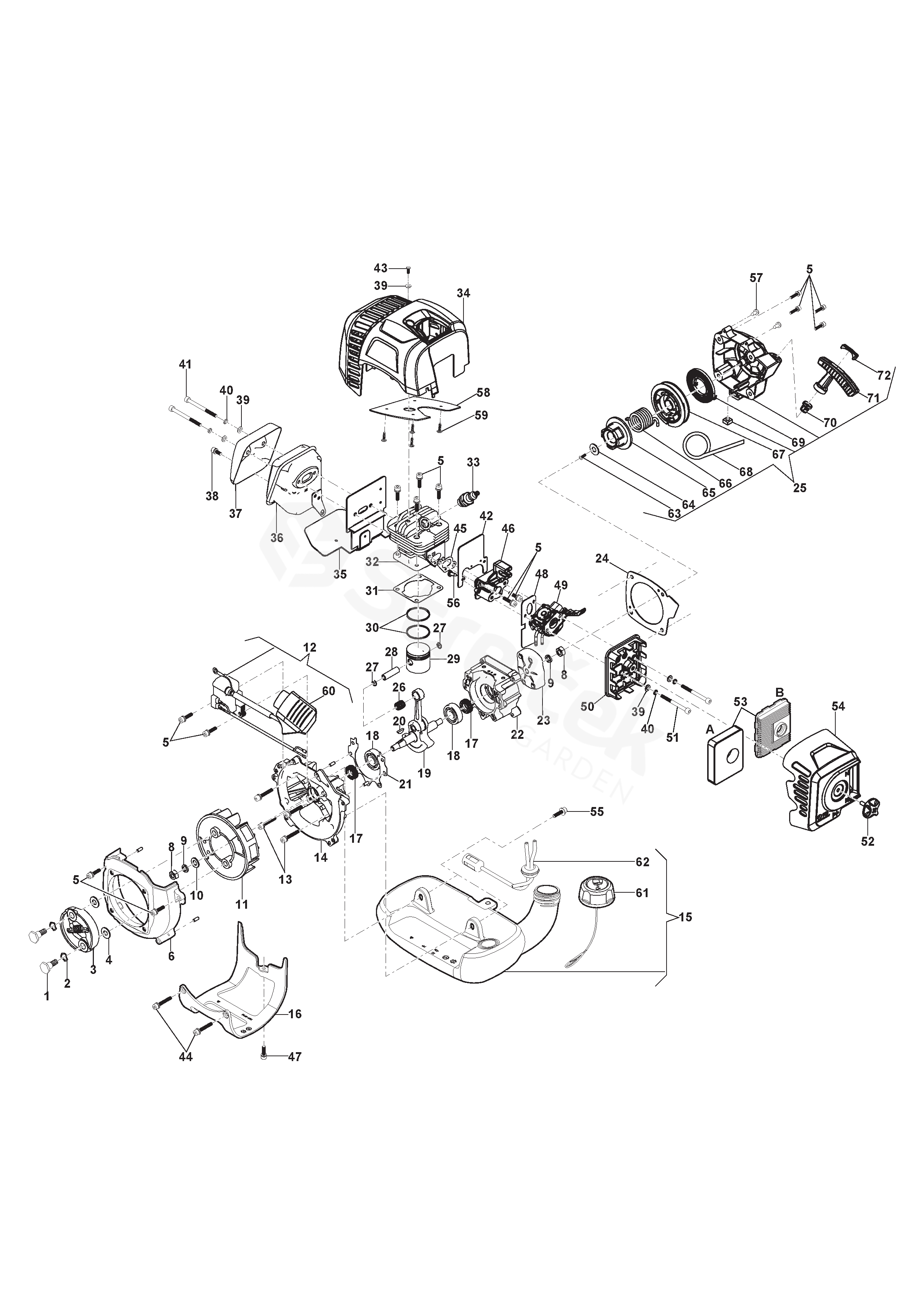

SBC 232 SBC 232 (2016)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SBC 232 (2016)

1	Screw	118804038/0
2	Washer	118804045/0
3	Clutch	118804000/0
4	Washer	118804046/0
5	Screw	112789008/0
6	Flywheel Cover	118804032/0
8	Nut	112293200/0
9	Elastic Washer	112369500/0
10	Washer	112521350/0
11	Flywheel	118804012/0
12	Ignition Assy	118804011/0
13	Screw	2135130
14	Crank Case	118804024/0
15	Fuel Tank Assy	118804003/0
16	Support	118803961/0
17	Seal Ring	118801188/0
18	Ball Bearing	3112030
19	Crankshaft	118803988/0
20	Flywheel Key	123072002/0
21	Crankcase Gasket	118804076/0
22	Crank Case	118804026/0
23	Starter Cup	118803996/0
24	Gasket	118804051/0
25	Starter Assy	118803994/0
26	Needle Bearing	118803997/0
27	Circlip	118804059/0
28	Piston Pin	118804041/0
29	Piston	118804031/0
30	Piston Ring	118804021/0
31	Cylinder Gasket	118804077/0
32	Cylinder	118804030/0
33	Spark Plug	3210024
34	Yellow Cylinder Cover	118803969/0
35	Muffler Gasket	118804084/0
36	Muffler	118803991/0
37	Muffler Guard	118804047/0
38	Screw	2135180
39	Washer	112521320/0
40	Grower	112581500/0
41	Outfit, Screws	6981283
42	Intake Manifold Gasket	118804053/0
43	Screw	112727796/0
44	Screw	2135120
45	Gasket	118804078/0
46	Intake Manifold	118804067/0
47	Outfit, Screws	6981102
48	Carburetor Gasket	118804082/0
49	Carburetor	118804007/0
50	Air Cleaner Base	118804063/0
51	Screw	2135250
52	Knob, Grey	118803174/0
53	Paper Filter B	118804547/0
54	Filter Cover Yellow	118803968/0
55	Screw	112760475/0
56	Screw	6981268
57	Screw	112727356/0
58	Air Guide	118804086/0
59	Screw	112727810/0
60	Spark Plug Cap	118803163/0
61	Oil Cap	322735152/0
62	Fuel Hose	118804006/0
63	Screw	112727790/0
64	Washer	112523020/0
65	Starter Cam	118803975/0
66	Starter Spring	118804061/0
67	Starter Pulley	118803976/0
68	Starter cord	118803181/0
69	Spring	118804060/0
70	Rope Guide	118804068/0
71	Starter Handle	118803984/0
72	Yellow Starter Plate	118804069/0
