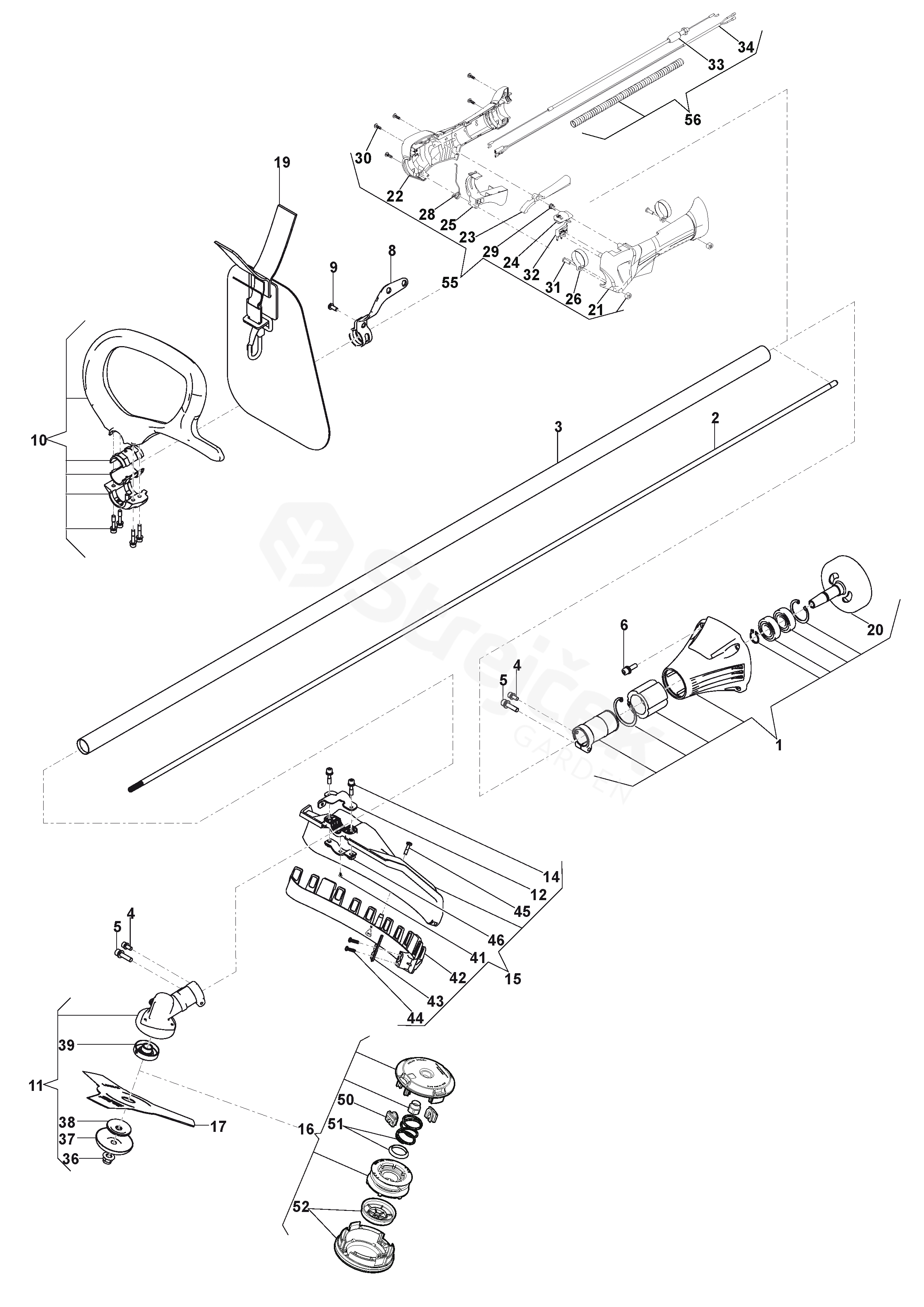

SBC 252 SBC 252 (2020)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SBC 252 (2020)

1	Support Transmission Assy	118804001/0
2	Drive Shaft	118804042/0
3	Transmission Pipe	118803959/0
4	Screw	6981145
6	Screw	112727801/0
8	Harness Support	118804057/0
9	Screw	2135180
10	Yellow Front Handgrip Assy	118803955/0
11	Gear Case Assy	118803998/0
12	Plate	118804054/0
14	Screw	2132180
15	Safety Cover Assy	118803954/1
16	Line Cutter Head	1911-9227-01
17	3 Teeth Disc	118801125/0
19	Harness	118804015/1
20	Clutch Drum	118804037/0
21	Yellow Left Handgrip	118803966/0
22	Yellow Right Handgrip	118803972/0
23	Switch	118803149/0
24	Switch	118803147/0
25	Throttle Lever, Yellow	118803150/0
26	Clamp	118803146/0
28	Spring	118803151/0
29	Spring	118803148/0
30	Screw	112727810/0
31	Screw	112726388/0
32	Switch	118804014/0
33	Throttle Cable	118803985/0
34	Stop Wire	118803155/0
36	Nut	2452090
37	Case Dust Cover	118804050/0
38	Lower Ring Nut	118804044/0
39	Upper Ring Nut	118804043/0
41	Screw	112727815/0
42	Support	118803202/0
43	Line Cutter Blade	118804056/0
44	Screw	6981149
45	Screw	112728531/0
46	Guard	118804058/0
50	Line Retainer	118804890/0
51	Spring	118804889/0
52	Cover + Knob	118804888/0
55	Handle Assy, Yellow	118804956/0
56	Cable Assy	118804957/0
