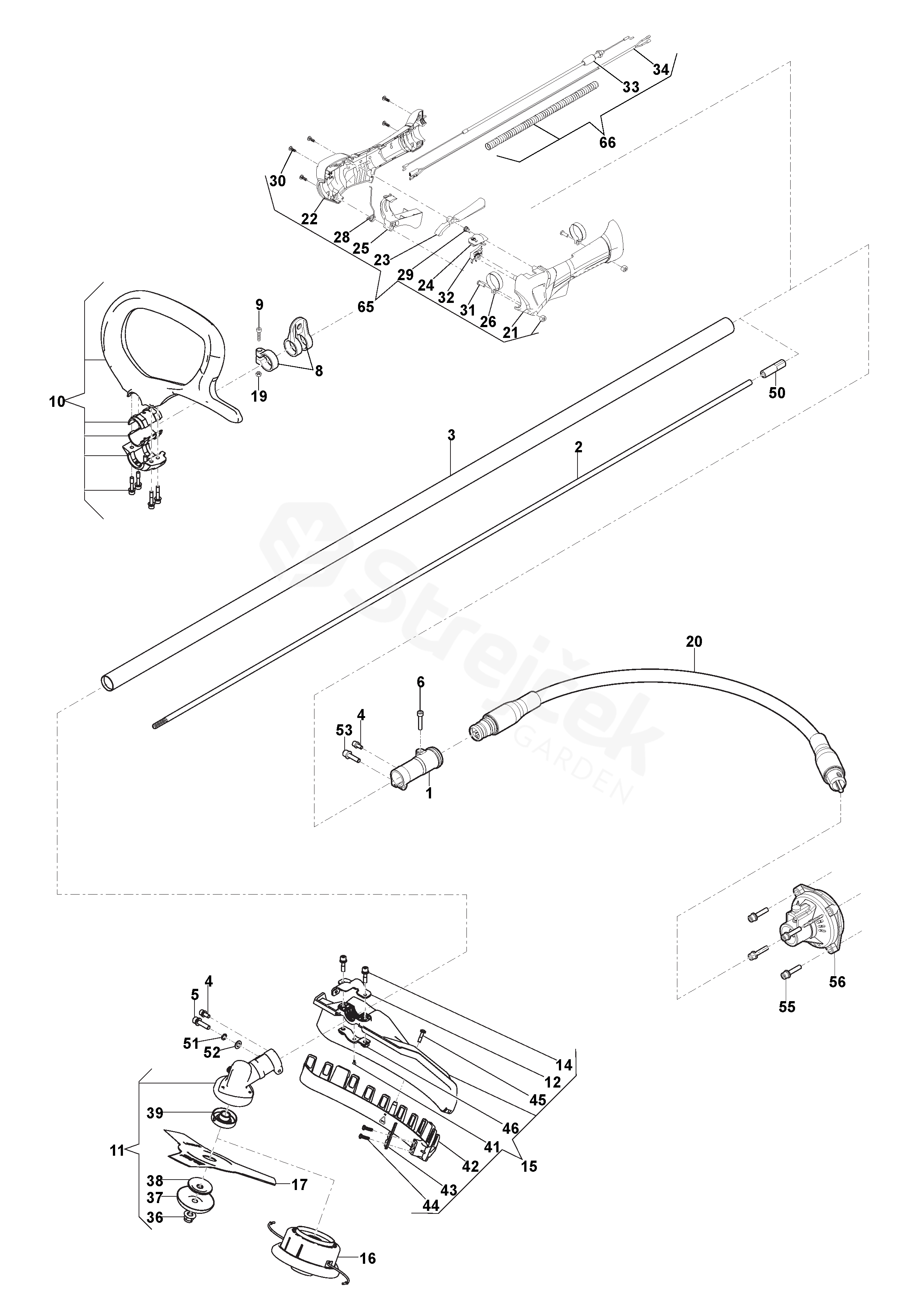

SBC 252 F SBC 252 F (2017)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SBC 252 F (2017)

1	Knapsack connecting pipe	118804582/0
2	Drive Shaft	118804584/0
3	Transmission Pipe	118804579/0
4	Screw	6981145
5	Screw	112728721/0
6	Screw	112727799/0
8	Harness Support	118801182/0
9	Screw	112727790/0
10	Yellow Front Handgrip Assy	118803955/0
11	Gear case assy	118801184/0
12	Plate	118804054/0
14	Screw	2132180
15	Safety Cover Assy	118803954/0
16	Nylon Head	1911-9218-01
17	3 Teeth Disc	118801125/0
19	Nut	112154330/0
20	Flexible Pipe and Shaft Assy	118804583/0
21	Yellow Left Handgrip	118803966/0
22	Yellow Right Handgrip	118803972/0
23	Switch	118803149/0
24	Switch	118803147/0
25	Throttle Lever, Yellow	118803150/0
26	Clamp	118803146/0
28	Spring	118803151/0
29	Spring	118803148/0
30	Screw	112727810/0
31	Screw	112726389/0
32	Switch	118804014/0
33	Throttle Cable	118804580/0
34	Stop Wire	118804581/0
36	Nut	2452090
37	Case Dust Cover	118803206/0
38	Lower Ring Nut	118803205/0
39	Upper Ring Nut	118803204/0
41	Screw	112727815/0
42	Support	118803202/0
43	Line Cutter Blade	118804056/0
44	Screw	6981149
45	Screw	112728531/0
46	Guard	118804058/0
50	Handle Joint	118804585/0
51	Grower	112582100/0
52	Washer	112521330/0
53	Outfit, Screws	6981102
55	Screw	112727799/0
56	Support Transmission Assy	118804568/0
65	Handle Assy, Yellow	118804956/0
66	Cable Assy	118804958/0
