Spare parts > STIGA > Trimmer/Brushcutter > SBC 627 KD SBC 627 KD (2015) > Engine
Back to

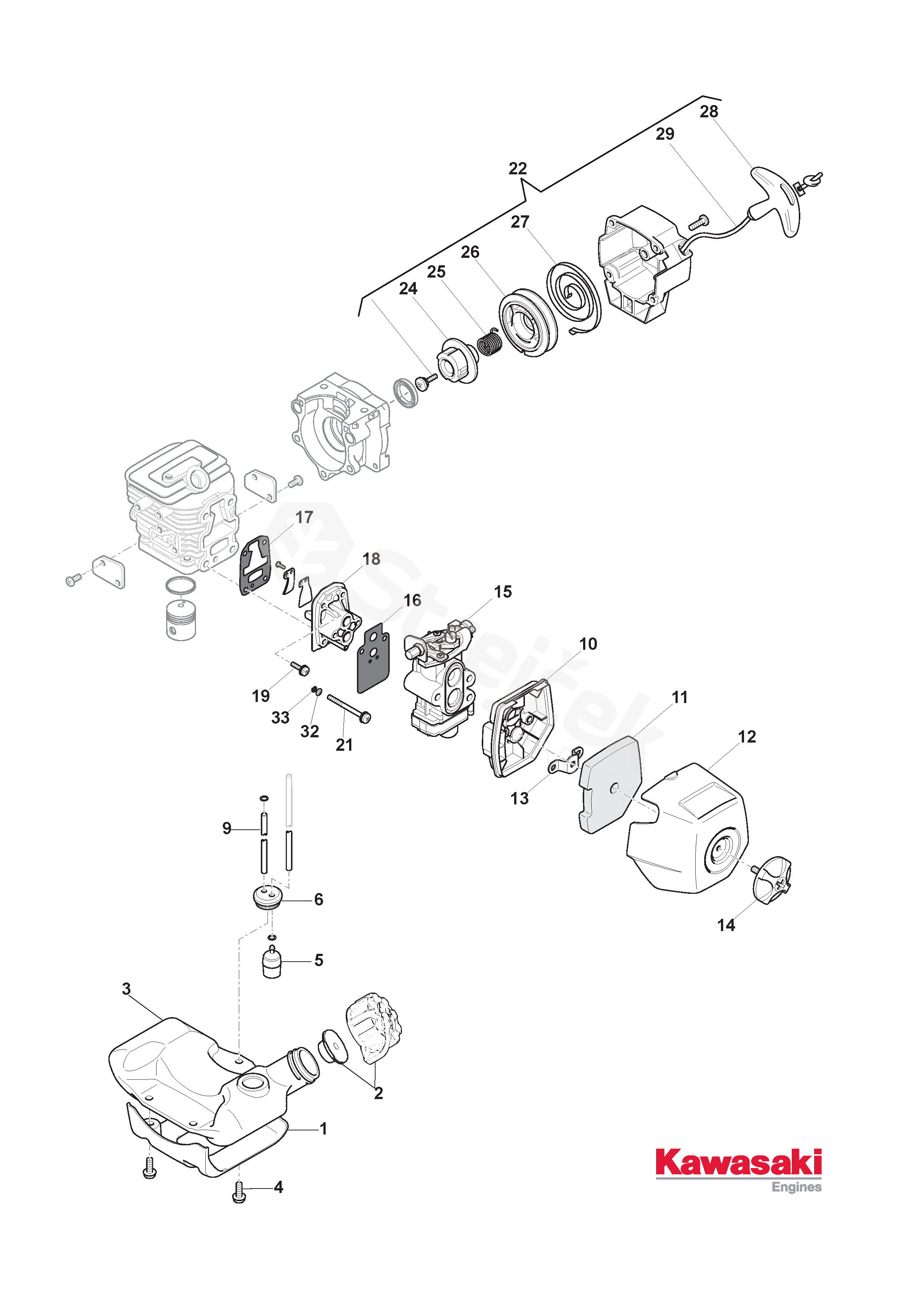

Engine
SBC 627 KD SBC 627 KD (2015)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SBC 627 KD (2015)
1 Tank Support 118801855/0
2 Oil Cap 118801957/0
3 Fuel Tank 118801890/0
4 Screw 2135030
5 Intake Filter 183520004/0
6 Grommet 118801926/0
9 Tube 118801999/0
10 Air Cleaner Base 118801962/0
11 Air Filter 118801767/0
12 Yellow Filter Cover 118801974/0
13 Baffle
From 01-September-2017 		118801834/0
14 Screw 118801939/0
15 Carburetor 118801825/0
16 Carburetor Gasket 118801969/0
17 Cylinder Gasket 118801965/0
18 Breather Valve Ass.Y 118801788/0
19 Screw 2135040
21 Screw
From 01-September-2018 		9950-0570-12
22 Starter Assy Black 118801876/0
24 Cam 118801864/0
25 Spring 118801996/0
26 Starter Pulley 118801900/0
27 Starter Spring 118801929/0
28 Starter Handle 118801860/0
29 Starter Rope
3X700 		118801904/0
32 Washer 2312020
33 Washer 2330020
