Spare parts - Partlist - SC 48 AE SC 48 AE (2017) - HH Chain saw Battery

Everything for your machines

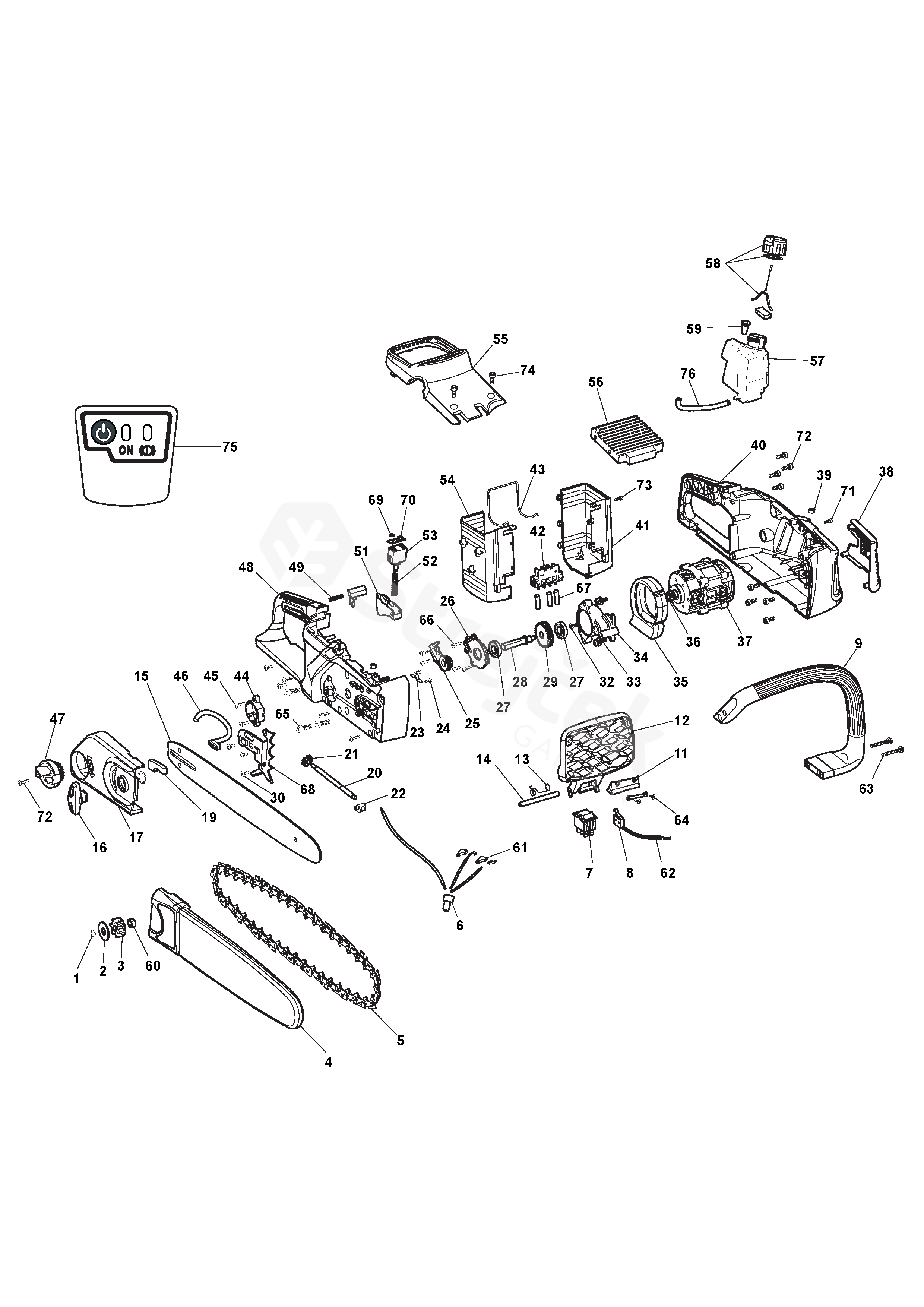

SC 48 AE SC 48 AE (2017)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SC 48 AE (2017)

1	Clamp	118810403/0
2	Washer	118810480/0
3	Sprocket	118803294/1
4	Chain Cover 14inch	4181297
5	Chain 14"-3/8"-0,050"-52E	1519-9116-01
6	Terminal	118803230/0
7	Switch	118803343/0
8	Switch	118803341/0
9	Front Handle	118803409/0
11	Guard	118803331/0
12	Guard	118803417/0
13	Spring	118803267/0
14	Brake Shaft	118803245/0
15	Bar 14inch	123900205/0
16	Knob, Yellow	118803463/0
17	Side cover	118803405/0
19	Washer	118803330/0
20	Gear	118803243/0
21	Gear	118803297/0
22	Screw	118803273/0
23	Spring	118803276/0
24	Screw	2122120
25	Oil Pump Assy	118803465/0
26	Gear Box Cover	118803248/0
27	Bearing	118804136/0
28	Output Shaft	118803261/0
29	Gear	118803259/0
30	Outfit, Screws	6981285
32	Screw	6985061
33	Screw	112727790/0
34	Gear box housing	118803247/0
35	Air outlet guide	118803314/0
36	Gear	118803254/0
37	Brushless motor	118803332/1
38	Left description housing	118803427/0
39	Nut	112292100/0
40	Left housing	118803447/0
41	Battery Housing, Left	118803312/0
42	Battery latch	118803302/0
43	Spring	118803250/0
44	Clamp	118803310/0
45	Screw	6981269
46	Oil Tube	118803325/0
47	Knob, Yellow	118803434/0
48	Right Housing	118803453/0
49	Spring	118803264/0
51	Trigger	118803448/0
52	Spring	118803266/0
53	Switch	118803339/0
54	Battery Housing, Right	118803311/0
55	Crankcase Grey	118803444/0
56	PCB components	118803468/0
57	Oil Tank	118803319/0
58	Oil Tank Cap	118803348/0
59	Valve	118803365/0
60	Spacer	118804141/0
61	Cross flag inserted sheath	118810389/0
62	Cable	118804135/0
63	Screw	2132530
64	Screw	1126-1049-01
65	Screw	2132590
67	Heat shrinkable tube	118804137/0
68	Spike	118804138/0
69	Light Mat	118804139/0
70	Starting Power Panel	118804140/0
71	Screw	112727810/0
72	Screw	123878021/0
73	Screw	112728449/0
74	Screw	2132110
75	Label, Stiga	114368603/0
76	Oil Hose	118810709/0
