Spare parts > STIGA > Chainsaw > SP 316 SP 316 (2017) > Engine
Back to

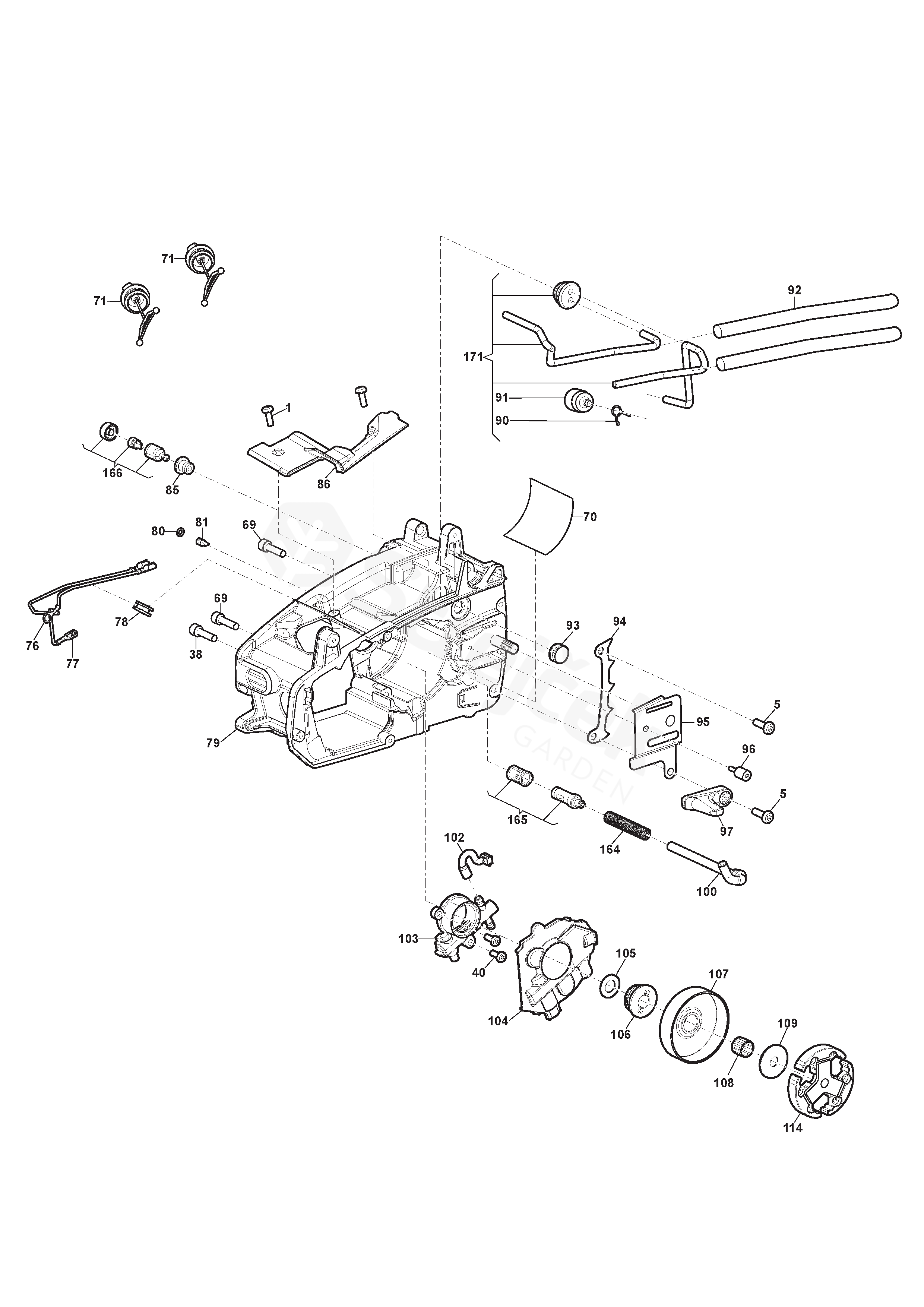

Engine
SP 316 SP 316 (2017)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SP 316 (2017)
1 Screw 123878121/0
5 Screw 118800189/0
38 Screw 2135030
40 Screw 123878021/0
69 Screw 2135040
70 Heat protection 118804730/0
71 Oil Tank Cap Assy 118804252/0
76 Electric Cable 118804731/0
77 Electric Cable 118804732/0
78 Wire Clip 118804733/0
79 Chassis 118804734/0
80 O-Ring 118804735/0
81 Nozzle 118804736/0
85 Grommet 118804737/0
86 Cable Cover 118804805/0
90 Clip 118804234/0
91 Fuel Filter 118804740/0
92 Corrugated Pipe 118804741/0
93 Cap 118804742/0
94 Spike 118804743/0
95 Internal Plate 118804744/0
96 Lead Screw 118804745/0
97 Chain Stopper 118804746/0
100 Oil pipe 118804747/0
102 Spray Nozzle 118804749/0
103 Oil Pump 118804750/0
104 Oil Pump Cover 118804751/0
105 Washer 118550608/0
106 Worm 118804752/0
107 3/8 Clutch Drum 118804753/0
108 Needle Bearing 123235001/0
109 Washer 118804818/0
114 Clutch 118804758/0
164 Oil pipe Spring 118804853/0
165 Oil Filter Assy 118804800/0
166 Breather Valve Assy 118804801/0
171 Fuel Tube Assy 118804820/0
