Spare parts > STIGA > Chainsaw > SP 340 SP 340 (2004) [15-4110-11] > Carburettor
Back to

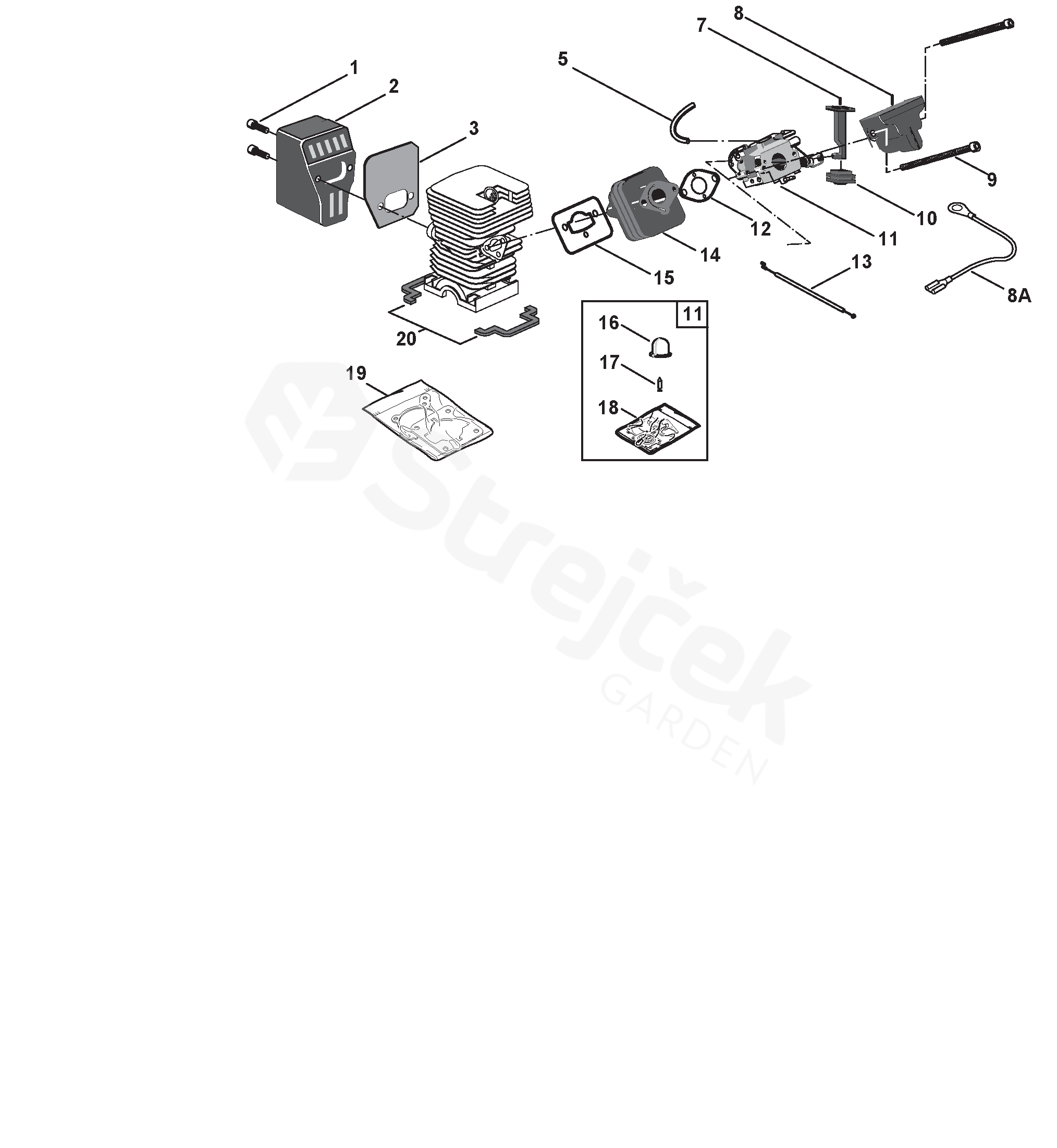

Carburettor
SP 340 SP 340 (2004) [15-4110-11]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SP 340 (2004) [15-4110-11]
1 Screw 2135040
2 Muffler Assy 4122040
3 Muffler Gasket 3724270
5 Fuel Line 3786130
7 Choke Lever 3743407
8 Earth Cable 3211690
9 Screw 2135210
10 Grommet Air-Lever 3745650
11 Carburettor 4253910
12 Heat Block 3724160
13 Throttle Cable With Sheath 4252480
14 Intake Manifold 3750180
15 Intake Manifold Gasket 3724300
16 Air Purge Pump 3744740
17 Inlet Needle 3630680
18 Diaphragm Gasket Set 8724091
19 Gasket Set 8724300
20 Cylinder Gasket 3721560
