Spare parts > STIGA > Chainsaw > SP 370 SP 370 (2005) [122413000] > Crankshaft and cylinder
Back to

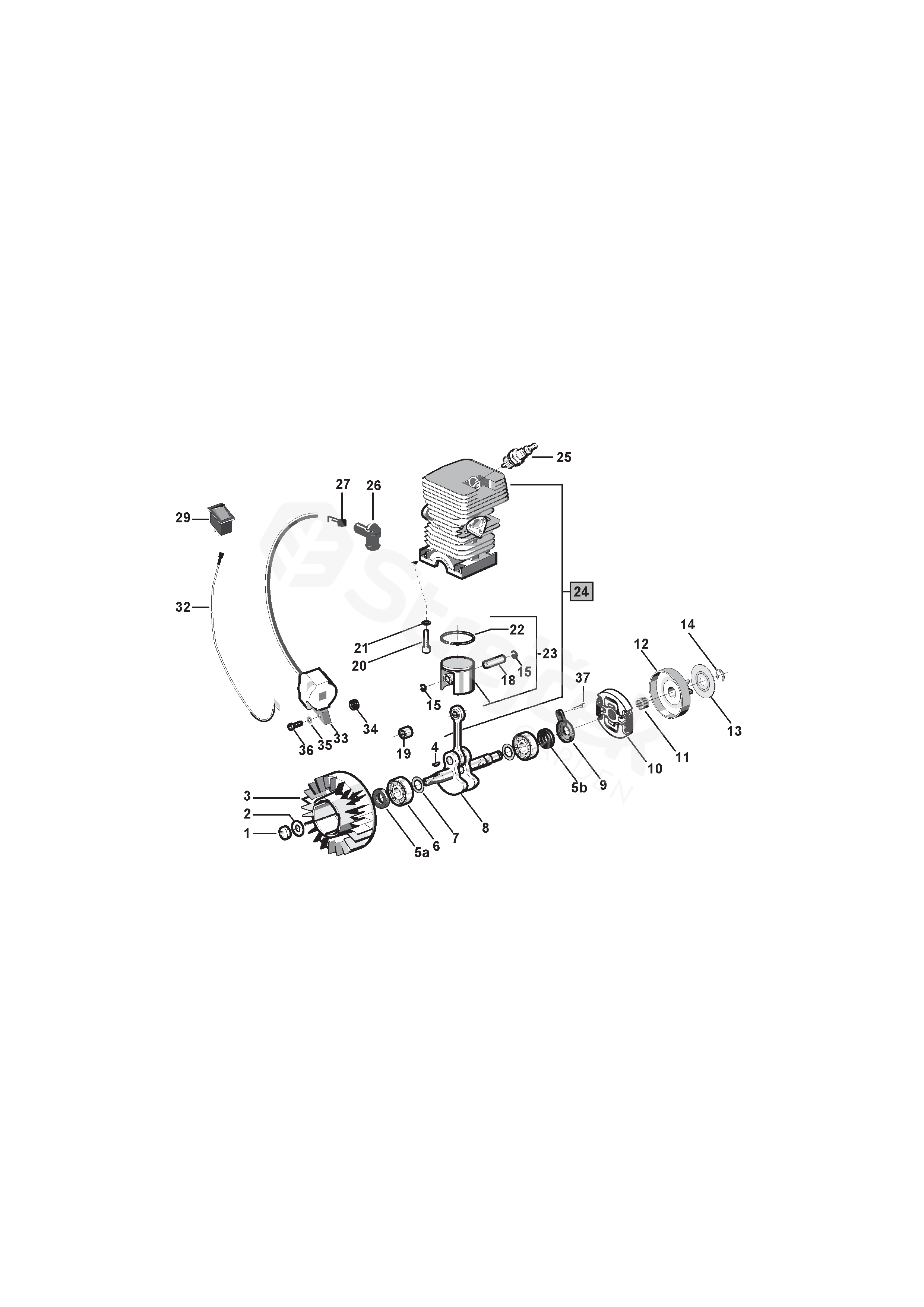

Crankshaft and cylinder
SP 370 SP 370 (2005) [122413000]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SP 370 (2005) [122413000]
1 Nut 2432050
2 Flat washer 2312080
3 Flywheel 4541210
4 Flywheel Key 3151010
6 Ball Bearing 3112030
7 Washer 3614480
8 Crankshaft 4251960
9 Oil Pump Cap 3750311
10 Clutch Ass.Y 3L4252200/1
11 Needle Bearing 3114190
13 Washer 3612620
14 Circlip 3351110
15 Circlip Ring 3356050
18 Piston Pin 3158260
19 Needle Bearing 3116100
20 Screw 2135030
21 Washer 2330020
22 Piston Ring Ø 39 3123220
23 Piston Assy 3L8541360/1
24 Cylinder - Piston Ass'Y 3L8541370/1
25 Spark Plug 3210024
26 Spark Plug Cap 4252550
27 Spark Plug Spring 3657050
29 Stop Switch 3210970
32 Ground Cable 3211380
33 Electronic Coil 3L3211350/1
34 Spring 3654480
35 Washer 2321150
36 Screw 2123140
37 Screw 2123020
