Spare parts > STIGA > Chainsaw > SP 410 SP 410 (2001) [15-4114-11] > Crankshaft and cylinder
Back to

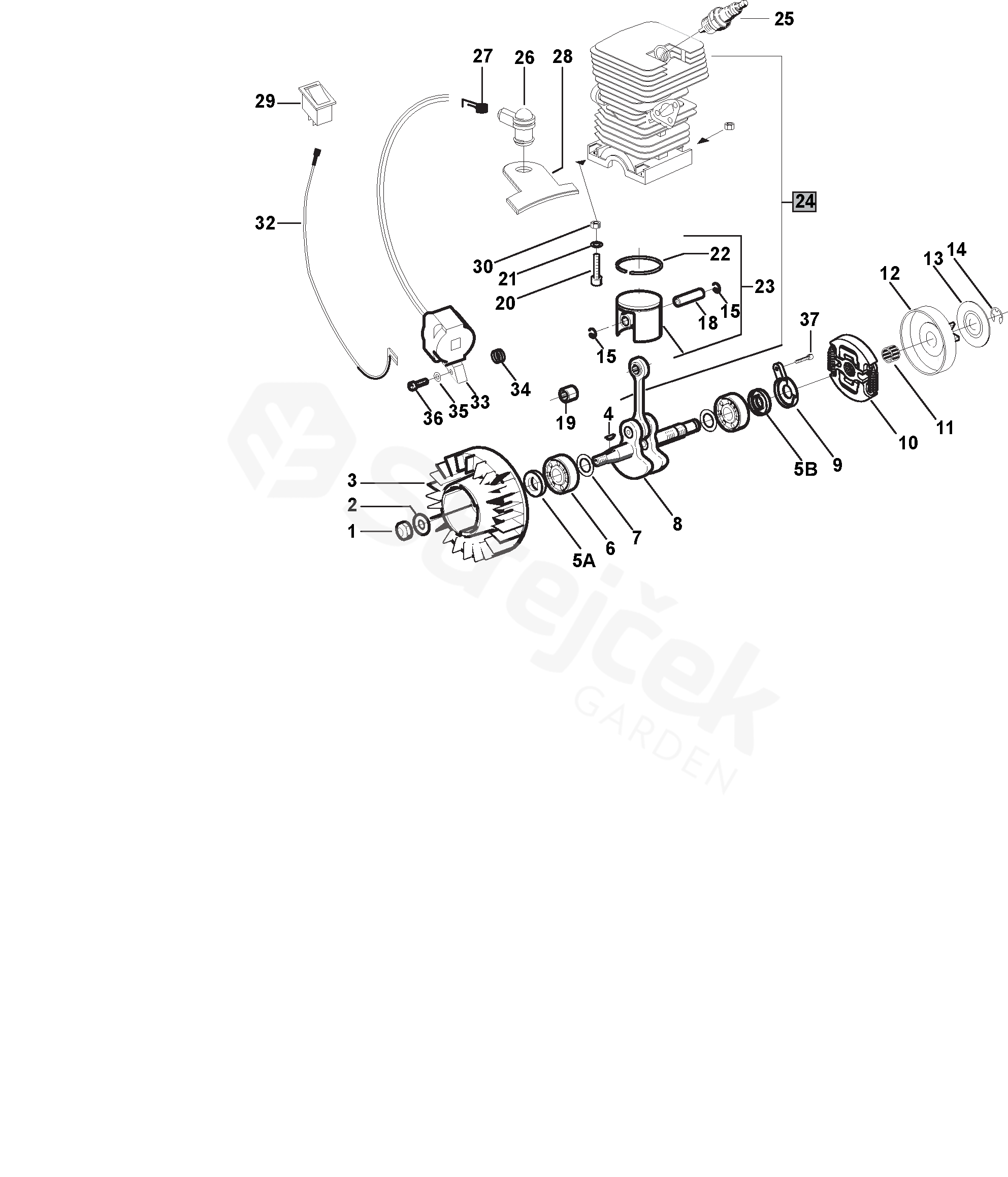

Crankshaft and cylinder
SP 410 SP 410 (2001) [15-4114-11]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SP 410 (2001) [15-4114-11]
1 Nut 2432050
2 Flat washer 2312080
3 Flywheel 4541210
4 Flywheel Key 3151010
6 Ball Bearing 3112030
7 Washer 3614480
8 Crankshaft 4251960
9 Oil Pump Cap 3750311
10 Clutch Ass.Y 4252200
11 Needle Bearing 3114190
13 Washer 3612620
14 Circlip 3351110
15 Circlip Ring 3356050
18 Piston Pin 3158260
19 Needle Bearing 3116100
20 Screw 2135030
21 Washer 2330020
22 Piston Ring Ø 39 3123220
23 Nut 2432040
24 Cylinder - Piston Ass'Y 8541370
25 Spark Plug 3210021
26 Spark Plug Cap 4252550
27 Spark Plug Spring 3657050
28 Protection 3721530
29 Stop Switch 3210970
30 Nut 2432040
32 Ground Cable 3211380
33 Engelsk Benämning 2002 3211350
34 Spring 3654480
35 Washer 2321150
36 Screw 2123140
37 Screw 2123020
