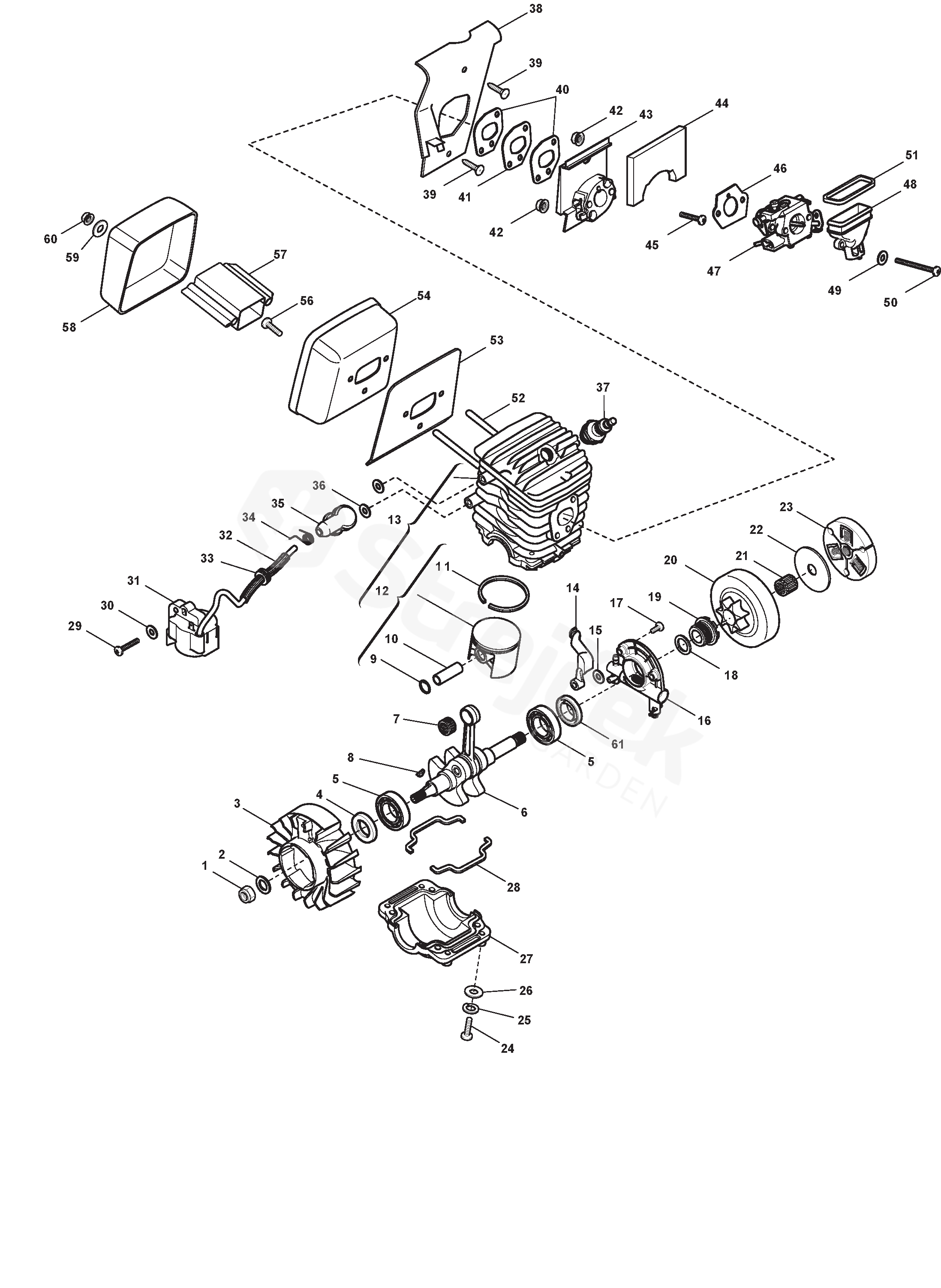

Spare parts - Partlist - SP 480 SP 480 (2006) [15-4148-31] - Engine

Everything for your machines

SP 480 SP 480 (2006) [15-4148-31]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SP 480 (2006) [15-4148-31]

1	Nut	2432050
2	Flat washer	2312080
3	Flywheel	4541210
4	Or Ring	119035151/0
5	Ball Bearing	3112040
6	Crankshaft	323020006/0
7	Needle Bearing	3114190
8	Flywheel Key	3151010
9	Circlip	3356020
10	Piston Pin	3158010
11	Piston Ring Ø 44	123204000/0
12	Piston Assy	383590001/0
13	Cil.-Piston Assy	383070001/0
14	Grommet	323275001/0
15	Flat washer	2312090
16	Oil Pump	383594501/0
17	Screw	112728220/0
18	Washer	123657000/0
19	Screw	323878000/0
20	Drum Ass'Y, Clutch	383050001/0
21	Needle Bearing	3114070
22	Washer	323657001/1
23	Clutch Ass.Y	383215000/0
24	Screw	2135060
25	Washer	2330020
27	Stabilizer	323082000/0
28	Gasket	323280000/0
29	Screw	2132550
30	Washer	2321150
31	Electronic Coil	123044000/0
32	Wire Sheath	3782470
33	Grommet	3745130
34	Spark Plug Spring	3657050
35	Spark Plug Cap	3748880
36	Washer	2317110
37	Spark Plug	3210024
38	Air Cylinder Conveyor	323107500/0
40	Gasket	123280003/0
41	Heat Block	123160050/0
42	Nut	2670290
43	Intake Manifold	323073500/0
44	Sponge Insulating Separator	323725000/0
45	Screw	2135050
46	Gasket	123280004/0
47	Carburetor	123054001/3
48	Intake Filter Manifold	323073501/0
50	Screw	2135200
51	Gasket	323280001/0
52	Screw	123878002/0
53	Muffler Gasket	123280005/0
54	Muffler Bottom	323230001/0
56	Screw	2135180
57	Muffler Inner Duct	323075000/0
58	Muffler Cover	323109500/0
60	Nut	2432040
61	Bearing	119035153/0
