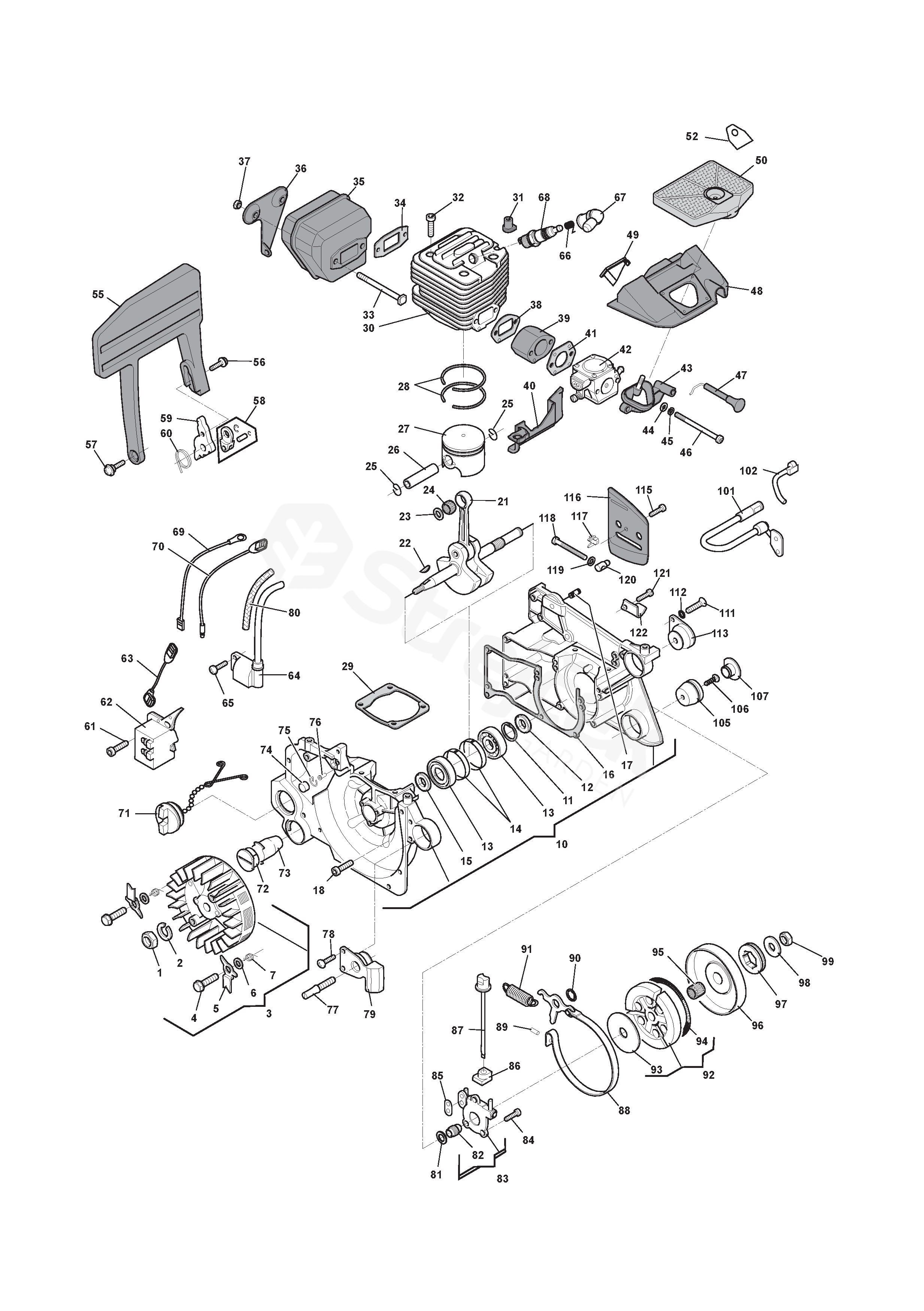

Spare parts - Partlist - SP 680 SP 680 (2006) [226818002/06] - Engine

Everything for your machines

SP 680 SP 680 (2006) [226818002/06]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SP 680 (2006) [226818002/06]

1	Nut	6995020
2	Washer	6995014
3	Flywheel Ass.Y	6995056
4	Screw	6995075
5	Starter Hook	6995130
6	Washer	6995132
7	Spring	6995098
10	Crankcase Assy	6995151
11	Elastic Ring	6995017
12	Seal Ring	6995165
13	Bearing	6995166
14	Washer	6995029
15	Seal Ring	6995084
16	Crankcase Gasket	6995139
17	Stud	6995028
18	Screw	6995070
21	Crankshaft	6995042
22	Flywheel Key	6995018
23	Washer	6995041
24	Bearing	6995021
25	Washer, Piston Pin	6995093
26	Piston Pin	6995129
27	Piston	6995054
28	Piston Ring	6995055
29	Cylinder Gasket	6995027
30	Cylinder	6995136
31	Grommet	6995100
32	Screw	6995070
33	Screw	6995103
34	Muffler Gasket	6995102
35	Muffler	6995025
36	Deflector	6995101
37	Nut	6995064
38	Intake Manifold Gasket	6995137
39	Intake Manifold	6995053
40	Air Conveyor	6995112
41	Intake Carburator Gasket	6995138
42	Carburetor	6995149
43	Air Manifold	6995126
44	Washer	123657003/0
45	Washer	6995003
46	Screw	6995001
47	Choke Lever	6995051
48	Air Filter Holder	6995150
49	Cap	6995026
50	Air Filter	6995146
52	Plate	6995145
55	Hand Guard Assy	6995148
56	Screw	6995062
57	Screw	6995142
58	Retainer	6995147
59	Lever	6995058
60	Spring	6995108
61	Screw	6995083
62	Magnet	6995141
63	Cable	6995046
64	Ignition Ass.y	6995045
65	Screw	6995008
66	Spark Plug Spring	6995022
67	Spark Plug Cover	6995066
68	Spark Plug	3210024
69	Coil-Switch Cable	6995047
70	Earth Cable	6995048
71	Tank Cap	6995109
72	Welch Plug	6995155
73	Shock Absorber	6995036
74	Valve	6995087
75	Retainer	6995088
76	Valve	6995081
77	Pin	6995040
78	Screw	6995031
79	Shock Absorber	6995037
80	Jacket Tube	6995065
81	Washer	6995019
82	Screw	6995119
83	Oil Pump Assy	6995140
84	Screw	6995011
85	Gasket	6995120
86	Grommet	6995121
87	Pin	6995122
88	Brake Band	6995106
89	Roller	123665001/0
90	Elastic Ring	6995015
91	Brake Spring	6995059
92	Clutch Ass.Y	6995043
93	Washer	6995044
94	Spring	6995095
95	Needle Bearing	6995079
96	Clutch Drum Assy	6995094
97	Gear Assy	6995128
98	Washer	6995096
99	Nut	6995074
101	Filter Intank Assy With Pipe	6995104
102	Oil Tube Outlet	6995105
105	Shock Absorber	6995038
106	Screw	6995023
107	Cap	6995068
111	Screw	6995007
112	Washer	6995077
113	Shock Absorber	6995039
115	Screw	6995006
116	Bar Plate	6995117
117	Screw	6995086
118	Screw	6995085
119	Washer	123657003/0
120	Chain Tightener Block	6995078
121	Screw	6995031
122	Chain Guard	6995030
