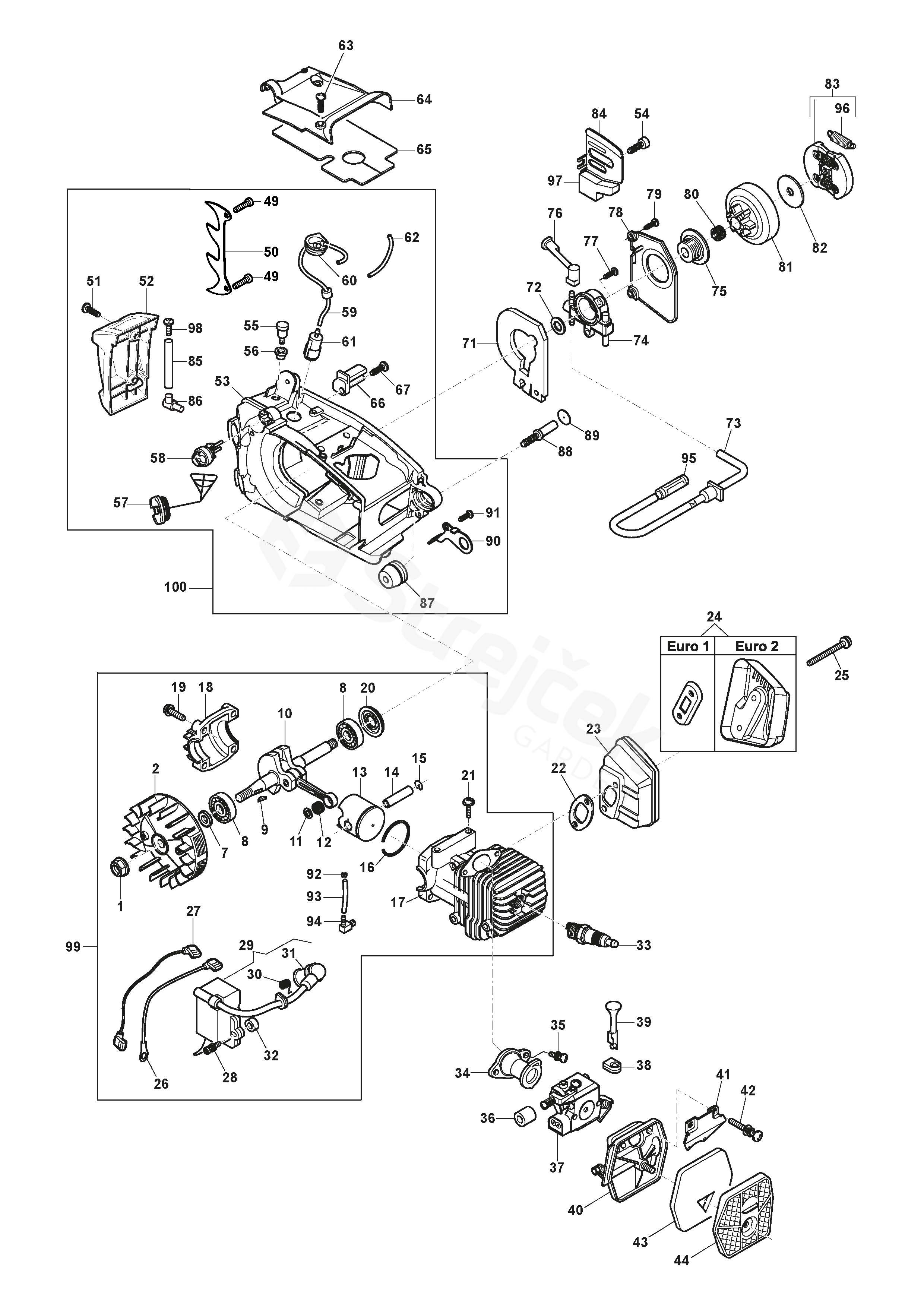

Spare parts - Partlist - SPR 255 SPR 255 (2013) - Engine

Everything for your machines

SPR 255 SPR 255 (2013)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SPR 255 (2013)

1	Nut	123120008/0
2	Flywheel Ass.Y Euro-1	183880005/0
7	Seal Ring	119035162/0
8	Ball Bearing	114215219/0
9	Key	118800959/0
10	Crankshaft	123020030/0
11	Washer	123652505/0
12	Needle Bearing	123235008/0
13	Piston	123590012/0
14	Piston Pin	123760006/0
15	Circlip	123202006/0
16	Piston Ring	123204014/0
17	Cylinder Assy Euro-1	183070007/0
18	Stabilizer	123082006/0
19	Screw	123878076/0
20	Seal Ring	119035163/0
21	Screw	123878081/0
22	Muffler Gasket	123280067/0
23	Muffler Euro-1	183740018/0
24	Washer Euro-1	118801578/0
25	Screw	123878078/0
26	Earth Cable	6995210
27	Stop Wire	6995227
28	Screw	123878079/0
29	Electronic Coil Euro-1	183044001/0
30	Spark Plug Spring	6995022
31	Spark Plug Cover	6995066
32	Spacer	123160063/0
33	Spark Plug	3210024
34	Intake Manifold Assy	123073516/0
35	Screw	123878077/0
36	Sponge Gasket	118801153/0
37	Carburetor	123054034/0
38	Grommet Air-Lever	123275025/0
39	Air Lever, Black	123315093/0
40	Air Cleaner Base	118801588/0
41	Plate	123543002/0
42	Screw	123878086/0
43	Air Filter	123220014/0
44	Cleaner Cover	118801589/0
49	Screw	123878122/0
50	Spike	118550596/0
51	Screw	123878008/0
52	Front Cover, Yellow	118801596/0
53	Crankcase Ass.Y Black	118802270/0
54	Screw	6995187
55	Breather Valve Assy	183875003/0
56	Grommet	123275024/0
57	Cap Assy, Black	118804552/0
58	Primer	118804231/0
59	Pipe	123867019/0
60	Grommet	123650004/0
61	Fuel Pickup Assy	183520007/0
62	Pipe	118801532/0
63	Screw	123878082/0
64	Upper Cover Yellow	118801579/0
65	Guard	123600072/0
66	Chain Guard	123202007/0
67	Screw	123878093/0
71	Gasket	123600073/0
72	Washer	123652506/0
73	Pipe	123867020/0
74	Oil Pump Assy	183594508/0
75	Screw	123878083/0
76	Pipe	123867024/0
77	Screw	123878084/0
78	Cover Pump	123109577/0
79	Screw	123878080/0
80	Needle Bearing	123235009/0
81	Clutch Drum Assy 10"- 3/8	123050007/0
82	Sprocket Washer	123657011/0
83	Clutch Ass.Y	183215008/0
84	Plate	123311009/0
85	Pickup Oil	118800255/0
86	Nozzle	118801162/0
87	Shock Absorber	123275027/0
88	Screw	123878093/0
89	Cap, Black	123790022/0
90	Clamp	123208412/0
91	Screw	123878080/0
92	Fair Led	123206852/0
93	Pipe	123867018/0
94	Joint	118803594/0
95	Fuel Pickup Assy	123220013/0
96	Clutch Spring	123430593/0
97	Guard	123600074/0
98	Screw	112728524/0
99	Engine Short Block Only for Euro-2; From S/N 19AC1CHA102285	118804964/0
100	Base Components Assy Only in Yellow Color	118804965/0
