Spare parts > STIGA > Hedgecutter > SH45 SH45 (1997) > Hedge Cutter Engine
Back to

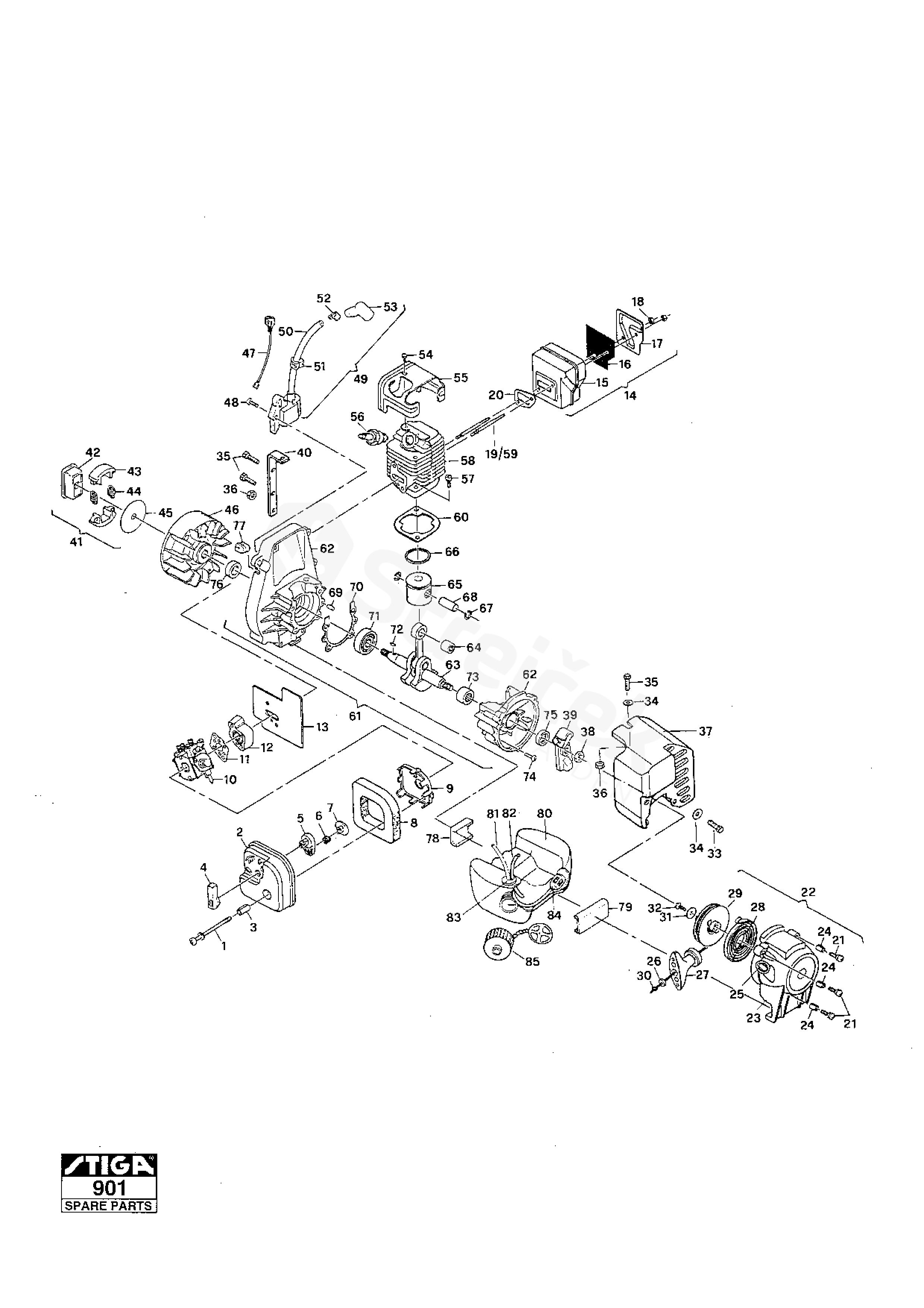

Hedge Cutter Engine
SH45 SH45 (1997)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SH45 (1997)
1 Screw M224327
2 Air choke cover M223196
3 Insert-Cover M219023
4 Choke Kit
Inkl.pos 5-7 		M223520
6 Spring M219016
8 Air Filter M219145
9 Air Box M222758
10 Carburettor
Walbro WT441 		M323702-04
11 Gasket M224148
12 Insulator M223984
13 Gasket M223986
14 Muffler Assy M300630-01
15 Muffler M301833-01
16 Screen Spark Arrestor M322018
17 Muffler Guard M322231
18 Nut M235642
20 Muffler Gasket M323829
21 Screw M216022
22 Starter Assy M219590
23 Starter carter M223331
24 Spacer M219585
25 Rope Guide M218932
26 Washer M218941
27 Starter Handle M216792
28 Starter Spring M300474
29 Drum + Rope M301252
30 Starter Rope
3 x 910 mm 		M216093
31 Washer M216590
32 Screw M215874
33 Screw M228908
34 Washer M235612
35 Screw M228957
36 Nut M235431
37 Muffler Protection M229103
38 Nut M216583
39 Starter Pawl M225037
40 Plate M228884
41 Clutch Ass.Y M217554
42 Clutch Rotor M215536
43 Clutch Shoe M215538
44 Clutch Spring M223770
45 Plate-Side M215539
46 Flywheel M222308
47 Switch Wires M219383
48 Screw M216022
49 Ignition Assy M302138
50 Spark Plug Wire M223884
51 Grommet M215533
52 Connector M235433
53 Boot M235922
54 Screw M213178
55 Cylinder Cover M215540-01
56 Spark Plug (Dj8J)
Champion DJ8J 		9400-0261-00
57 Screw M217320
58 Cylinder Assy M224448-01
59 Bolt M323419
60 Cylinder Gasket M323716
61 Crankcase Assy M302151
62 Carter Kit M302026
63 Crankshaft M302584
64 Needle Bearing M323930
65 Piston Assy M301443
66 Piston Ring M323611
67 Snap Ring M111026
68 Piston Pin M218275
69 Pin M213191
70 Crankcase Gasket M215545
71 Ball Bearing M216143
72 Flywheel Key M102164
73 Bearing shaft M213282
74 Screw M216027
75 Oil seal M83859
76 Seal M216500
77 Grommet M215541
78 Cushion Fuel Tank M217390
79 Cushion Fuel Tank M217382
80 Fuel Tank Assy M241106
81 Fuel Tube M229132
82 Fuel Tube M227139
83 Grommet M235675
84 Fuel Filter M93720
85 Fuel Cap M223508
