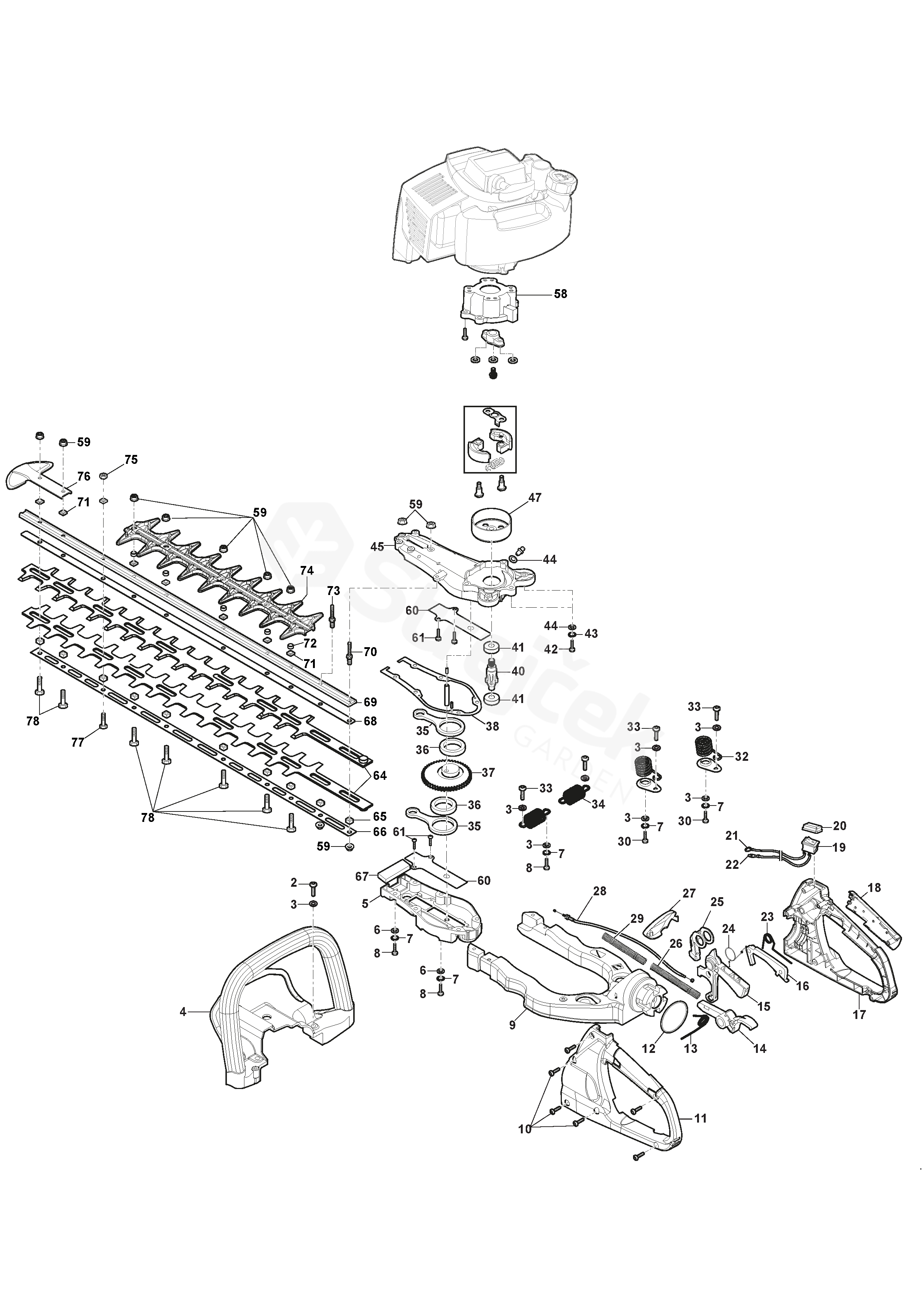

SHT 660 K SHT 660 K (2017)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SHT 660 K (2017)

2	Screw	6981427
3	Washer	2312020
4	Front Handle Ass.Y	118802420/0
5	Cover	118802427/0
6	Grower	112581500/0
7	Washer	112521320/0
8	Screw	112789008/0
9	Carter	118802421/0
10	Screw	112728099/1
11	Rear Cover, Left	118802432/0
12	O-Ring	118804668/0
13	Spring	118802439/0
14	Lever	118802438/0
15	Throttle Lever	118802433/0
16	Throttle Stop Lever	118802436/0
17	Rear Cover, Right	118802431/0
18	Handle Cover	118802440/0
19	Switch	118800202/0
20	Water resistant cap	118802419/0
21	Earth Cable	118802454/0
22	Connection Wire	118802453/0
23	Spring	118802437/0
24	Spring	118802435/0
25	Cap	118802434/0
26	Wire Sheath	118802425/0
27	Cover	118802422/0
28	Wire Sheath	118802425/0
29	Throttle Cable	118802452/0
30	Screw	112788910/0
32	Spring	118802424/0
33	Screw	6981425
34	Spring	118802423/0
35	Connecting Rod	123041502/0
36	Bearing	114215223/0
37	Gear Assy	123664000/0
38	Crankcase Gasket	123280082/0
40	Shaft	118802429/0
41	Bearing	119216035/0
42	Screw	2132180
43	Grower	112582100/0
44	Washer	112521330/0
45	Gear Box	118802426/0
47	Clutch Drum	118802430/0
58	Flange	118802455/0
59	Nut	112154330/0
60	Flange	123208418/0
61	Screw	112726388/0
64	Blade	118802447/0
65	Bushing	123044222/0
66	Plate	118802444/0
67	Felt	118802428/0
68	Blade Pad	118802443/0
69	Plate	118802442/0
70	Double Screw	118803934/0
71	Nut	112360420/0
72	Bushing	118802445/0
73	Double Screw	118803934/0
74	Blade Protection Plate	118802441/0
75	Nut	112291000/0
76	Protection	118802446/0
77	Screw	112788910/0
78	Screw	112789020/0
