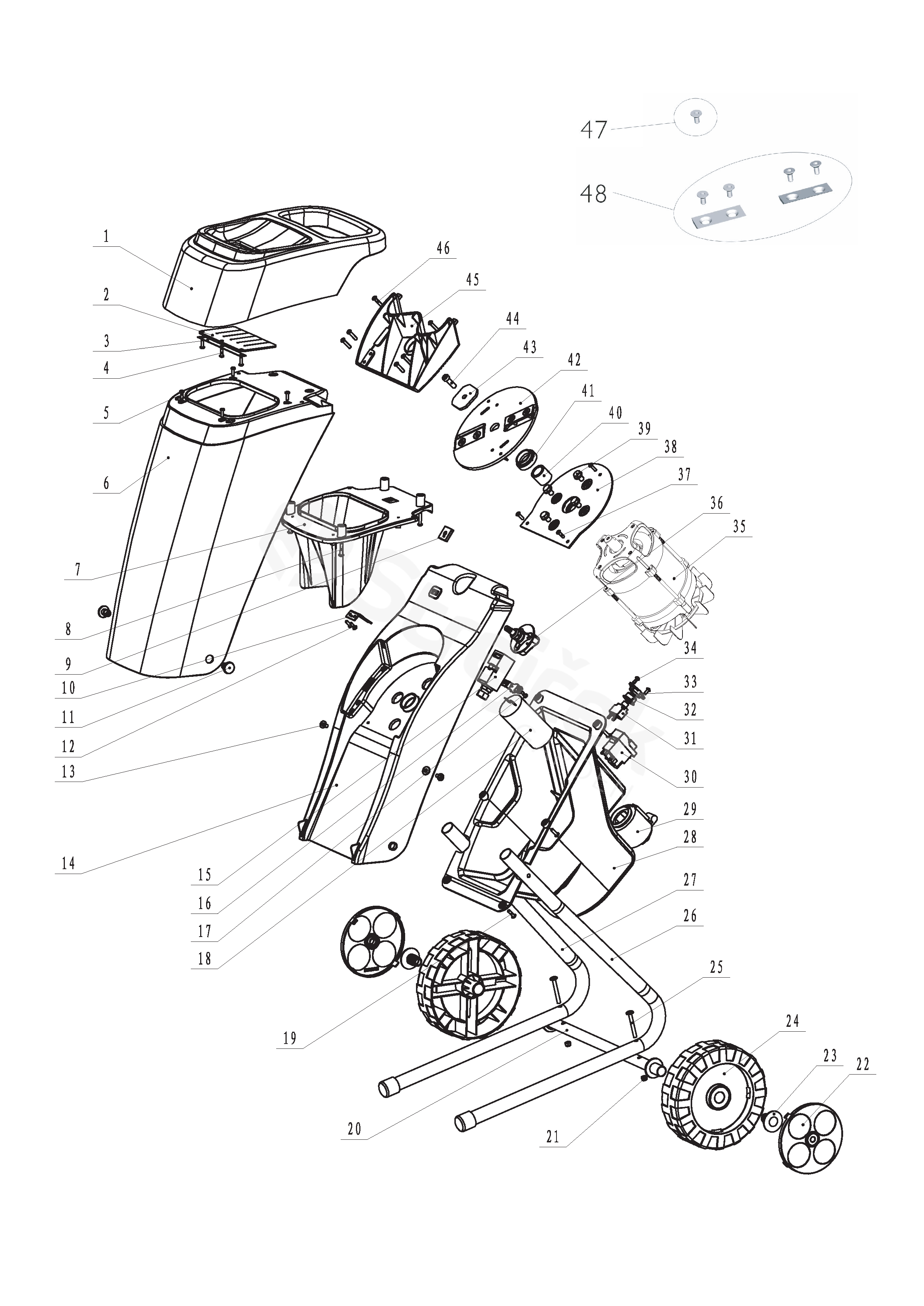

BIO POWER BIO POWER (2007) [17-2720-11]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For BIO POWER (2007) [17-2720-11]

1	Conveyor Inlet	1716-0086-01
2	Deflector	1716-0113-01
3	Washer	1716-0107-01
4	Screw	1716-0005-01
5	Screw	9847-8025-16
6	Front Cover Yellow	1716-0087-01
7	Conveyor	1716-0092-01
8	Screw	9847-8025-16
9	Nut	1716-0116-01
10	Key	1716-0115-01
11	Screw	1716-0085-01
12	Screw	1716-0005-01
13	Screw	1716-0060-01
14	Plate	1716-0088-01
15	Switch	1716-0072-01
16	Plate	1716-0090-01
17	Screw	9847-8025-16
18	Capacitor	1716-0129-01
19	Screw	1716-0007-01
20	Wheel Shaft	1716-0101-01
21	Nut	9799-0631-02
22	Hub Cap Yellow	1716-0054-01
23	Pin	1716-0084-01
24	Wheel	1716-0091-01
25	Screw	9948-0655-16
26	Support, L Wheel	1716-0117-01
27	Support, R Wheel	1716-0118-01
28	Cover	1716-0089-01
29	Cap	1716-0119-01
30	Microswitch	1716-0071-01
31	Protection Cover	1716-0157-01
32	Protection	1716-0068-01
33	Button	1716-0082-01
34	Screw	1716-0062-01
35	Motor 2100W	1716-0195-01
36	Knob	1716-0114-01
37	Screw	9847-7925-16
38	Plate	1716-0111-01
39	Screw	1716-0035-01
40	Coupling	1716-0109-01
41	Seal Ring	1716-0069-01
42	Blade Support	1716-0105-01
43	Washer	1716-0110-01
44	Screw	1716-0058-01
45	Plate	1716-0112-01
46	Screw	1716-0005-01
47	Screw	1716-0059-01
48	Blade kit 2 kniv+4 skruv	1716-0108-01
