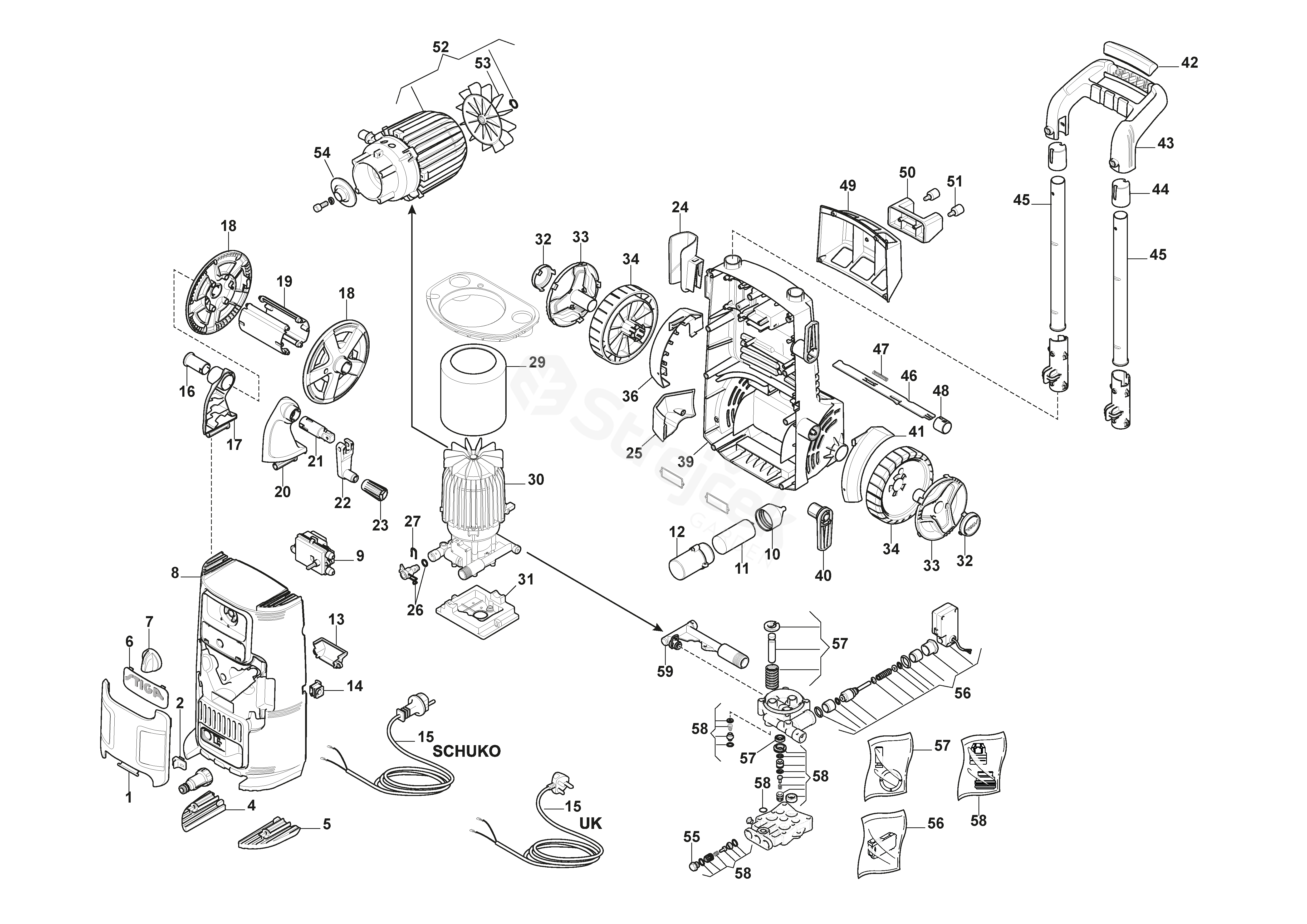

HPS 345 R HPS 345 R (2019)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For HPS 345 R (2019)

1	Guard	118821037/0
2	Lever	118821013/0
4	Support	118821046/0
5	Support	118821040/0
6	Guard	118821041/0
7	Knob	118821006/0
8	Casing	118821036/0
9	Switch	118821005/0
10	Guard	118821020/0
11	Capacitor	118820936/0
12	Capacitor Carrier	118821019/0
13	Guard	118821045/0
14	Cable Gland	118820932/0
15	Power Cord Assy (Schuko)	118820938/0
16	Guard	118821066/0
17	Bracket	118821039/0
18	Plate	118820985/0
19	Support	118820993/0
20	Bracket	118821038/0
21	Pin	118820989/0
22	Lever	118820983/0
23	Knob	118820984/0
24	Accessories Carrier	118821069/0
25	Accessories Carrier	118821047/0
26	Fitting	118821021/0
27	Fork	118820966/0
29	Conveyor	118821081/0
30	Electric Pump Assembly	118821071/0
31	Support	118820959/0
32	Cap	118821033/0
33	Hub Cap	118821031/0
34	Wheel	118821032/0
36	Guard	118821035/0
39	Casing	118820995/0
40	Accessories Carrier	118821001/0
41	Guard	118821034/0
42	Handle	118821043/0
43	Handgrip	118821042/0
44	Guide	118821044/0
45	Pipe	118821007/0
46	Hook	118820999/0
47	Spring	118821074/0
48	Button	118821000/0
49	Casing	118820998/0
50	Support	118821063/0
51	Grommet	118820923/0
52	Electric Motor	118821017/0
53	Fan Motor	118820954/0
54	Wobble Plate	118821016/0
55	Plug	118820941/0
56	Tss Kit	118820955/0
57	Piston + Seals Kit	118821133/0
58	Valves + Seals Kit	118820934/0
59	Suction Kit	118821072/0
