Spare parts
Everything for your machines
Spare parts
>
STIGA
>
Scarifier
>
SC 42 B SC 42 B (2019) [974000100]
>
Scarifier
Back to
SC 42 B
SC 42 B (2019) [974000100]
Scarifier
SC 42 B
SC 42 B (2019) [974000100]

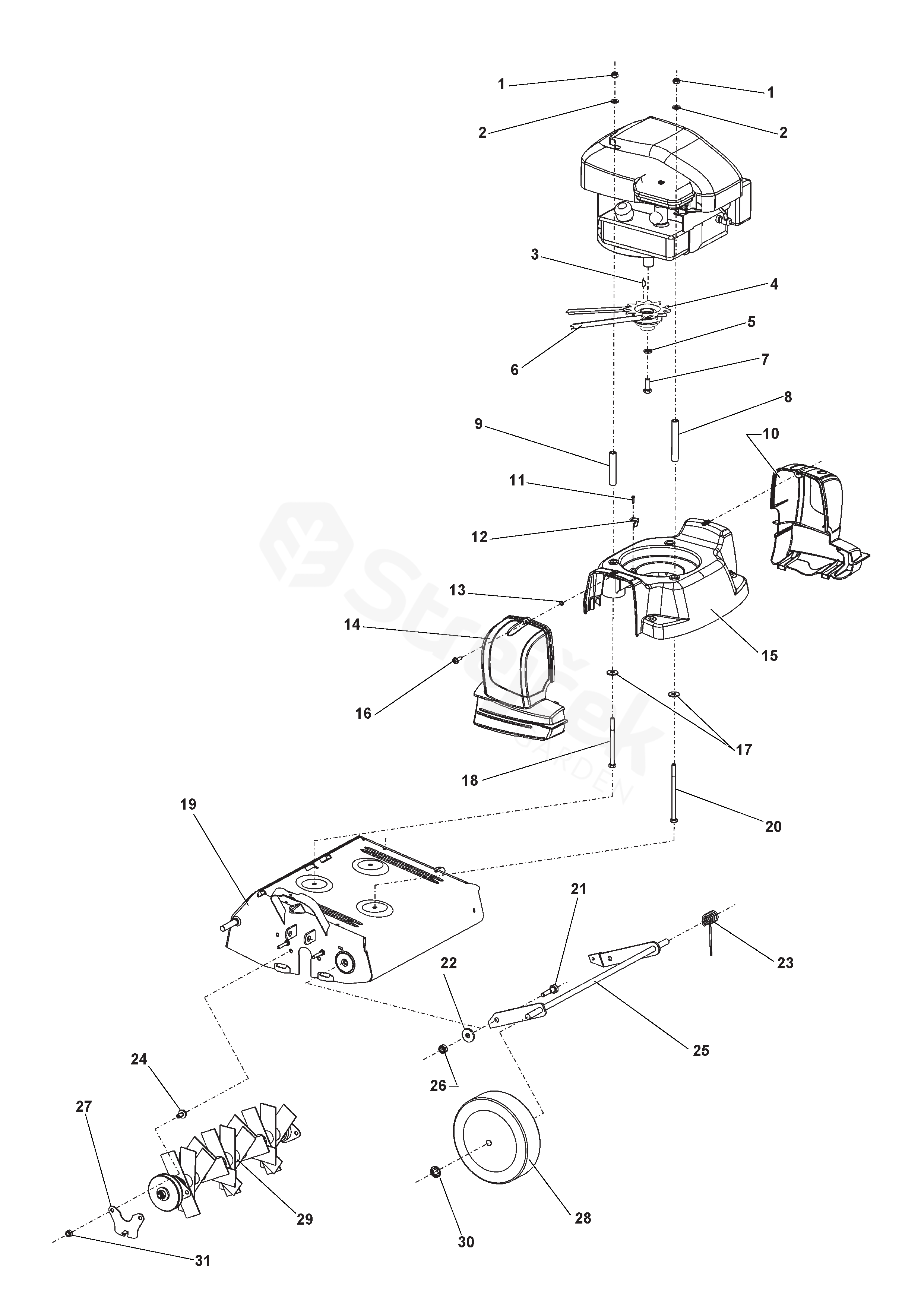

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
SC 42 B (2019) [974000100]
1
Nut
81.4588.000
2
Washer
84.3685.000
3
Key
26.0050.202
4
Engine Pulley
41.1025.115
5
Spring washer
84.3755.000
6
Belt
41.1005.108
7
Screw
26.0050.201
8
Tube
41.1025.112
9
Tube
41.1025.111
10
Left Hood Grey
41.1005.911
11
Screw
86.3982.014
12
Belt Guide
41.1005.130
13
Washer
84.3723.000
14
Right Hood Grey
41.1005.912
15
Engine Support Grey
41.1005.910
16
Screw
86.3988.200
17
Washer
84.3708.000
18
Screw
86.3076.500
19
Red Carter
41.1005.121
20
Screw
86.3077.000
21
Screw
86.3359.000
22
Washer
84.3818.000
23
Spring
41.1015.125
24
Screw
86.2494.000
25
Front Axle
41.1015.110
26
Nut
81.4645.000
27
Guard
41.1005.113
28
Wheel Assy D. 200
41.1015.120
29
Blade Assy
41.1020.100
30
Crown Fastener
84.3993.500
31
Nut
81.4588.000
