Spare parts > STIGA > Scarifier > SC 42 B SC 42 B (2019) [974000200] > Scarifier
Back to
Scarifier
SC 42 B SC 42 B (2019) [974000200]

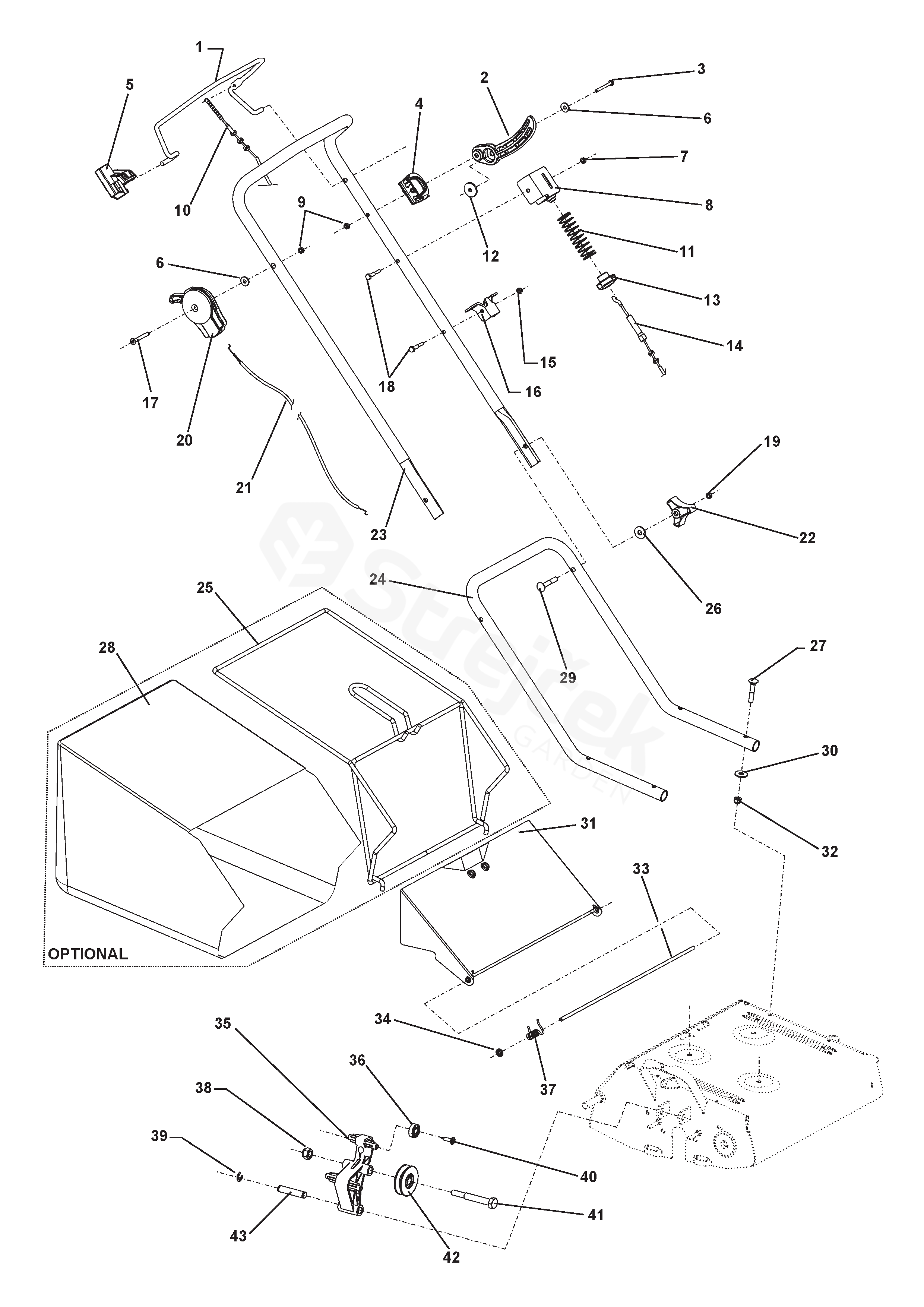

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SC 42 B (2019) [974000200]
1 Lever 41.1010.121
2 Lever 41.1010.148
3 Screw 86.1840.265
4 Support 41.1010.149
5 Safety Lever 41.1010.123
6 Washer 84.3619.000
7 Nut 81.4548.000
8 Support 41.1010.146
9 Nut 81.4548.000
10 Drive Cable 41.1010.125
11 Spring 41.1010.129
12 Washer 84.3622.000
13 Knob 41.1010.128
14 Cable 41.1010.130
15 Nut 81.4548.000
16 Dog Plate 41.1010.141
17 Screw 86.2356.100
18 Screw 86.2300.000
19 Nut 81.4574.000
20 Throttle Control Assy 32.1010.920
21 Throttle Cable 32.1010.332
22 Knob 37.0015.107
23 Upper Handle 41.1010.114
24 Lower handle 41.1010.110
25 Fabric Box Frame 41.1020.140
26 Washer 84.3708.000
27 Screw 86.2786.300
28 Fabric Box 41.1020.148
29 Screw 86.2786.500
30 Washer 84.3708.000
31 Deflector 41.1005.146
32 Nut 81.4588.000
33 Fulcrum Axle 41.1005.140
34 Washer 84.3993.100
35 Belt Tensioner 41.1005.105
36 Bearing 81.2505.000
37 Spring 41.1005.141
38 Nut 81.4703.100
39 Snap Ring 80.1039.000
40 Screw 86.3988.200
41 Screw 86.3997.500
42 Pulley 41.1005.107
43 Pin 41.1005.109
