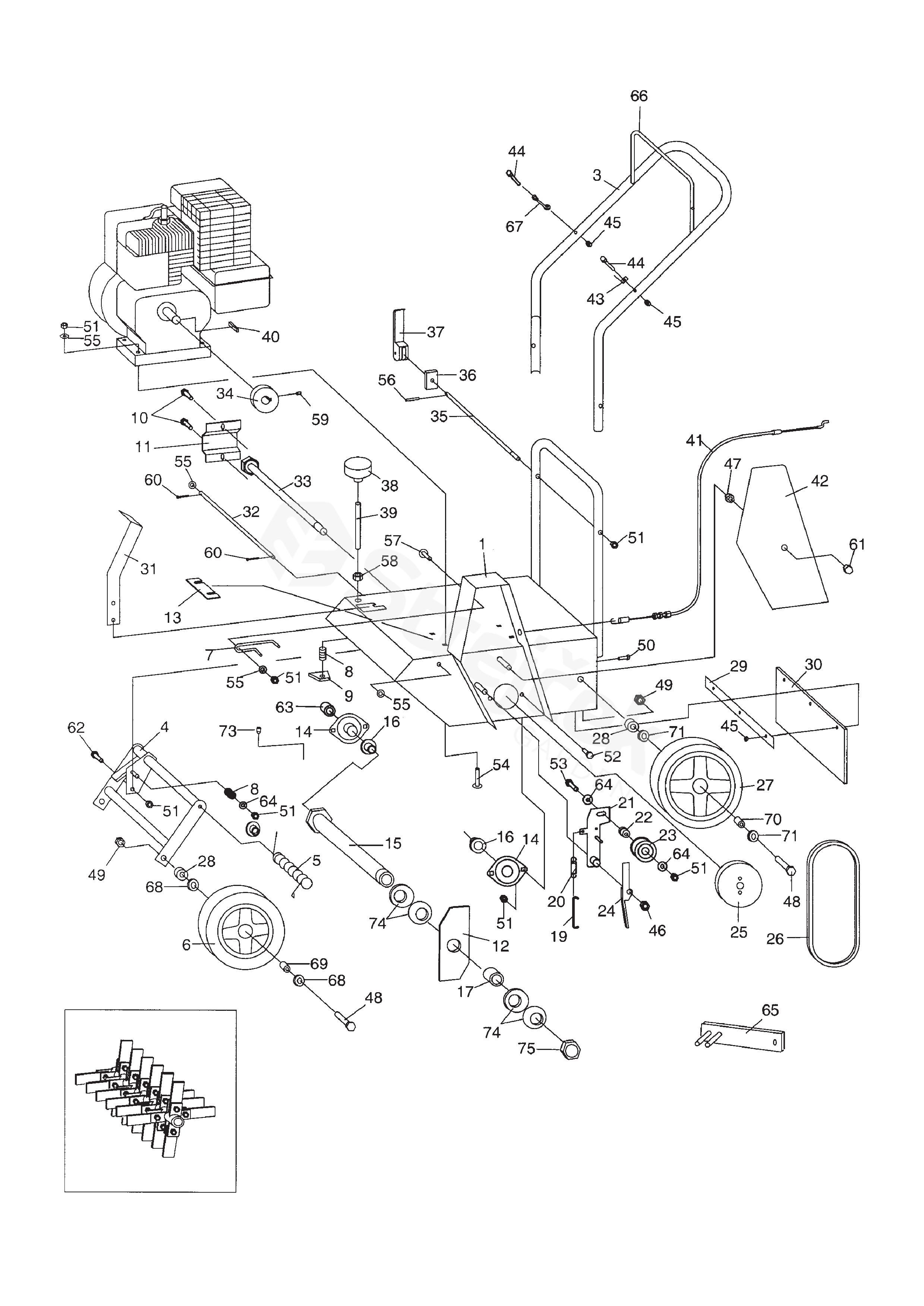

Spare parts - Partlist - VB 40 PRO VB 40 PRO (2007) - Aerotor shaft

Everything for your machines

VB 40 PRO VB 40 PRO (2007)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For VB 40 PRO (2007)

1	Frame	1319-1617-01
3	Handlebar	1319-1618-01
4	Wheel Attachment	1319-1619-01
5	Torsion Spring	1319-1620-01
6	Alluminium Wheel Inkl. pos 68	381007364/0
7	Belt Guide	1319-1621-01
8	Spring	1319-1622-01
9	Lock Plate	1319-1623-01
10	Screw	9997-0816-16
11	Cover	1319-1699-01
12	Blade	1319-1656-01
13	Mounting plate	1319-1700-01
14	Bearing	1319-1628-01
15	Rotor shaft	1319-1655-01
16	Spacer	1319-1630-01
17	Collar	1319-1851-01
19	Spring holder	1319-1634-01
20	Spring	1319-1635-01
21	Tension Lever	1319-1636-01
22	Spacer	1319-1637-01
23	Tension Roller	1319-1638-01
24	Belt Brake	1319-1639-01
25	Pulley	1319-1640-01
26	V-Belt	9585-0003-02
27	Wheel Inkl. pos 71	381007385/0
28	Spacer	1319-1642-01
29	Plate	1319-1643-01
30	Rubber Guard	1319-1644-01
31	Lift Lever	1319-1645-01
32	Shaft	1319-1646-01
33	Screw	1319-1647-01
34	Pulley	1319-1648-01
35	Tension Rod	1319-1649-01
36	Washer	4231-0135-01
37	Locking handle	1111-1016-01
38	Grip	1319-1650-01
39	Screw	1319-1651-01
40	Key Motordel/engine part	91539
41	Clutch Cable	1319-1652-01
42	Belt cover	1319-1653-01
43	Cable Holder	1319-1654-01
44	Screw	9898-0635-12
45	Lock Nut	9747-0631-02
46	Lock Nut	9747-1031-02
47	Lock Nut	9747-1031-02
48	Wheel Bolt	1319-1659-01
49	Nut	9747-1231-02
50	Screw	9997-0616-16
51	Nut	9747-0831-02
52	Screw	9997-0816-16
53	Screw	9997-0840-16
54	Screw	9898-0845-12
55	Washer	9699-0028-02
56	Pin	9595-0235-00
57	Screw	9898-0820-16
58	Nut	9747-1231-02
59	Screw	9915-0808-15
60	Split pin	9599-0067-02
61	Nut	1319-1660-01
62	Screw	9997-0825-16
63	Collar	1319-1732-01
64	Washer	9699-0062-02
65	Pin Wrench	1319-1775-01
66	Clutch Handle	1319-1777-01
67	Starting Rope Guide Spring	122430311/0
68	Ball Bearing	9549-0015-00
69	Collar 17.2 x 19.5	1319-1806-01
70	Collar 17.2 x 16.5	1319-1805-01
71	Ball Bearing	9549-0001-00
73	Screw	1319-1853-01
74	Spring washer	1319-1850-01
75	Nut	1319-1852-01
99	Flail Shaft Assy Tillbehör/Accessory	1319-1704-01
