Spare parts
Everything for your machines
Spare parts
>
STIGA
>
Tiller
>
JB 350 JB 350 (2007)
>

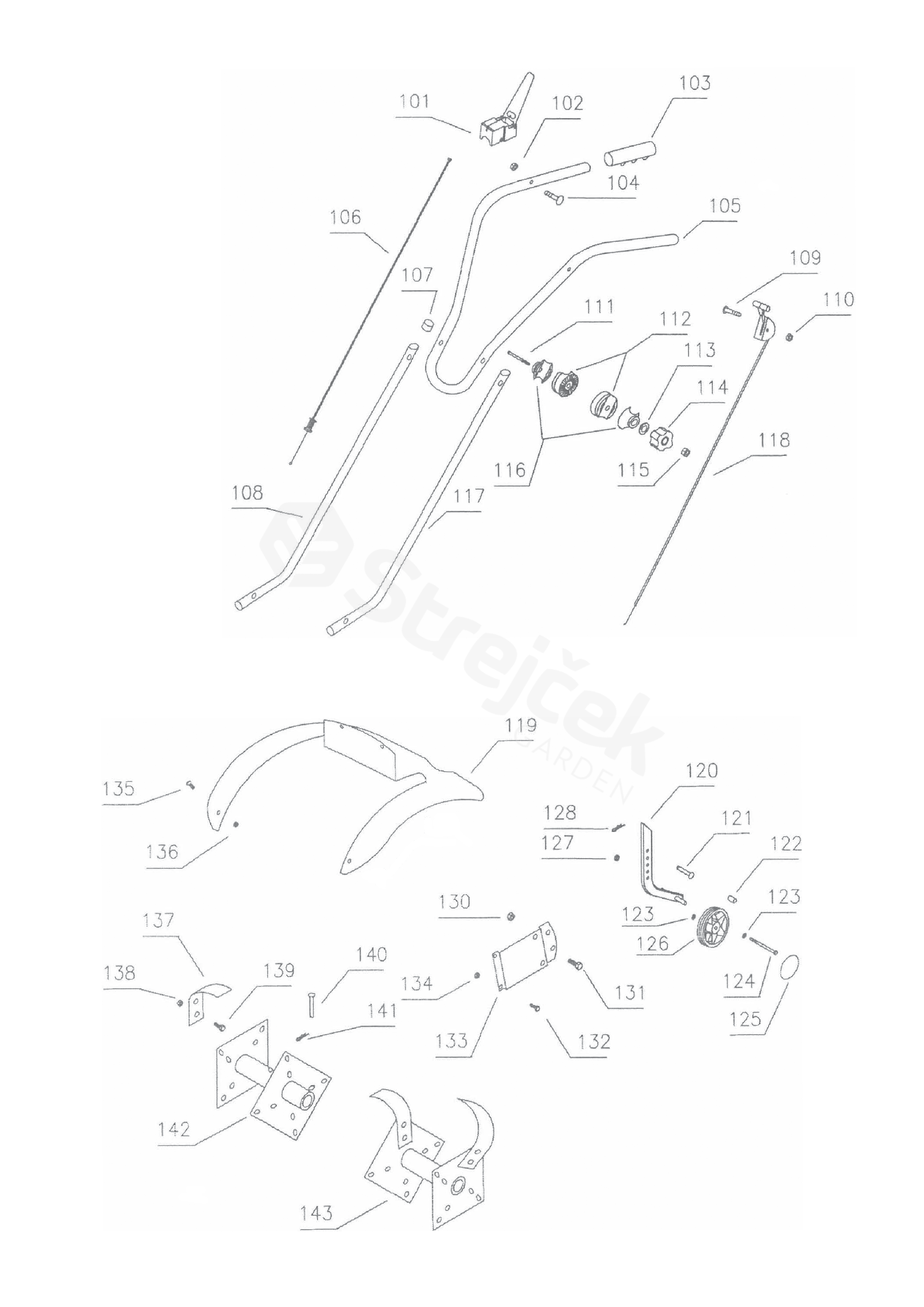

Handle Rotors
Back to
JB 350
JB 350 (2007)
Handle Rotors
JB 350
JB 350 (2007)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
JB 350 (2007)
101
Clutch Handle
1482-1106-01
102
Lock Nut
9747-0631-02
103
Handle Grip
1482-0575-01
104
Screw
9948-0650-16
105
Handle Tube-Upper
1482-1116-01
106
Clutch Cable
1482-1125-01
107
Plug
1482-1132-01
108
Handlebar-Rh
1482-1128-01
109
Screw
9948-0660-16
110
Lock Nut
9747-0631-02
111
Screw
9997-0812-02
112
Plastic Bracket
1482-1135-01
113
Washer
9699-0028-02
114
Locking Knob
1482-1133-01
115
Nut
9799-0831-02
116
Plastic Bracket
1482-1134-01
117
Handlebar-Lh
1482-1129-01
118
Throttle Control
1482-1126-01
119
Blade Guard-Yellow
1482-1117-01
120
Depth Skid/Wheel Support
1482-1127-01
121
Cotter bolt
1482-0917-01
122
Bushing
1482-1118-01
123
Washer
9699-0028-02
124
Screw
9997-0816-02
125
Hub Cap (Plastic)
1482-1131-01
126
Support Wheel
1482-1130-01
127
Nut
1482-0974-01
128
Elastic Pin
9598-0002-02
130
Nut
1482-0974-01
131
Screw
1482-0972-01
132
Screw
1482-1080-01
133
Rear Console
1482-1108-01
134
Nut
1482-0983-01
135
Screw
1482-0884-01
136
Nut
9739-0631-22
137
Blade
1482-1121-01
138
Nut
9794-5131-02
139
Screw
9987-5119-16
140
Cotter Pin
1482-1123-01
141
Elastic Pin
9598-0002-02
142
Blade Tube
1482-1111-01
143
Blades Ass.Y
1482-1112-01
