Spare parts
Everything for your machines
Spare parts
>
STIGA
>
Tiller
>
JB 51 JB 51 (1995)
>
Engine Belt Tensioner
Back to
JB 51
JB 51 (1995)

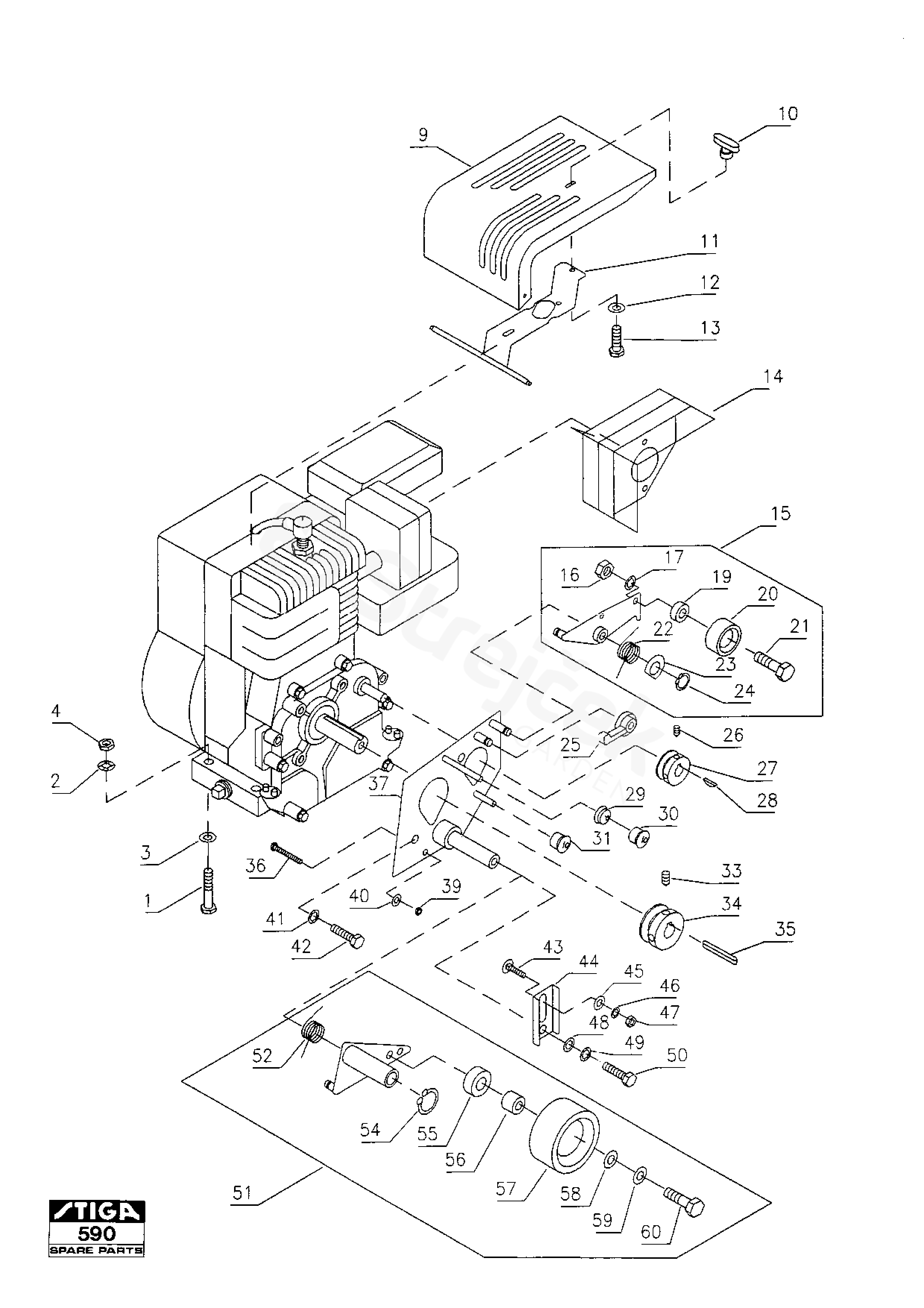

Engine Belt Tensioner
JB 51
JB 51 (1995)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
JB 51 (1995)
1
Screw
9997-0845-12
2
Washer
9683-0030-02
3
Screw
9915-0808-15
4
Nut
9799-0831-02
14
Heat shield
1482-0648-01
15
Belt Tensioner Assy
1482-0306-01
16
Nut
9799-1031-02
17
Washer
9683-0040-02
19
Spacer
1482-0596-01
20
Tension Roller
1482-0550-01
21
Screw
9997-1025-16
22
Spring
1482-0307-02
23
Washer
9699-0035-02
24
Circlip
9650-0010-04
25
Belt Guide
1482-0643-01
26
Screw
9915-0606-15
27
Pulley-Reverse
1482-0644-01
28
Key
9600-0053-00
29
Guide-Inner
1482-0681-01
30
Guide-Outer
1482-0680-01
31
Guide-Outer
1482-0680-01
33
Screw
9915-0808-15
34
Belt Pulley
1482-0488-01
35
Key
1482-0040-01
36
Screw
9997-0635-12
37
Mounting plate
1482-0557-01
39
Nut
9799-0631-02
40
Washer
9683-0025-02
41
Washer
9683-0030-02
42
Screw
9987-5116-16
43
Screw
9898-0625-16
44
Bracket
1482-0545-01
45
Washer
9699-0028-02
46
Washer
9683-0025-02
47
Lock Nut
9747-0631-02
48
Washer
9699-0028-02
49
Washer
9683-0030-02
50
Screw
9997-0816-16
51
Belt Tensioner Assy
1482-0561-01
52
Spring
1482-0559-01
54
Circlip
9650-0016-04
55
Bushing
1482-0553-01
56
Bushing
1482-0552-01
57
Tension Roller
1482-0551-01
58
Washer
9683-0040-02
59
Washer
9683-0040-02
60
Screw
9997-1025-16
