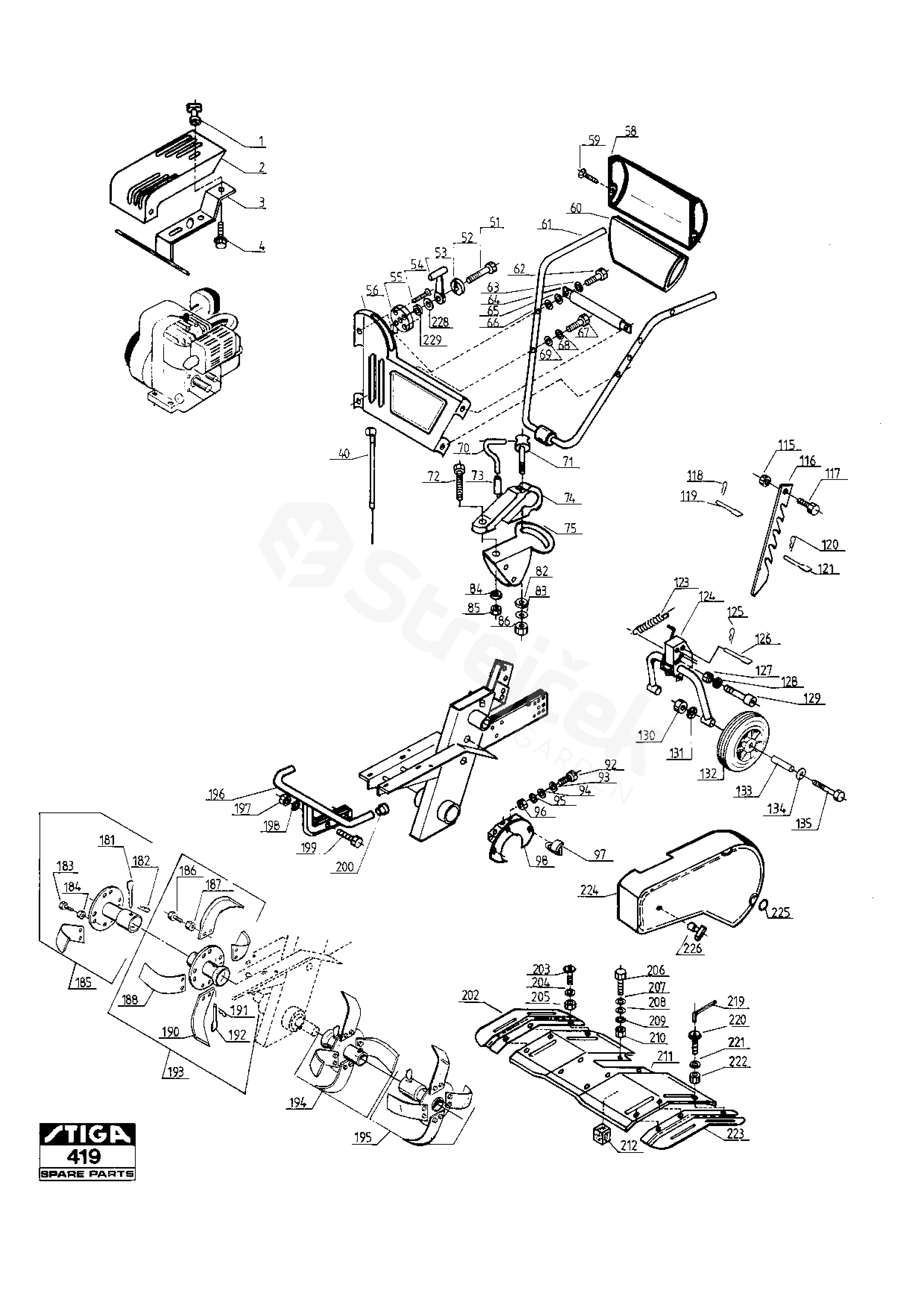

Spare parts - Partlist - JB 90 JB 90 (1993) - Chassis

Everything for your machines

JB 90 JB 90 (1993)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For JB 90 (1993)

40	Gas cable	1482-0573-01
51	Screw	9997-0625-16
52	Washer	1482-0588-01
53	Throttle Control Lever	1482-0589-01
54	Screw	1482-0570-01
55	Control Plate	1482-0590-01
56	Front Plate	1482-0577-01
61	Handlebar	1482-0546-01
62	Screw	9997-0620-16
64	Rod	1482-0540-01
70	Locking handle	1482-0544-01
71	Locking bolt	1482-0548-01
72	Screw	9997-1040-12
73	Grip	1482-0574-01
74	Handle attachment	1482-0541-01
75	Handle Bracket	1482-0549-01
82	Washer	9699-0097-02
83	Dish Washer	1482-0568-01
84	Washer	9699-0035-02
85	Lock Nut	9747-1031-02
86	Nut	9747-1231-02
97	Belt Guard	1482-0579-01
98	Guard Plate	1482-0539-01
115	Nut	9794-5131-02
116	Depht control	1482-0537-01
117	Screw	9987-5119-16
118	Elastic Pin	9598-0002-02
119	Cotter bolt	1482-0041-00
123	Spring	1482-0558-01
124	Wheel Fork	1482-0555-01
127	Nut	9747-0831-02
128	Washer	9699-0028-02
129	Screw	9997-0855-12
130	Nut	9799-1631-02
131	Starlock	9678-0014-02
132	Wheel	1482-0258-01
133	Bushing	1482-0027-00
134	Washer	9699-0104-02
135	Screw	9997-1680-12
181	Pin (10X72)	1482-0092-00
183	Screw	9987-5222-16
184	Nut	9794-5231-02
185	Outer Rotor Assy-R.H.	1482-0531-01
188	Rotor Blade-R.H.	1482-0533-01
190	Rotor Blade-L.H.	1482-0534-01
193	Inner Rotor Assy-R.H.	1482-0532-01
194	Rotor inner assy-L.H.	1482-0529-01
195	Outer Rotor Assy-L.H.	1482-0530-01
202	Mud Guard Extension,R.H.	1482-0583-01
203	Screw	9865-0512-16
204	Washer	9699-0024-02
205	Nut	9747-0531-02
206	Screw	9997-0616-16
207	Washer	9699-0025-02
209	Washer	9683-0025-02
210	Nut	9799-0631-02
211	Mud guard	1482-0538-01
212	Fibre stop	1482-0585-01
219	Allen wrench	1482-0567-01
223	Mud Guard Extension,L.H.	1482-0584-01
224	Belt Guard	1482-0581-01
225	Rubber Loop	1482-0580-01
226	Nut	1482-0576-01
228	Dish Washer	1482-0569-01
