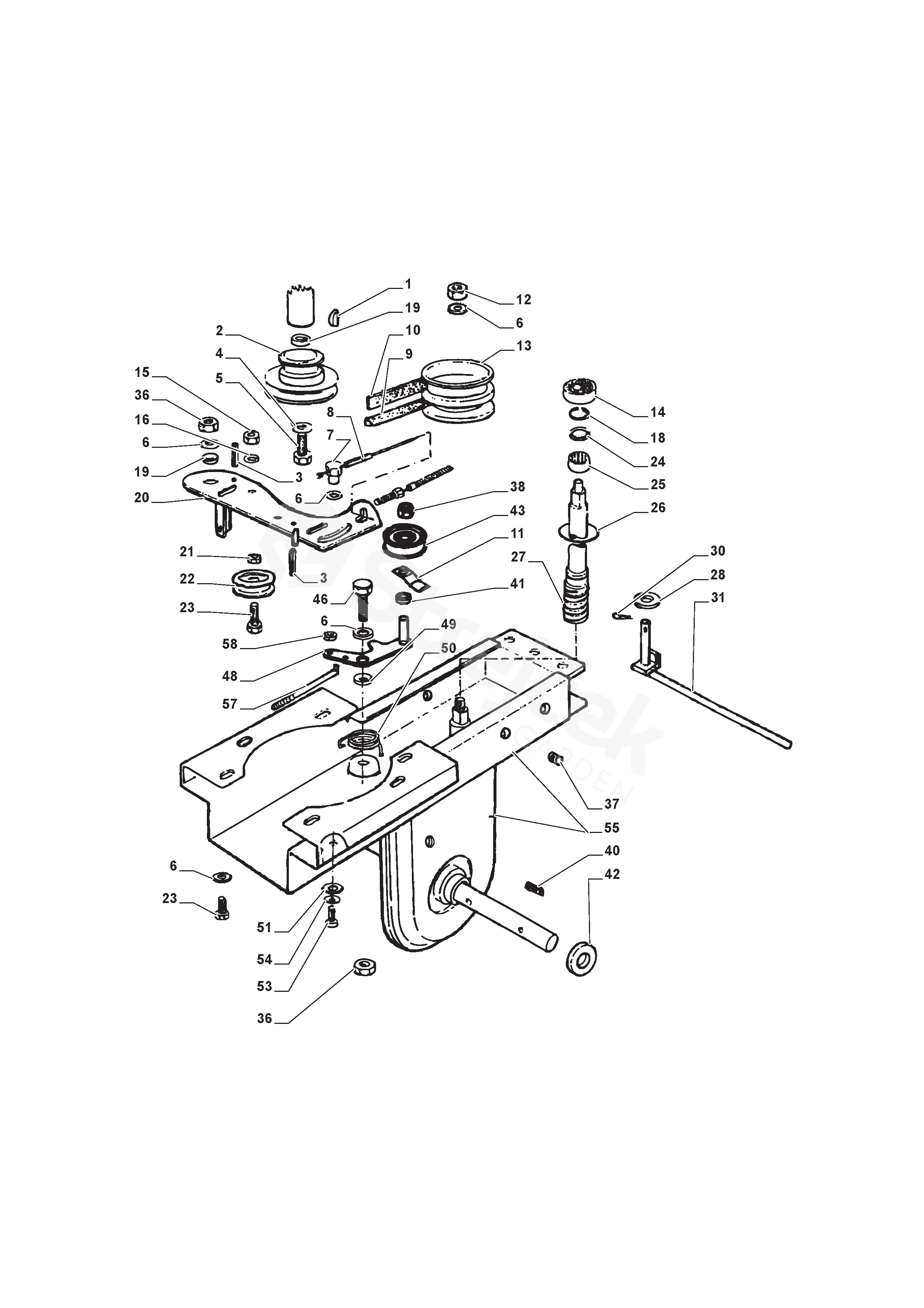

SILEX 500R-G SILEX 500R-G (2008)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SILEX 500R-G (2008)

1	Key	112139100/0
2	Pulley	1483-2002-01
3	Pin	9595-0235-00
4	Washer	9699-0035-02
5	Screw	9987-5225-16
6	Washer	9699-0105-02
7	Pin	1483-2092-01
8	Spring	1483-2097-01
9	Belt	1483-2113-01
10	Belt	1483-2114-01
11	Belt Guide	1483-2144-01
12	Nut	9799-1231-02
13	Pulley	1483-2087-01
14	Ball Bearing	1483-2192-01
15	Nut	9799-1031-02
16	Washer	9699-0035-02
18	Seeger	1483-2068-01
19	Spacer	1483-2088-01
20	Lever	1483-2094-01
21	Nut	1483-2090-01
22	Roll	1483-2003-01
23	Screw	9997-1025-16
24	Spacer	1483-2000-01
25	Needle Bearing	1483-2072-01
26	O Ring	1483-2188-01
27	Screw	1483-2081-01
28	Washer	9699-0104-02
30	Elastic Pin	9598-0002-02
31	Lever	1483-2107-01
36	Lock Nut	9747-1031-02
37	Spacer	1483-2108-01
38	Nut	9747-1231-02
40	Cap	1483-2075-01
41	Spacer	1483-2089-01
42	Oil seal	1483-2070-01
43	Pulley	1483-2004-01
46	Screw	9997-1020-16
48	Lever	1483-2091-01
49	Bushing	1483-2001-01
50	Spring	1483-2096-01
51	Flat washer	9699-0100-02
53	Screw	9997-0612-16
54	Washer	9683-0025-02
55	Transm.Housing-Red	1483-2093-02
57	Rod	1483-2095-01
58	Lock Nut	9747-0631-02
