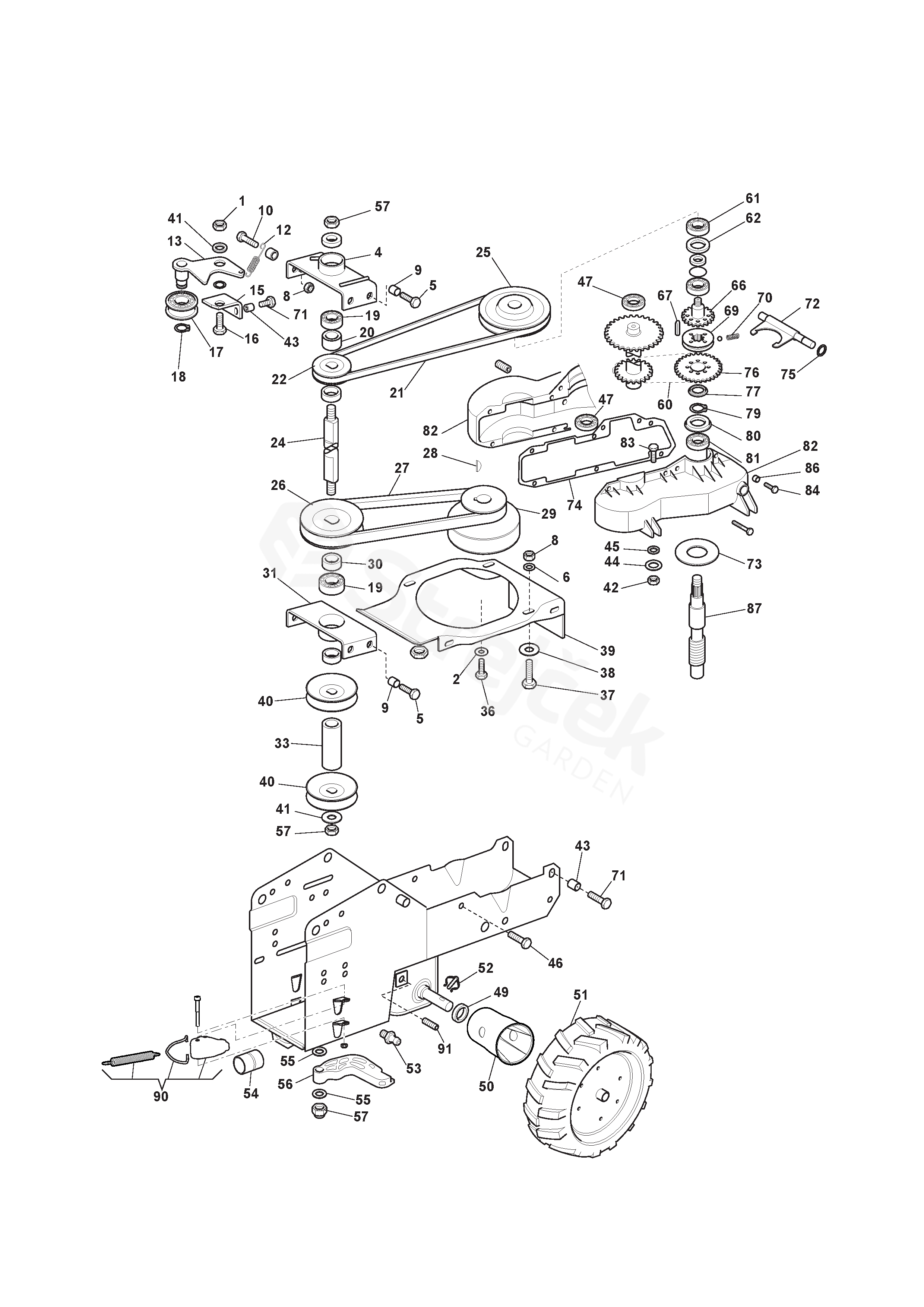

Spare parts > STIGA > Tiller > SILEX 95 H SILEX 95 H (2015) > Chassis
Back to
Chassis
SILEX 95 H SILEX 95 H (2015)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SILEX 95 H (2015)
1 Lock Nut 9747-1031-02
2 Washer 9699-0035-02
4 Support 118800047/0
5 Screw 9959-0816-16
6 Washer 9699-0028-02
8 Nut 9747-0831-02
9 Spacer 1483-2108-01
10 Screw 9959-0825-16
12 Spring Rear Cover 118800048/0
13 Tend Arm Strap 118800049/0
15 Support 118800508/0
16 Screw 9997-1025-16
17 Pulley 1483-2004-01
18 Circlip 9650-0012-04
19 Bearing 118800050/0
20 Spacer 118800051/0
21 Belt 118800001/0
22 Pulley 118800052/0
24 Countershaft 118800054/0
25 Pulley 118800055/0
26 Pulley 1483-2326-01
27 Belt 1483-2352-01
28 Key 112139100/0
29 Pulley 118800056/0
30 Spacer 118800057/0
31 Support 118800058/0
33 Spacer 118800506/0
36 Screw 9987-5225-16
37 Screw 9997-0835-12
38 Washer 9699-0122-02
39 Yellow Engine Top Cover 118550541/0
40 Pulley 1483-2082-01
41 Washer 9699-0105-02
42 Nut 112292100/0
43 Nut 1483-2190-01
44 Flat washer 9699-0100-02
45 Washer 9683-0025-02
46 Screw 9959-0612-16
47 Bearing 118800059/0
49 Oil seal 1483-2069-01
50 Dust Cover 118800060/0
51 Left Wheel 118800062/0
52 Pin 118800500/0
53 Grease Dispenser 9501-0500-00
54 Bushing 118800499/0
56 Lever 1483-2332-01
60 Chain 118800327/0
61 Bearing 118800369/0
62 Snap Ring 118800363/0
66 Gear 118800322/0
67 Pin 118800380/0
69 Selector 118800323/0
70 Spring 1483-2201-01
71 Screw 9959-0616-16
72 Gear Fork 118800063/0
73 Oil seal 118800064/0
74 Oil seal 118800065/0
75 O Ring 1483-2275-01
76 Gear 118800324/0
77 Bushing 118800326/0
79 Seeger 118800356/0
80 Dust Cover 118800320/0
81 Bearing 118800368/0
82 Right Housing 118800318/0
83 Screw 9997-0620-16
84 Screw 112760475/0
86 Nut 9747-0531-02
87 Worm 118800507/0
90 Hook Kit
2pcs for each part 		118850463/0
91 Cap 1483-2075-01
