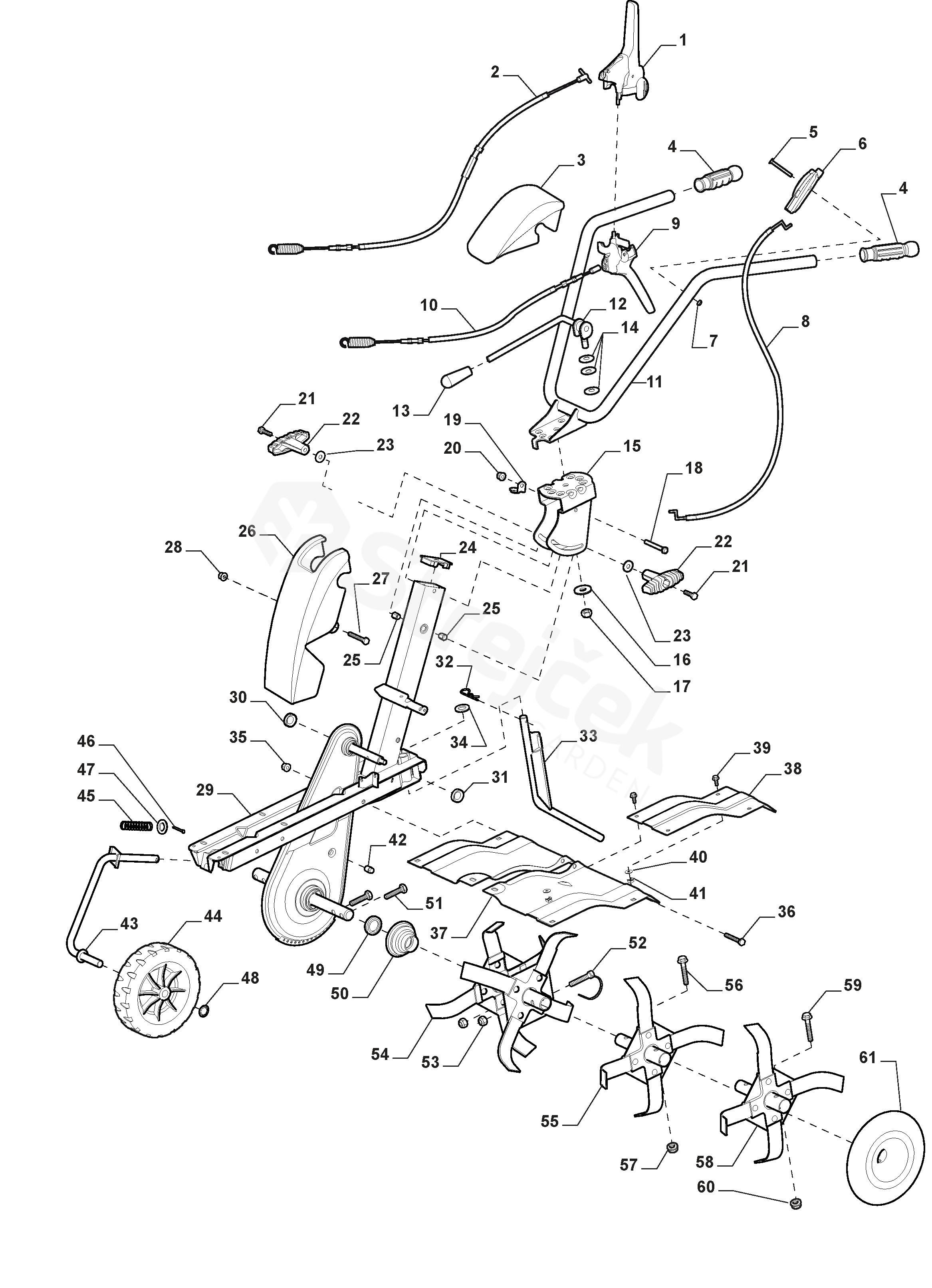

SRC 775 RG SRC 775 RG (2020) [212751142/14]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SRC 775 RG (2020) [212751142/14]

1	Clutch Handle	118802984/0
2	Clutch Cable	118802982/0
3	Panel-Yellow	118802977/0
4	Handgrip	1483-2213-01
5	Screw	9948-0655-16
6	Accelerator	1483-2143-02
7	Lock Nut	9747-0631-02
8	Throttle Cable	118802969/0
9	Clutch Lever-Reverse	118802985/0
10	Clutch Cable-Reverse	118802983/0
11	Handlebar Tube	118802979/0
12	Lever	1483-2044-01
13	Knob	1483-2279-01
14	Washer	1483-2073-01
15	Handle Reinforcement	118802980/0
16	Washer	9699-0121-02
17	Nut	9747-1231-02
18	Screw	9997-0865-12
19	Support	1483-2021-01
20	Nut	112155000/0
21	Screw	9997-0830-16
22	Lever Knob	118803004/0
23	Washer	9699-0122-02
24	Cap	1483-2166-01
25	Nut	118803012/0
26	Panel-Yellow	118802978/0
27	Screw	112789350/0
28	Nut	9747-0531-02
29	Gear Housing-Grey	118802974/0
30	Cap	1483-2186-01
31	Oil seal	1483-2187-01
32	Elastic Pin	9598-0002-02
33	Depth Skid	118802986/0
34	Washer	9699-0104-02
36	Screw	9997-0855-12
37	Guard Plate	118802988/0
38	Guard Plate	118802989/0
39	Screw	9959-0616-16
40	Washer	118803014/0
41	Nut	1134-3643-01
42	Cap	1483-2075-01
43	Support Wheel Brkt	118802987/0
44	Wheel	118802972/0
45	Spring	118802971/0
46	Split pin	118803017/0
48	Washer	1483-2195-01
49	Oil seal	1483-2070-01
50	Dust guard	118802992/0
51	Screw	9997-1050-16
52	Pin	1483-2196-01
53	Lock Nut	9747-1031-02
54	Rotor Assy-Rh	1483-2023-01
55	Left Tine Assy	1483-2170-01
61	Disc	1483-2022-01
