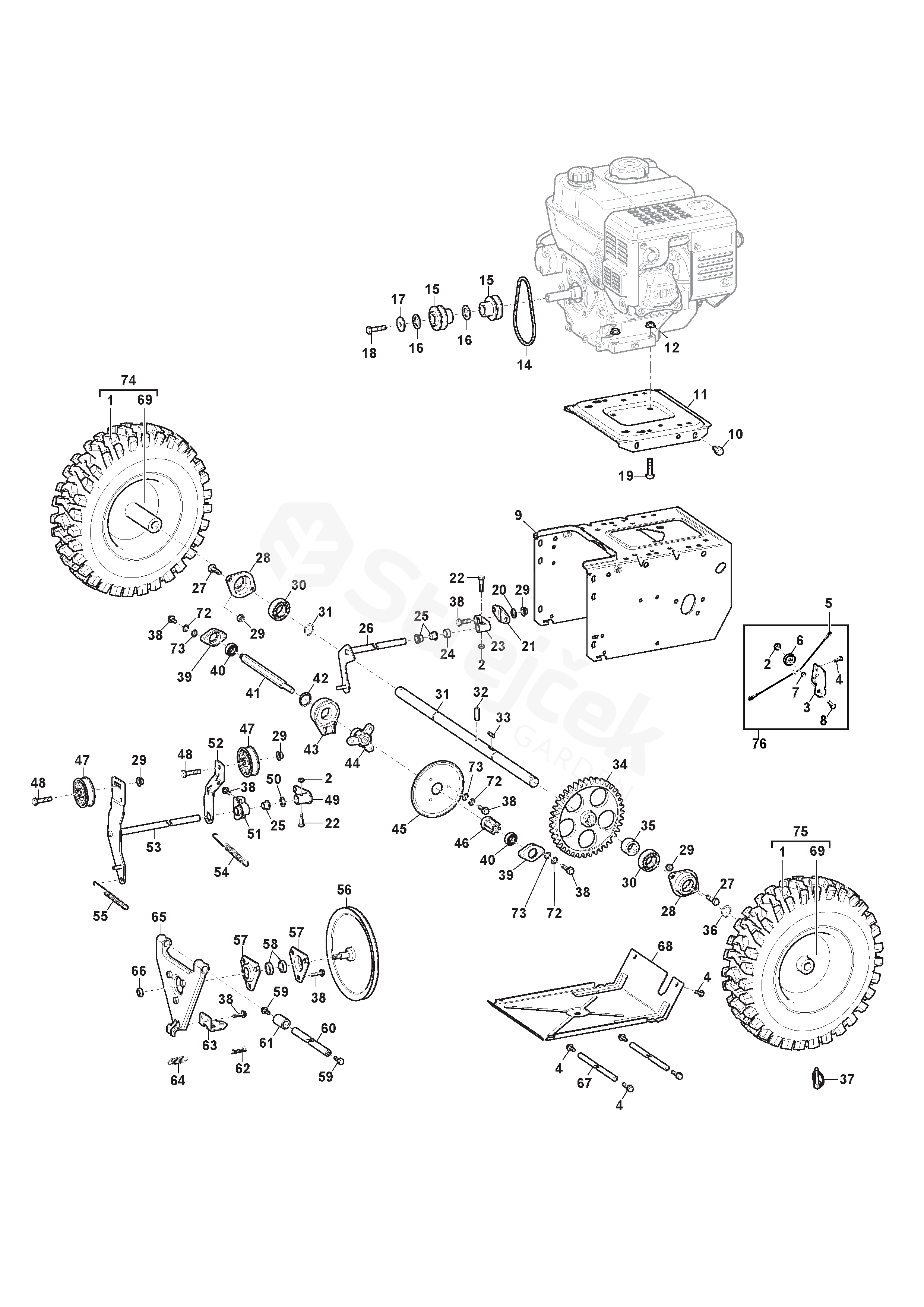

Spare parts - Partlist - SWS 600 G SWS 600 G (2018) - Transmission

Everything for your machines

SWS 600 G SWS 600 G (2018)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SWS 600 G (2018)

1	Tyre	118820752/0
2	Nut	112154510/0
3	Pulley Seat	118820753/0
4	Screw	112790781/0
5	Wire	118820299/0
6	Pulley	118820300/0
7	Sleeve	118820298/0
8	Screw	112791400/0
9	Transmission Case Ass.Y	118820754/0
10	Screw	112793102/0
11	Engine Plate - Grey	118820149/0
12	Nut	112154210/0
14	Drive Belt	118820755/0
15	Drive pulley	118820756/0
16	Washer	118820262/0
17	Washer	9699-0109-02
18	Screw	112691100/0
19	Screw	112691100/0
20	Washer	112521350/0
21	Gear Adjuster	118820263/0
22	Screw	112791400/0
23	Gear connector	118820757/0
24	Cushion	118820265/0
25	Plastic bushing	1811-3113-01
26	Shift fork	118820308/0
27	Screw	112792610/0
28	Bearing housing	1811-3115-01
29	Nut	112155000/0
30	Ball Bearing	118820121/0
31	Driving Shaft	118820124/0
32	Pin	3180390
33	Key	118820125/0
34	Gear	118820222/0
35	Sleeve	118820122/0
36	Seeger	112609260/0
37	Cap	118820379/0
38	Screw	112791200/1
39	Inner Shaft Seat	118820223/0
40	Ball Bearing	118820152/0
41	Hexagon Shaft	118820224/0
42	Circlip	118820311/0
43	Shift bearing	118820312/0
44	Rubber wheel seat	118820634/0
45	Rubber Wheel	118820635/0
46	Gear	118820225/0
47	Tension pulley	1811-3064-01
48	Screw	112793701/0
49	Tensioner	118820334/0
50	Spring washer	112530150/0
51	Fixing Block	118820336/0
52	Tensioner	118820337/0
53	Tension Assy	118820226/0
54	Spring	1811-3118-01
55	Brake Spring	118820343/0
56	Pulley	118820339/0
57	Bearing housing	1811-3116-01
58	Ball Bearing	118820340/0
59	Screw	112792611/0
60	Strut	1811-3125-01
61	Spacer bush	1811-3061-01
62	Pin	118820348/0
63	Connector Assy	118820227/0
64	Spring	118820349/0
65	Plate	118820229/0
66	Nut	112156603/0
67	Strut	118820295/0
68	Bottom Plate	118820758/0
69	Rim	118820759/0
72	Washer	112521331/0
73	Grower	112582100/0
74	Complete Right Wheel	118821113/0
75	Complete Left Wheel	118821114/0
76	Pulley Seat Assy	118821109/0
