Husqvarna
>
CHAIN SAWS
>
23 COMPACT 23 COMPACT, 1993-01
>
PRODUCT COMPLETE
Back to
23 COMPACT
23 COMPACT, 1993-01
PRODUCT COMPLETE

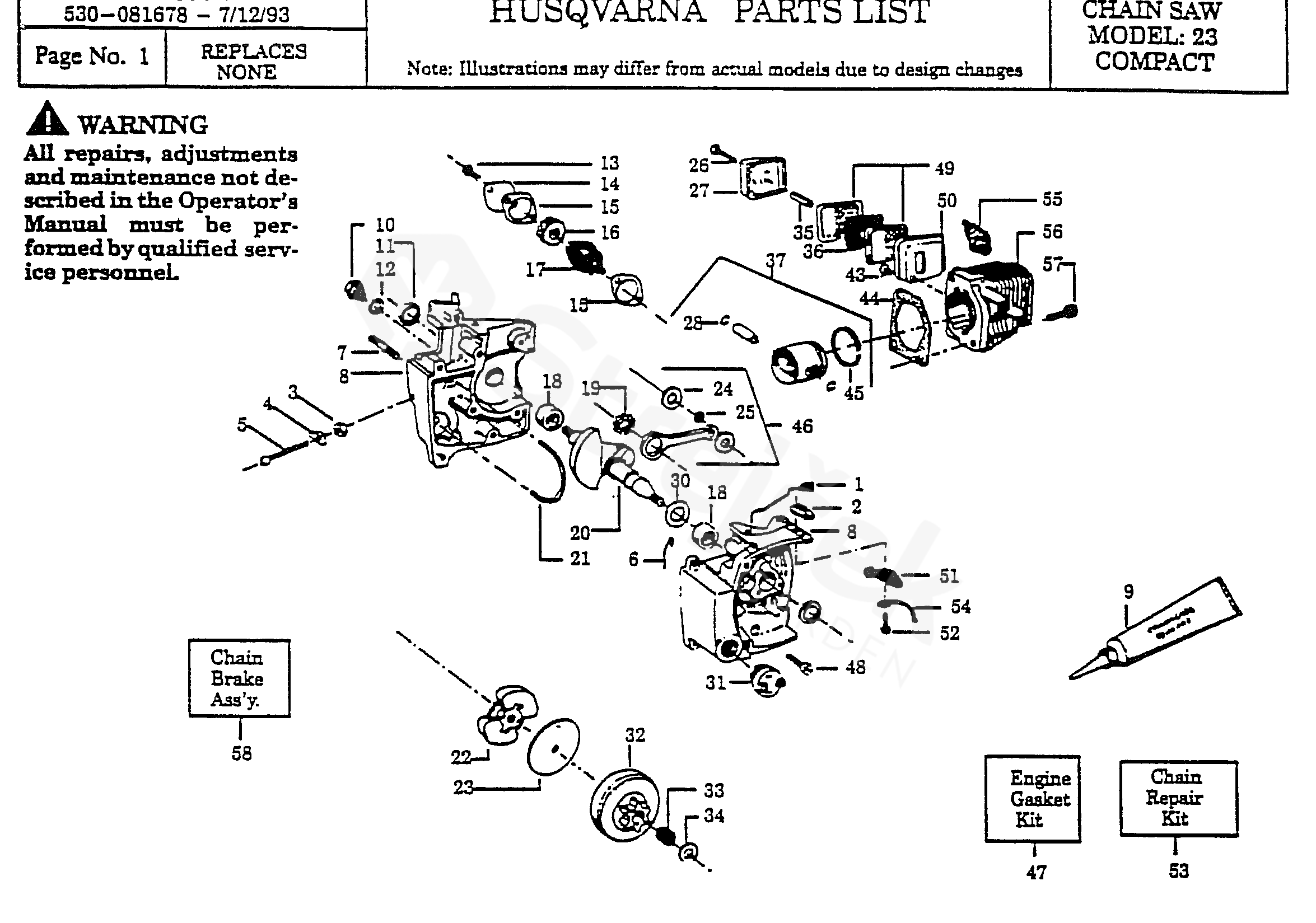

23 COMPACT
23 COMPACT, 1993-01
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
23 COMPACT, 1993-01
1
KNOB
530023788
2
RAMP-KILLSWITCH
530023786
3
NUT
530015135
4
PEN
530023492
5
SCREW
530015236
6
PIN RETAINING SCREW
530036450
7
STUD
530015642
8
CRANKCASE
530014742
9
SEAL
530030054
10
CHECK VALVE
530069142
11
SEALING RING
530019059
12
SEAL
530019089
13
SCREW
530015176
14
COVER
530023802
15
GASKET
530019091
16
OIL FILTER
530023801
17
PUMPBODY
530010195
18
SUPPORT BUSHING
530032029
19
BEARING
530032065
20
CRANKSHAFT
530022172
21
LINE-OIL DISCHARGE
530021026
22
CLUTCH ASSY
530069193
23
WASHER
530069197
24
SPACER
530015486
25
BEARING
530032075
26
SCREW
530015169
27
MUFFLER COVER
530023795
28
LOCKING RING
530023843
30
WASHER
530023887
31
COVER
530010444
32
CLUTCH DRUM
530069166
33
BEARING
530032079
34
SPACER
530023519
35
SPACER
530023535
36
SCREEN
530023796
37
PISTON KIT
530069451
43
SCREW
530001666
44
CYLINDER GASKET
530019159
45
PISTON RING
530027482
46
CONNECTING ROD ASSY
530010474
47
GASKET
530069022
48
SCREW
530015986
49
EXHAUST OUTLET
530023797
50
BODY-MUFFLER
530023794
51
CLAMP
530023787
52
SCREW
530015235
53
CHAIN REPAIR KIT
530052073
54
SHORT-CIRCUIT LEAD
530039116
55
SPARK PLUG
530030005
56
CYLINDER
530012172
57
SCREW
530015239
58
CHAIN BRAKE
530069559
530031146
WRENCH
530031146
530081677
OPERATORS MANUAL
530081677
