Spare parts
>
Husqvarna
>
CHAIN SAWS
>
23 COMPACT 23 COMPACT, 1993-01
>
PRODUCT COMPLETE
Back to
23 COMPACT
23 COMPACT, 1993-01
PRODUCT COMPLETE
23 COMPACT
23 COMPACT, 1993-01

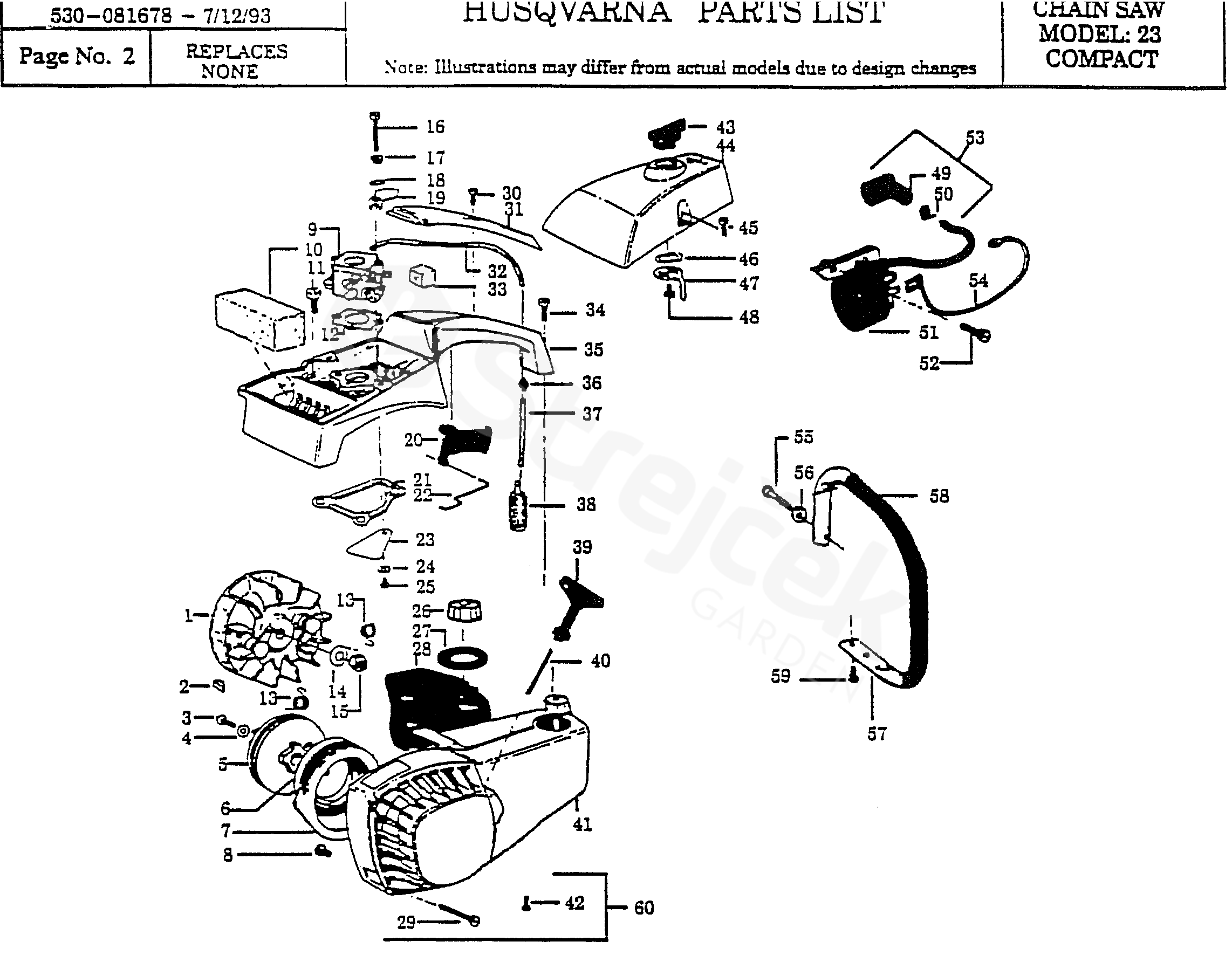

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
23 COMPACT, 1993-01
1
FLYWHEEL
530039111
2
KEY
530015126
3
SCREW
530015036
4
WASHER
530015123
5
STARTER PULLEY
530069288
6
SPRING
530042023
7
AIR INTAKE
530025487
8
SCREW
530001726
9
CARBURETTOR
530035181
10
AIR FILTER
530023791
11
SCREW
530015242
12
GASKET
530019045
13
SPRING
530023817
14
PODLOŽKA
530015127
15
NUT
530626605
16
SCREW
530015245
17
SPACER
530023865
18
SPRING
530015254
19
CHOKE FLAP
530023805
20
THROTTLE TRIGGER
530024803
21
GASKET
530019118
22
THROTTLE LINK
530026606
23
REED
530023366
24
WASHER
530023367
25
SCREW
530015241
26
HUB CAP
530010729
27
SEAL
530019093
28
TANK
530010775
29
SCREW
530015649
30
SCREW
530015247
31
COVER
530024967
32
HOSE
530021025
33
SEALING
530023373
34
SCREW
530015141
35
HANDLE
530036950
36
NIPPLE
530023877
37
KIT
530069216
38
FILTER
530014362
39
STARTER HANDLE
530026735
40
STARTER ROPE
530069232
41
COVER
530069281
42
SCREW
530015650
43
CHOKE CONTROL
530023807
45
SCREW
530015168
46
PODLOŽKA Washer - Wave
530015147
47
LEVER-CHOKE
530023806
48
SCREW
530015407
49
SPARK PLUG CONNECTION
530003934
50
CONNECTOR
530003933
51
IGNITION MODULE
530069202
52
SCREW
530015128
53
CABLE
530039082
54
SHORT-CIRCUIT LEAD
530039116
55
SCREW
530015037
56
WASHER
530015151
57
HANDLE
530010991
58
COVERING
530027847
59
SCREW
530015507
60
SCREW SET
530069286
