STIGA
>
Snowthrowers
>

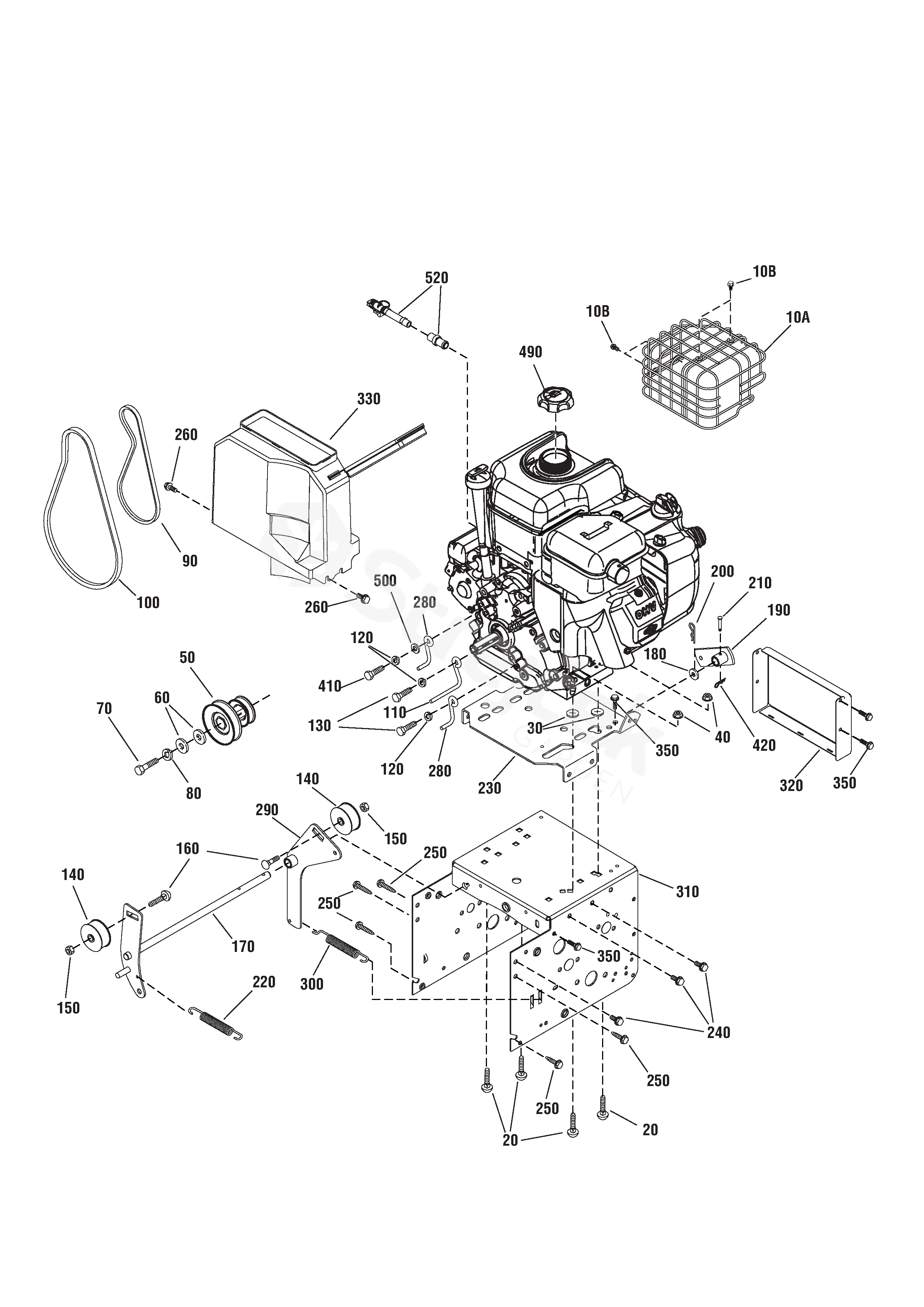

1171 HST 1171 HST (2013)
>
Engine, belts
Back to
1171 HST
1171 HST (2013)
Engine, belts
1171 HST
1171 HST (2013)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
1171 HST (2013)
10
Screw
B&S-part
699234
20
Carriage Bolt
1812-1678-01
30
Push Retainer
1812-1681-01
40
Nut
9743-3621-32
50
Engine Pulley
1812-1719-01
60
Washer
9699-0029-02
70
Screw
9987-5232-16
80
Washer
9683-0035-02
90
Belt
1812-2219-01
100
Belt-Auger
1812-2409-01
110
Belt Guide
1812-2443-01
120
Washer
9683-0030-02
130
Screw
L = 19 mm
9987-5119-16
140
Tension Roller
1812-2077-01
150
Nut
9743-3721-32
160
Screw
9899-3732-16
170
Auger idler
1812-1747-01
180
Washer
9699-0038-02
190
Control Arm
1812-2308-01
200
Hair Pin
1812-2490-01
210
Clevis Pin
1812-2407-01
220
Tension Spring
1812-1676-01
230
Engine mount plate
1812-2234-01
240
Screw
1812-2249-01
250
Screw
1812-2141-01
260
Screw
1812-1680-01
280
Belt Stop
1812-2203-01
290
Idler Bracket
1812-1810-01
300
Clutch Spring
1812-1762-01
310
Engine Frame Box
1812-2454-01
320
Back Panel
1812-2455-01
330
Belt cover
1812-2184-01
350
Screw
1812-2250-01
410
Screw
L = 25 mm
9987-5125-16
420
Cotter Pin
1812-2281-01
490
Gas Cap
1812-2362-01
500
Washer
1812-2657-01
520
Hose Assy, Oil Drain
1812-2496-01
