Spare parts > STIGA > Snowthrowers > 928E 928E (1997) > Idler Pulleys
Back to

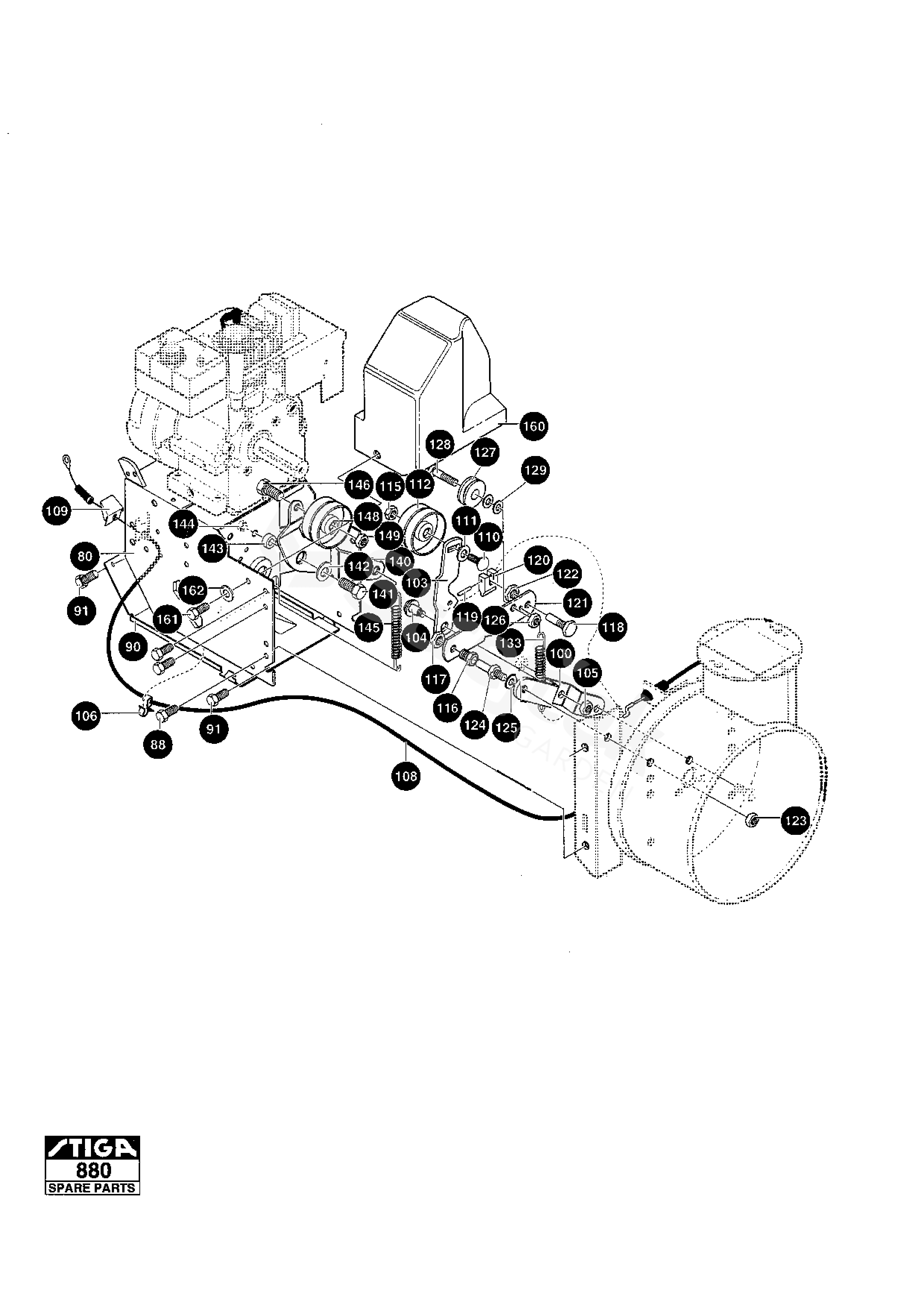

Idler Pulleys
928E 928E (1997)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 928E (1997)
80 Frame 1812-1404-01
88 Screw 1812-0385-01
90 Bottom Panel 1812-1257-01
100 Clutch Plate 1812-1468-01
103 Idler Bracket 1812-1469-01
104 Bolt 1812-1429-01
105 Nut 9795-3731-02
106 Cable clip 1812-1409-01
108 Clutch Control Cable 1812-1466-01
109 Cable Guard Shield 1812-1411-01
110 Screw 9899-3732-16
111 Flat washer 1133-0459-01
112 Tension Roller 1812-0305-01
115 Nut 9743-3721-32
116 Brake Arm Pivot Bolt 1812-1287-01
117 Nut 1812-1344-01
118 Brake Arm Adj.Bolt 1812-1285-01
119 Pin 1812-0401-01
120 Brake Pad 1812-1244-01
121 Bracket 1812-1470-01
122 Nut 9743-5421-32
124 Stud-Brake Arm 1812-1428-01
125 Washer 9683-0035-02
126 Nut 1812-0812-01
127 Pulley 1133-0059-01
128 Shoulder Bolt 1133-0262-01
129 Washer 9699-0092-02
133 Spring 1812-1401-01
140 Idler Lever 1812-1211-01
141 Screw 9988-3619-16
142 Washer 9699-0062-02
143 Bushing 1812-1208-01
144 Nut 9743-3621-32
145 Spring 1812-0329-01
146 Screw 9988-3732-12
160 Belt cover 1812-1228-01
161 Screw 9988-3516-16
162 Washer 9699-0026-02
