928E 928E (1997)

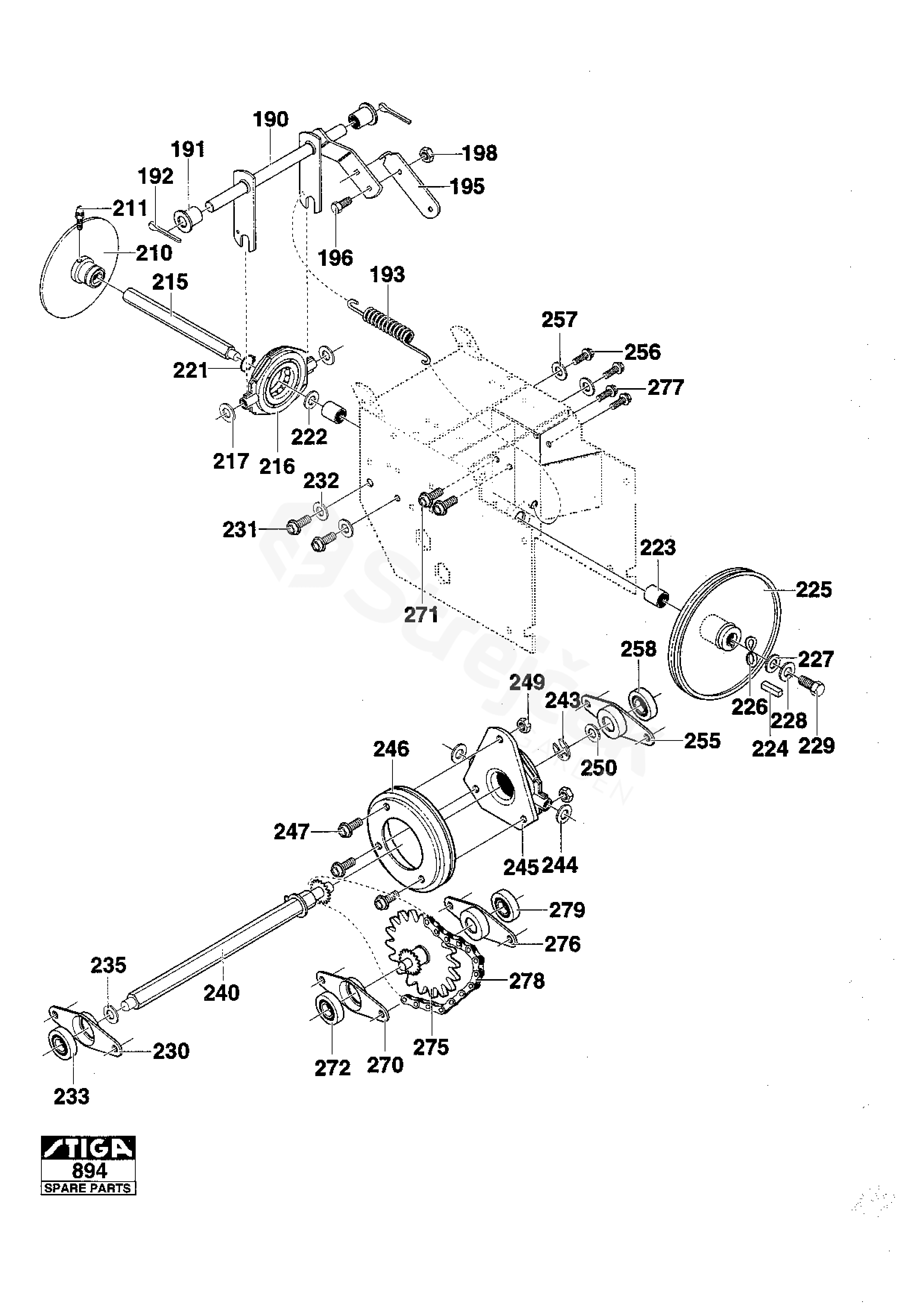

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 928E (1997)

190	Traction shaft	1812-1218-01
191	Bushing	1812-0328-01
192	Split pin	9599-0073-02
193	Spring	1812-0364-01
195	Traction Spring Lever	1812-1217-01
196	Screw	9988-3516-16
198	Nut	1812-0812-01
210	Friction Disc	1812-1269-01
211	Grease zerk	1812-1425-01
215	Traction Hex Shaft	1812-1262-01
216	Bearing	1812-0450-01
217	Washer	9699-0038-02
221	Retaining ring	1812-0402-01
222	Washer	1812-1238-01
223	Ball Bearing	1812-1383-01
224	Square Key	1812-1239-01
225	Traction Pulley	1812-1236-01
226	Wave Washer	1812-1237-01
227	Flat washer	1812-1190-01
228	Washer	9683-0025-02
229	Screw	9988-3519-16
230	Bearing Retainer	1812-1200-01
231	Screw	1812-0385-01
232	Washer	9683-0030-02
233	Ball Bearing	1812-1207-01
235	Washer	1812-1204-01
240	Hex Shaft	1812-1312-01
243	Retainer ring	1812-1164-01
244	Washer	9699-0038-02
245	Trunion Bearing	1812-1313-01
246	Friction Disc	1812-9002-01
247	Screw	9988-3516-16
249	Nut	9795-3531-02
250	Washer	1812-1204-01
255	Bearing Retainer	1812-1200-01
256	Screw	1812-0385-01
257	Washer	9683-0030-02
258	Ball Bearing	1812-1207-01
270	Bearing Retainer	1812-1200-01
271	Screw	1812-0385-01
272	Ball Bearing	1812-1207-01
275	Jack Shaft	1812-1256-01
276	Bearing Retainer	1812-1200-01
277	Screw	1812-0385-01
278	Chain Roller	1812-1209-01
279	Ball Bearing	1812-1207-01
