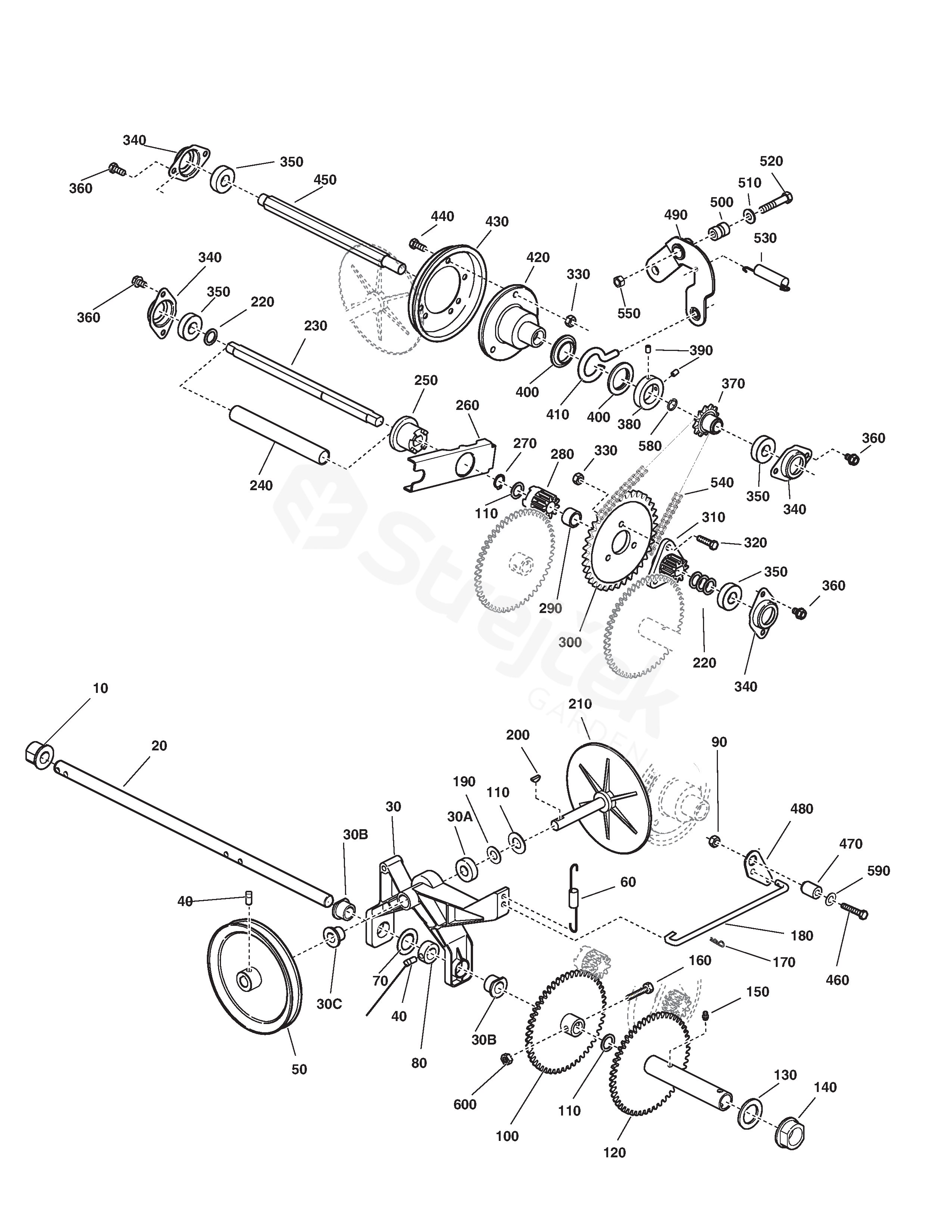

1581 PRO 1581 PRO (2014)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 1581 PRO (2014)

10	Bushing	1812-2832-01
20	Axle	1812-2901-01
30	Ball Bearing	1812-2828-01
40	Screw	1812-2251-01
50	Pulley	1812-2848-01
60	Spring	1812-2873-01
80	Collar	1812-2879-01
90	Nut	1812-2990-01
100	Gear & Hub Assy, Rh	1812-2900-01
110	Washer	9699-0029-02
120	Gear & Hub Asmy-W/Bus	1812-2881-01
130	S.P.	1812-3122-01
140	Bushing	1812-2867-01
150	Zerk - Straight 1/4	1812-3022-01
160	Screw	1812-3013-01
170	Pin	1812-2869-01
180	Rod	1812-2875-01
190	Washer	1812-2965-01
200	Key	1812-2274-01
210	Disc, Drive, W/ Spind	1812-2864-01
230	Jackshaft-Double D 12	1812-2862-01
240	Spring	1812-2866-01
250	Clutch-Sliding 1.5Od	1812-2861-01
260	Arm	1812-2865-01
270	Ring-Ret Ext # 74 0.7	1812-2999-01
280	Gear-Stationary Clut	1812-2860-01
290	Spacer	1812-2851-01
300	Sprocket	1812-2841-01
310	Gear	1812-2859-01
320	Screw	1812-2956-01
330	Nut	1812-2988-01
340	Bearing Retainer	1812-2843-01
350	Ball Bearing	1812-2373-01
360	Screw	1812-2641-01
370	Sprocket	1812-2876-01
380	Collar	1812-2842-01
390	Screw	1812-2870-01
400	Collar	1812-2850-01
410	Pin	1812-2835-01
420	Hub	1812-2831-01
430	Friction Disc	1812-2872-01
440	Screw	1812-2955-01
450	Shaft	1812-2898-01
460	Screw	1812-2897-01
470	Bushing	1812-2833-01
480	Bellcrank, Black	1812-2854-01
490	Shift arm	1812-2846-01
500	Bushing	1812-2834-01
510	Washer	9699-0026-02
520	Screw	1812-2964-01
530	Spring	1812-2844-01
540	Chain Roller	1812-2840-01
550	Nut	1812-2991-01
580	Retaining ring	1812-2899-01
590	Washer	1812-2967-01
600	Nut	1812-3054-01
