Spare parts > STIGA > Snowthrowers > SNOW BLIZZARD SNOW BLIZZARD (2016) > Drive
Back to

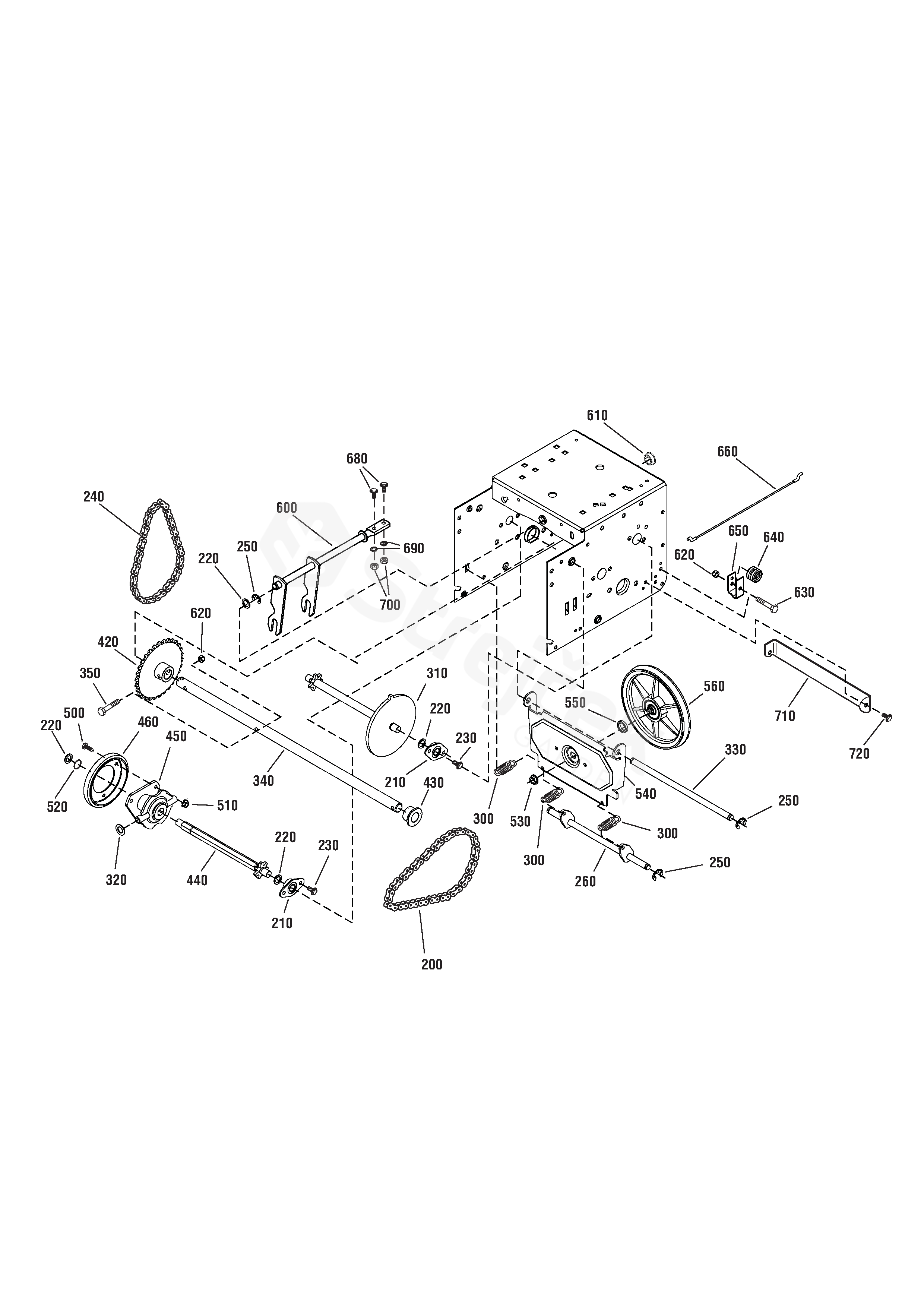

Drive
SNOW BLIZZARD SNOW BLIZZARD (2016)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SNOW BLIZZARD (2016)
200 Chain 1812-1686-01
210 Bearing & Retainer 1812-1178-01
220 Washer 1812-1204-01
230 Screw 1812-2249-01
240 Chain 1812-1688-01
250 Retainer ring 1812-1672-01
260 Spring Link 1812-2076-01
300 Spring 1812-2410-01
310 Intermed. Sprocket 1812-1751-01
320 Washer 9699-0038-02
330 Axle-Swing Plate 1812-1713-01
340 Axle Shaft 1812-1863-01
350 Screw 9988-3545-12
420 Sprocket & Hub 1812-1712-01
430 Axle Bearing 1812-1724-01
440 Hex Shaft 1812-1750-01
450 Trunion Bearing 1812-1313-01
460 Friction Wheel 1812-9028-01
500 Screw 9988-3516-16
510 Nut 9795-3531-02
520 Retext Ring 1812-2380-01
530 Nut 1812-1674-01
540 Swing Plate 1812-1701-01
550 Spacer 1812-1739-01
560 Friction Pulley 1812-1725-01
600 Yoke Rod 1812-1720-01
610 Plastic bushing 1812-1219-01
620 Nut 9743-3521-32
630 Screw 9988-3538-12
640 Spool 1812-1205-01
650 Bracket 1812-1702-01
660 Drive Cable-Lower 1812-1727-01
690 Washer 9683-0025-02
710 Support bracket 1812-1999-01
720 Screw 1812-2250-01
