Spare parts > STIGA > Snowthrowers > SNOW BREEZE SNOW BREEZE (2003) > Covers
Back to
Covers
SNOW BREEZE SNOW BREEZE (2003)

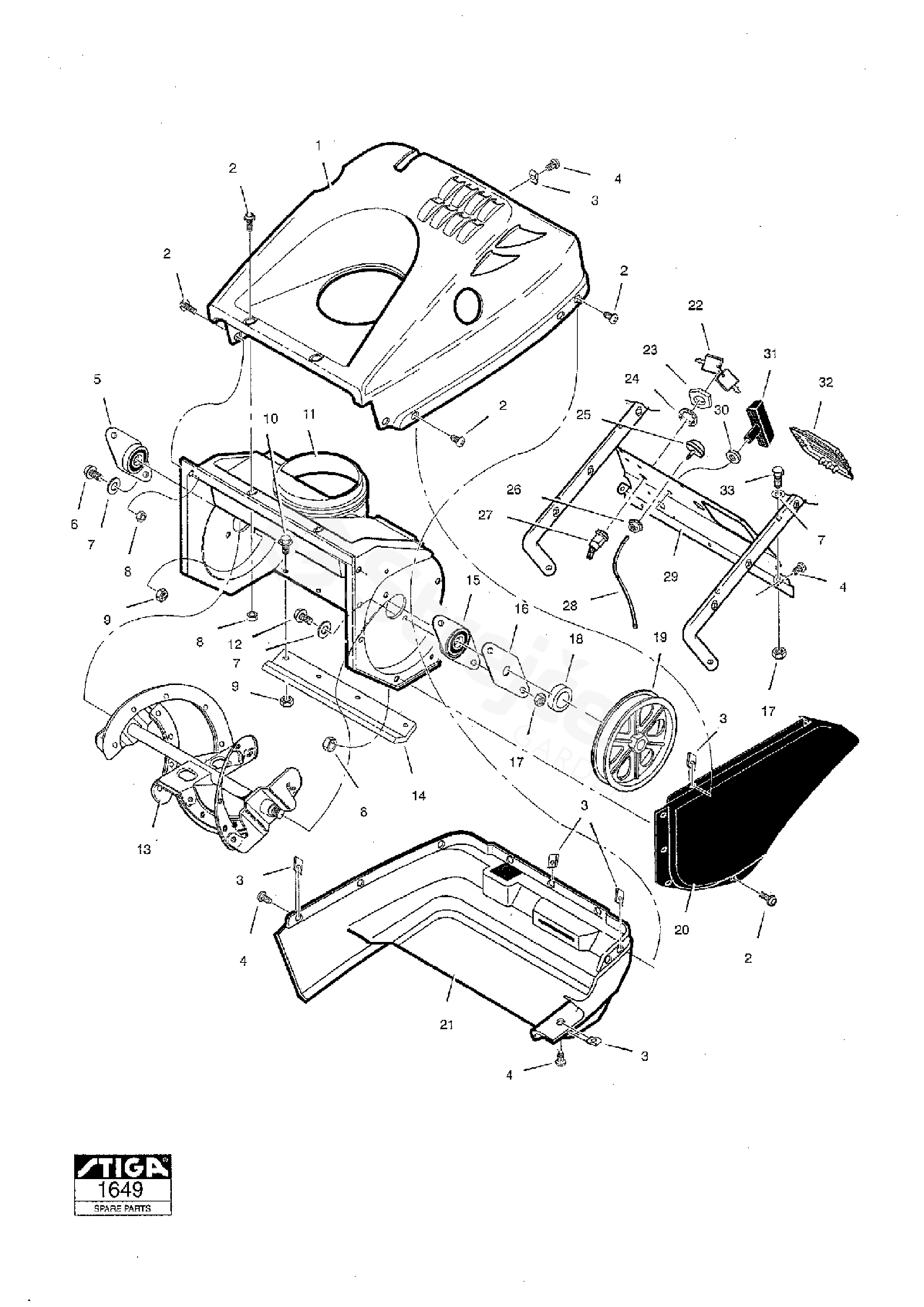

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SNOW BREEZE (2003)
1 Cover-Top 1812-1902-01
2 Bolt 1812-0959-01
3 Nut 1133-1026-01
4 Screw 1812-1887-01
5 Flange Bearing 1133-1019-01
6 Screw 9988-3525-16
7 Washer 9699-0028-02
8 Nut 1812-0630-01
9 Nut 1812-1758-01
10 Screw 9988-3519-16
11 Auger Housing 1812-1503-01
12 Screw 9988-3516-16
13 Auger Assy 1812-1488-01
14 Scraper Blade 1812-1481-01
15 Bearing & Plate 1133-0947-01
16 Bearing Retainer 1133-1000-01
17 Nut 1812-0812-01
18 Spacer 1812-1895-01
19 Pulley 1812-1889-01
20 Belt cover 1812-1502-01
21 Cover-Bottom 1812-1903-01
22 Ignition Key 1134-2848-01
23 Nut 1134-2852-01
24 Washer 1134-2853-01
25 Primer bulb 1812-1905-01
26 Nut 9795-3531-02
27 Ignition Switch 1133-0956-01
28 Primer Hose 1812-1496-01
29 Control Panel 1812-1904-01
30 Grommet & Rope Guide Wash 1133-0962-01
31 Starter Grip 1133-0995-01
32 Access Panel 1812-1898-01
33 Screw 9988-3532-12
